Transmission Front Mount Replacement
Transmission Front Mount ReplacementRemoval Procedure
1. Raise and support the vehicle.
2. Support the transaxle with an appropriate jack.

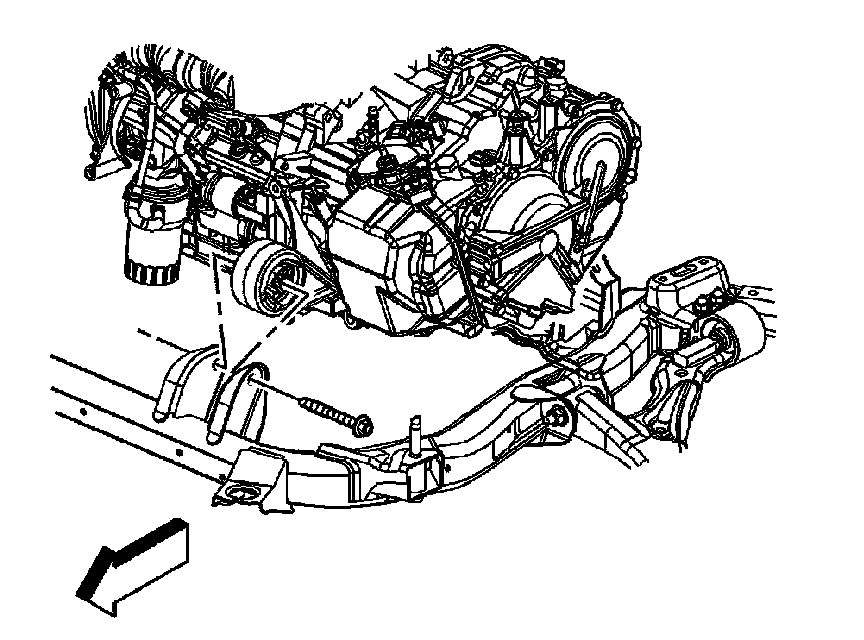

3. Remove the front transaxle mount thru bolt.

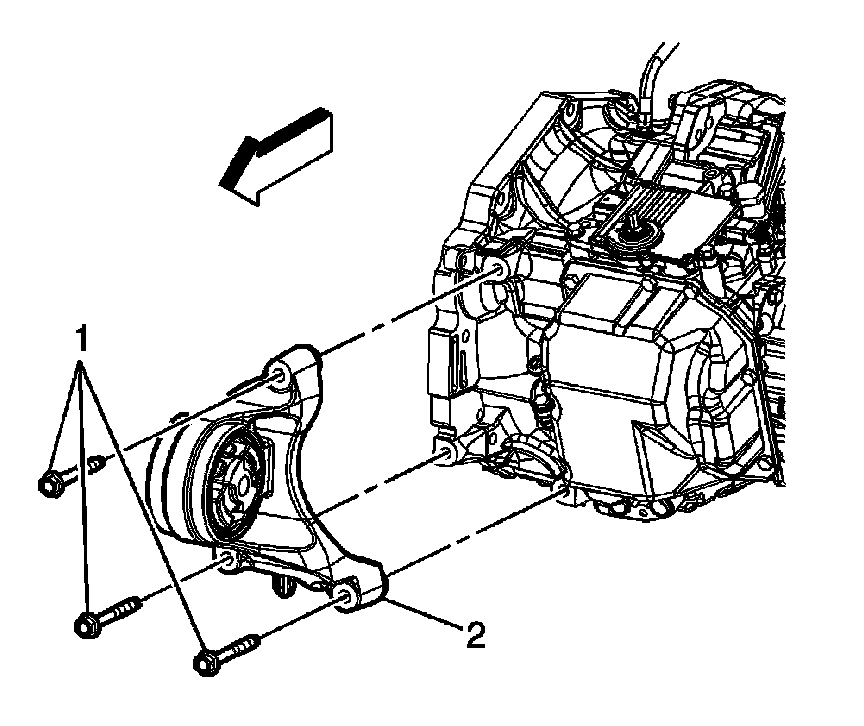

4. Remove the front transaxle mount to transaxle bolts (1).
5. Remove the front transaxle mount (2) from the vehicle.
Installation Procedure
NOTE:
The transaxle bolts must be torqued in a mandatory sequence as shown.
CAUTION:
Refer to [Fastener Notice].

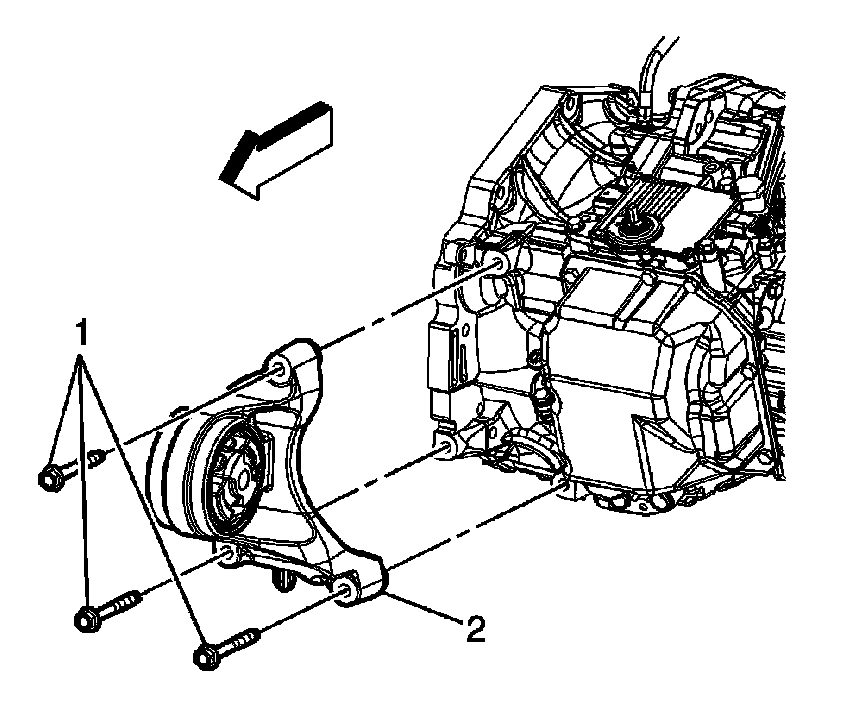

1. Install the front transaxle mount (2) and transaxle bolts (1).
Tightening torque
Tighten the bolts to 90 Nm (66 ft. lbs.).

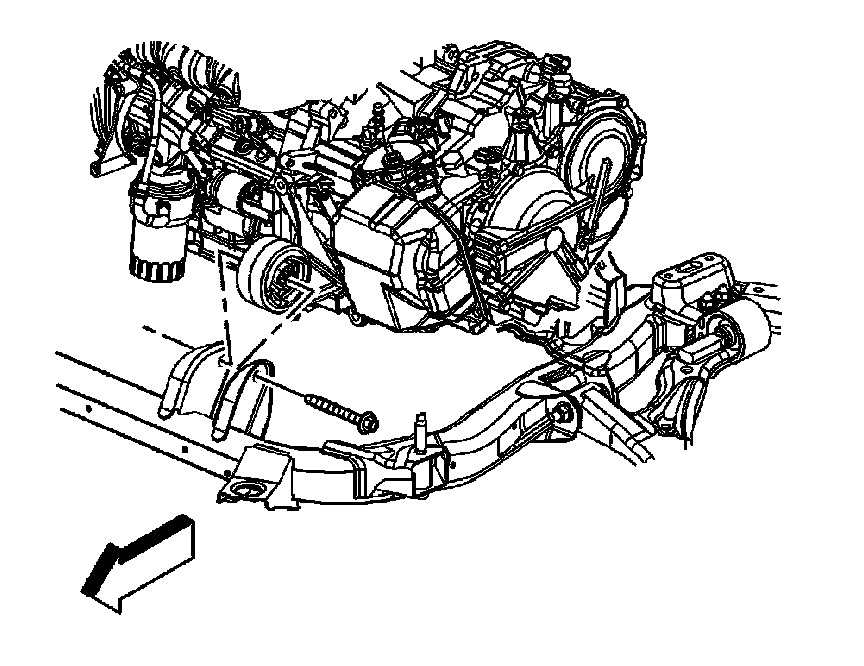

2. Hand tighten the front transaxle mount thru bolt.
NOTE:
The front and rear transmission mounts must be allowed to settle with the thru bolts loosened.
3. Loosen the rear transmount thru bolt.
4. Tighten the transmission mount thru bolts in the following order.
Tightening torque
1. Tighten the rear bolt to 100 Nm (74 ft. lbs.).
2. Tighten the front bolt to 100 Nm (74 ft. lbs.).
5. Lower the vehicle.
