Third Gear Band Servo Piston Disassemble

Third Gear Band Servo Piston Disassemble

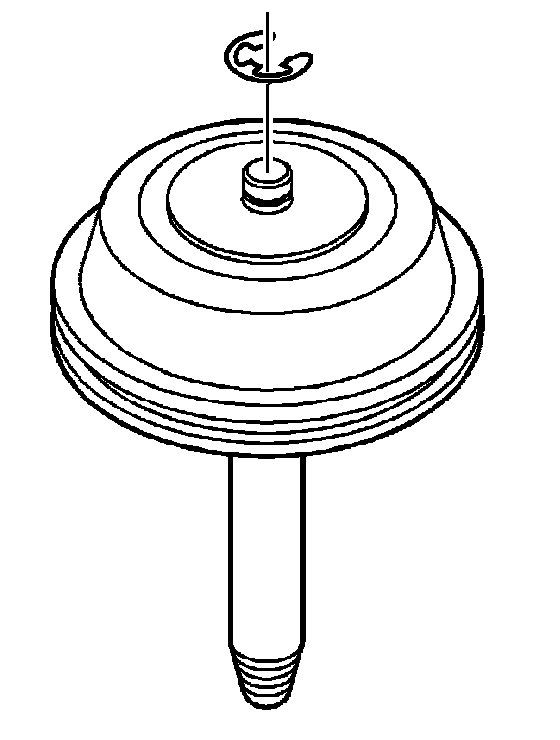

1. Remove the E-clip.

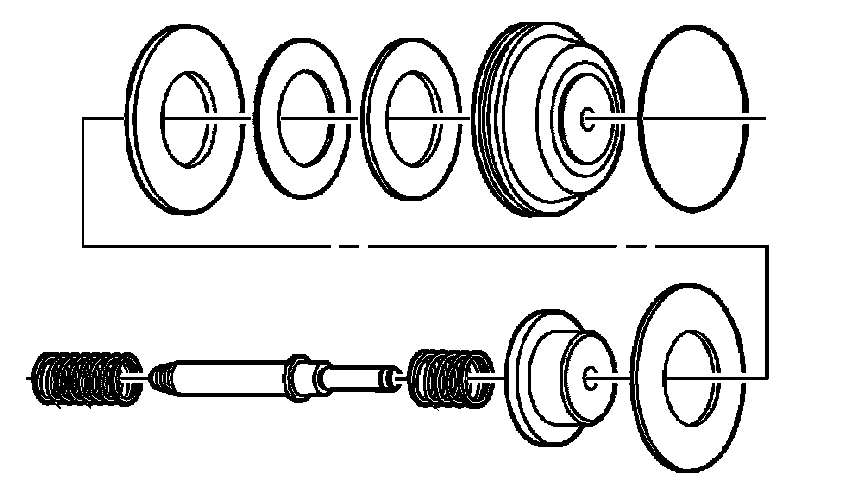

2. Disassemble the third gear band servo piston assembly.

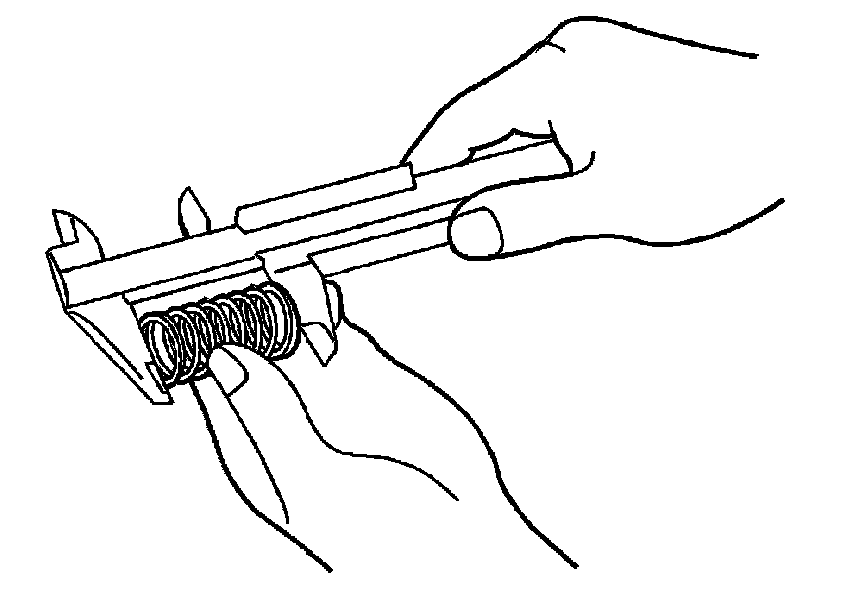

3. Measure the free length and the outer diameter of the outer and inner third gear band servo piston springs.
