Third Gear Band Assembly Removal
Third Gear Band Assembly RemovalSpecial Tool
DT-47599 Anchor Bolt Socket

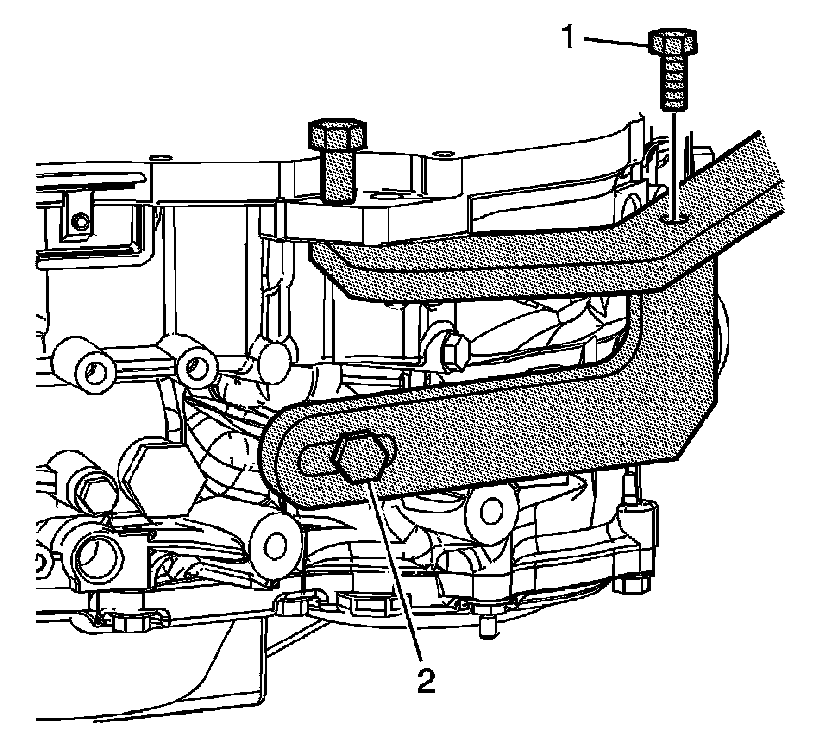

1. Loosen the holding fixture bolt (2) and remove holding fixture bolt (1) to allow access to the third gear anchor bolt.

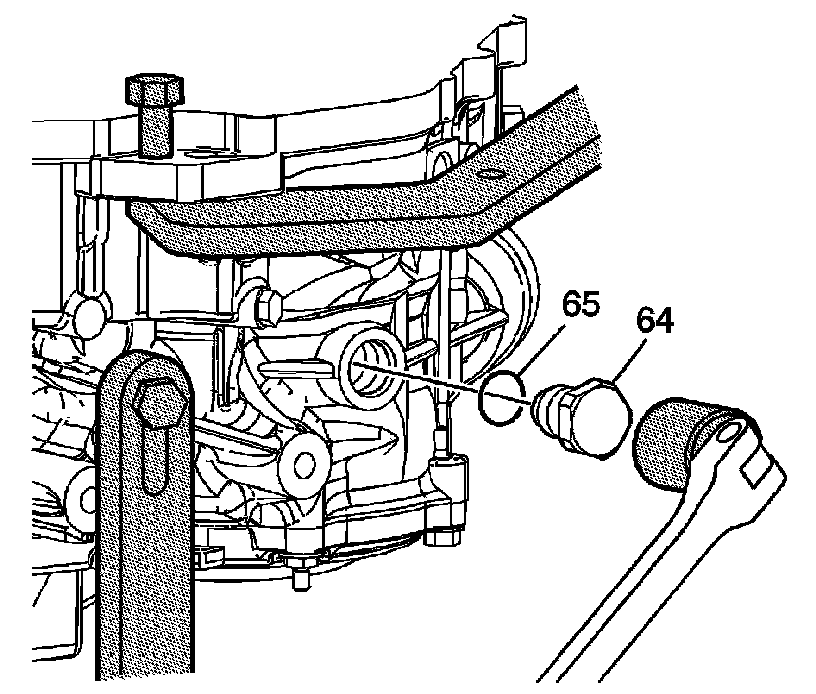

2. Using the DT-47599 remove the third gear anchor bolt (64) with the o-ring seal (65).

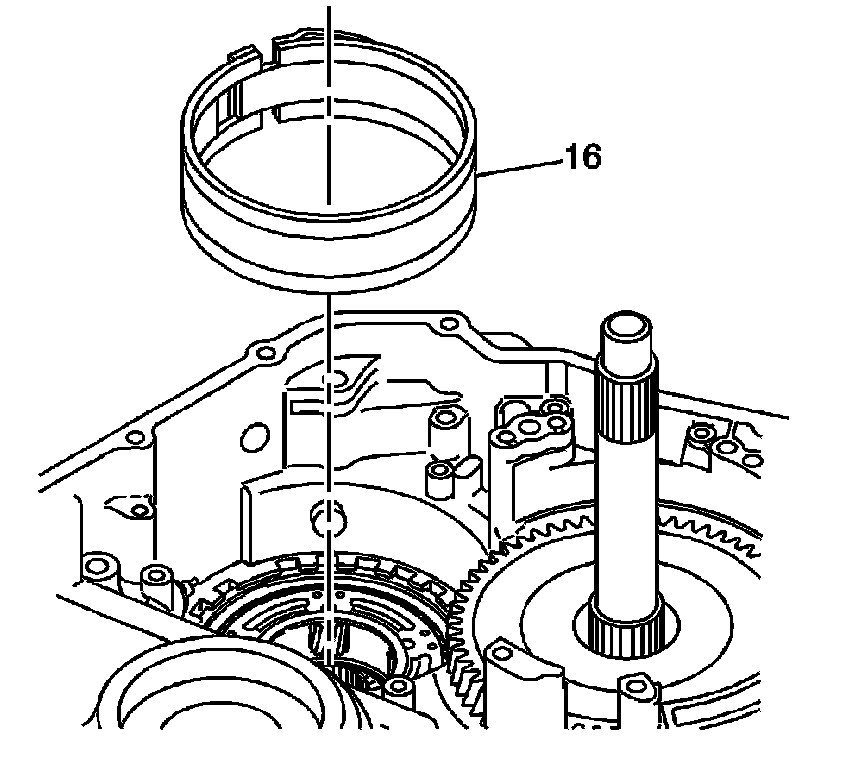

3. Remove the third gear band assembly (16) from the transmission case assembly.
