Fluid Pump Assembly Removal
Fluid Pump Assembly RemovalSpecial Tool
J 45053 Universal Clamp Press
1. Rotate the transmission assembly so the fluid pump is facing up.

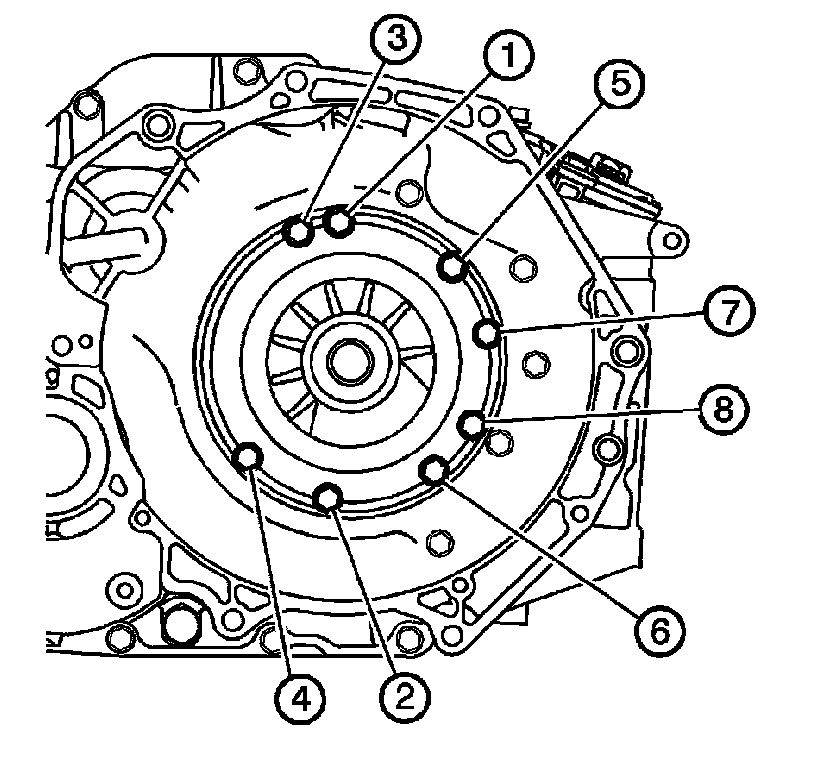

2. Remove the 8 fluid pump bolts.
NOTE:
Do not damage the stator shaft bushing.

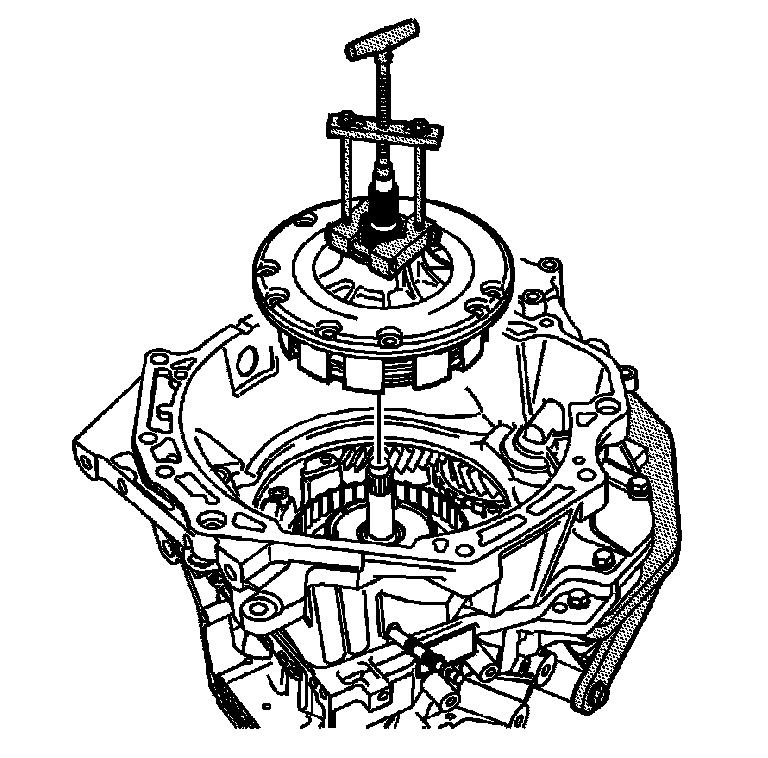

3. Using J 45053, remove the fluid pump assembly from the transmission case.
