Drain Plug Installation

Drain Plug Installation

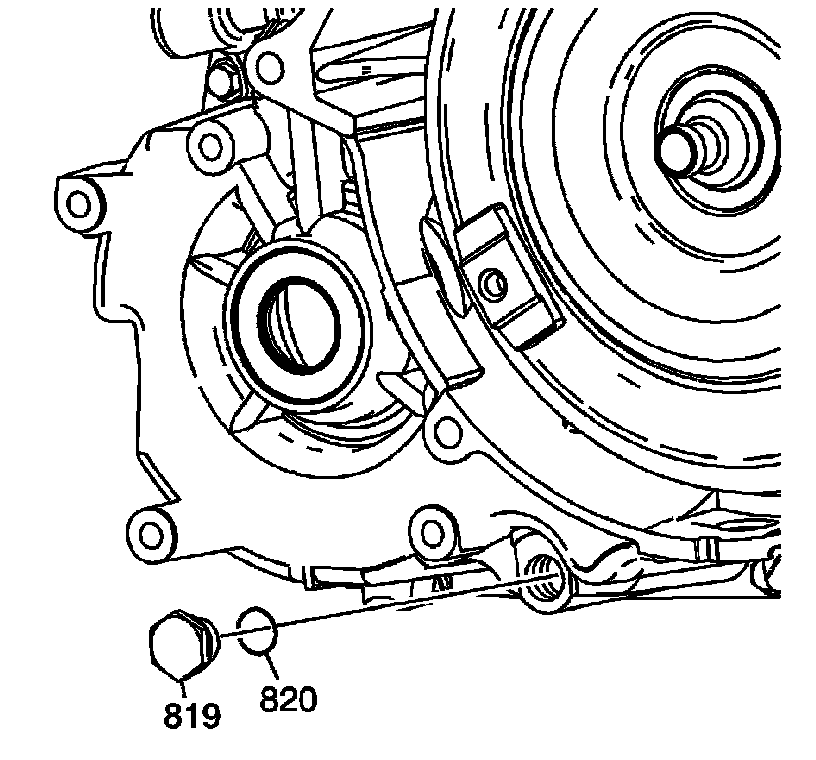

1. Install a new gasket (820) on the drain plug (819).

CAUTION:
Refer to [Fastener Notice].

2. Install the drain plug (819) into the case assembly (17).
Tightening torque
Tighten the drain plug to 39 Nm (29 ft. lbs.).

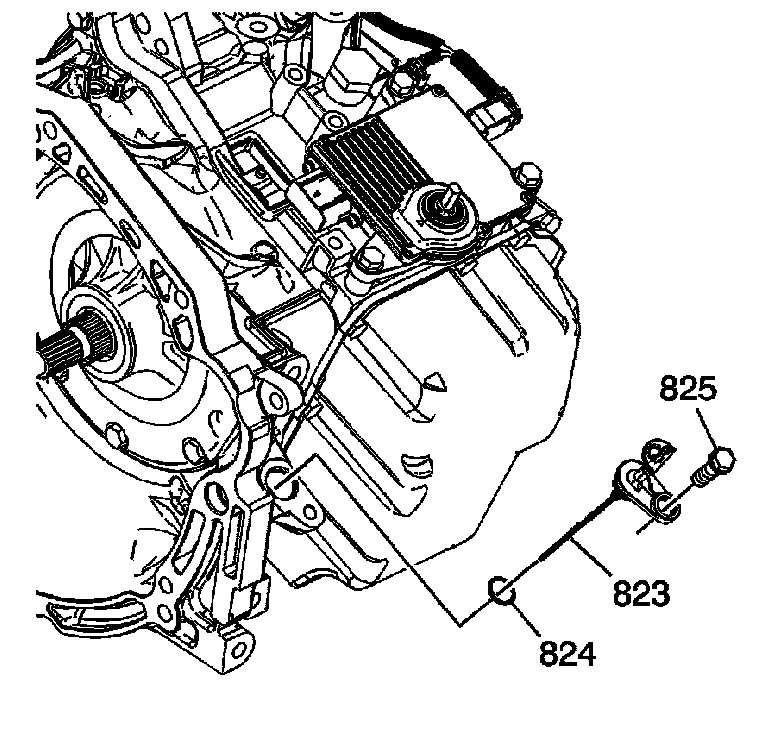

3. Install a new o-ring (824) on the transmission fluid level indicator and lubricate with transmission fluid.
4. Install the transmission fluid level indicator.
5. Install the transmission fluid level indicator bolt.
Tightening torque
Tighten the indicator bolt to 10 Nm (89 in. lbs.).
