Control Valve Body Cover Removal

Control Valve Body Cover Removal

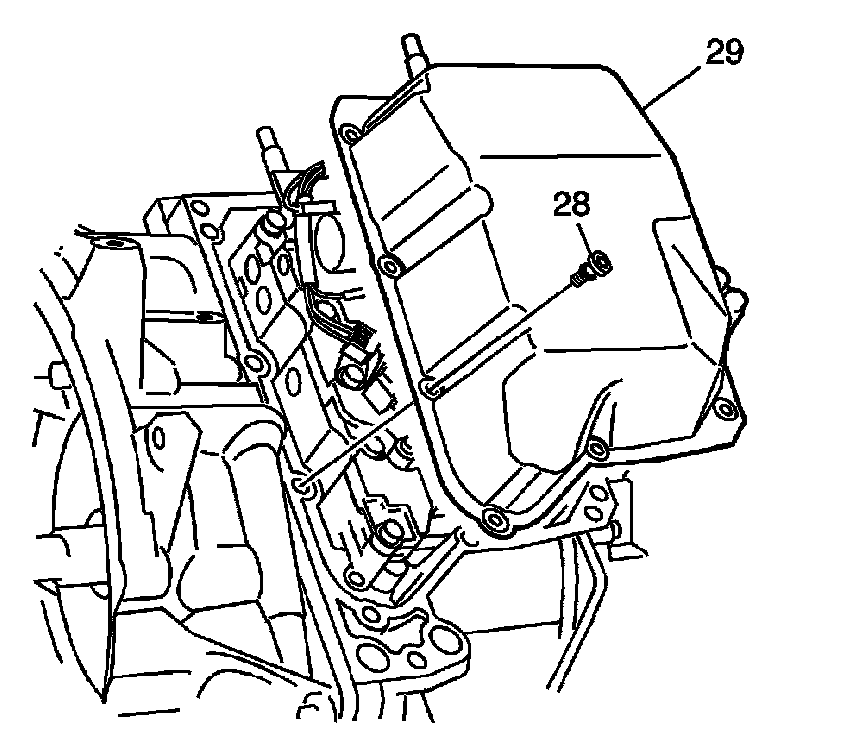

1. Remove the 9 control valve body cover torx bolts (28).
2. Remove the control valve body cover (29). Do not bend the cover flange.
