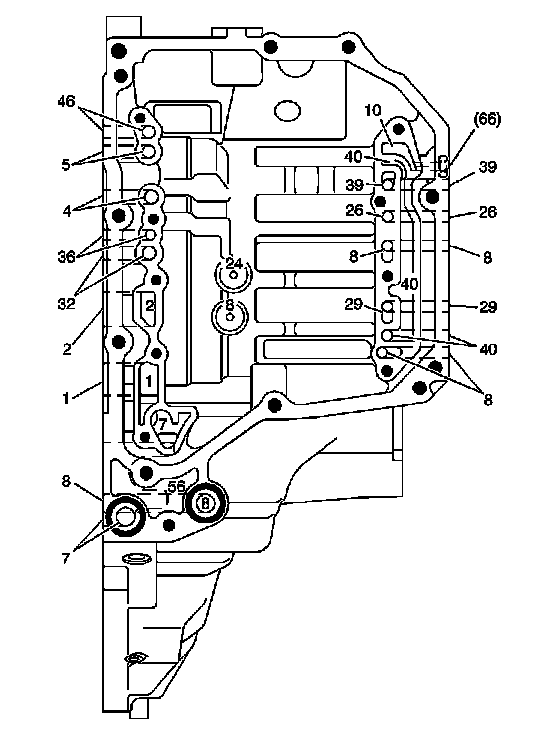

Transmission Case Assembly Fluid Passages (Transmission Control Valve Body Assembly Side)

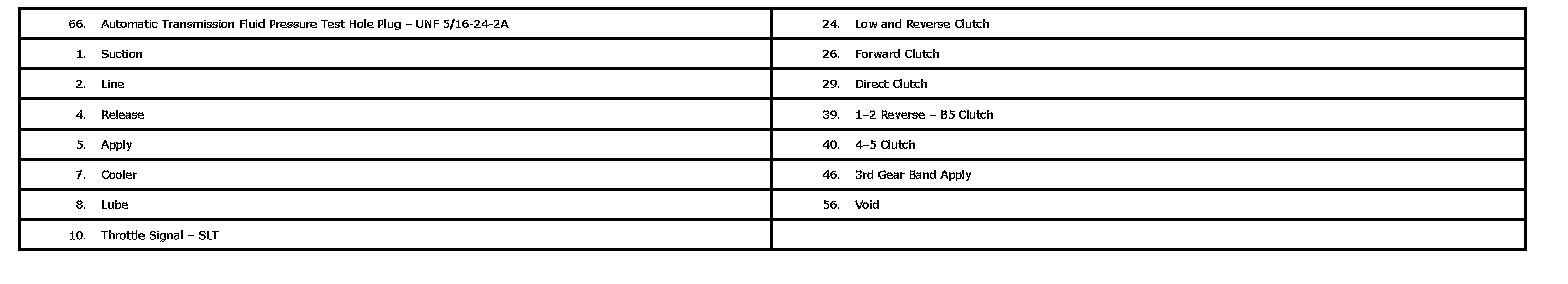

Transmission Case Assembly Fluid Passages (Transmission Control Valve Body Assembly Side)
Transmission Case Assembly Fluid Passages (Transmission Control Valve Body Assembly Side)
