Trailing Arm Bracket Replacement
Trailing Arm Bracket ReplacementRemoval Procedure
1. Raise and support the vehicle.
2. Remove the park brake cable from the trailing arm and from the frame.

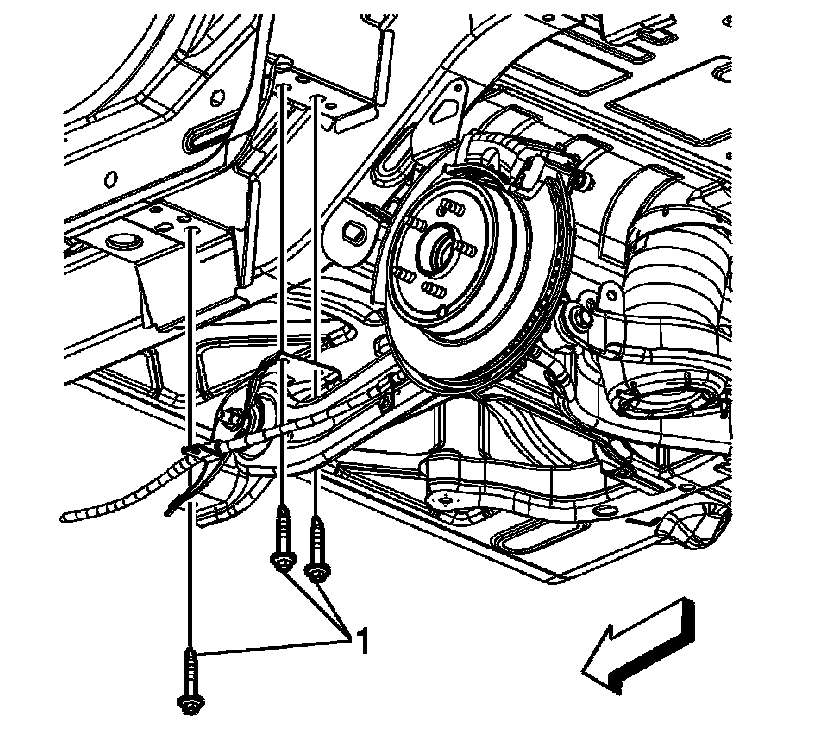

3. Remove the trailing arm bracket to body bolts 1.

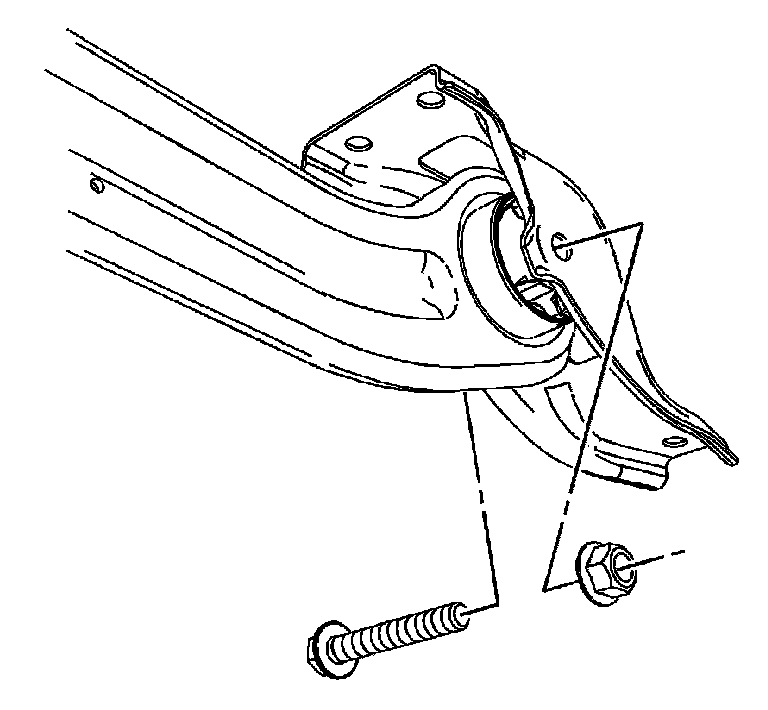

4. Remove the trailing arm bushing to bracket nut and bolt.
5. Remove the trailing arm bracket.
Installation Procedure
1. Position the trailing arm bracket to the trailing arm.

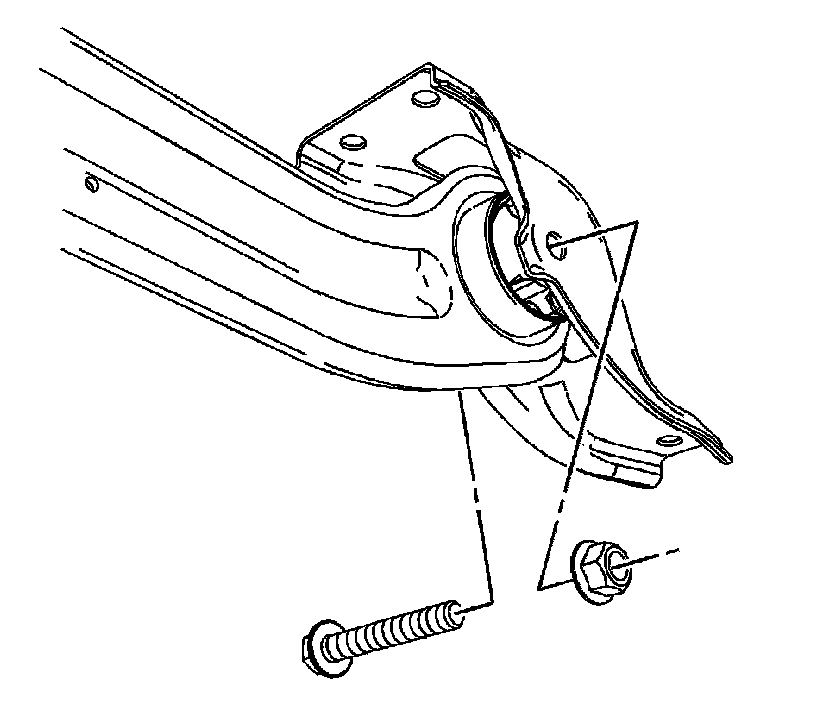

2. Loosely install the trailing arm bushing to bracket nut and bolt.

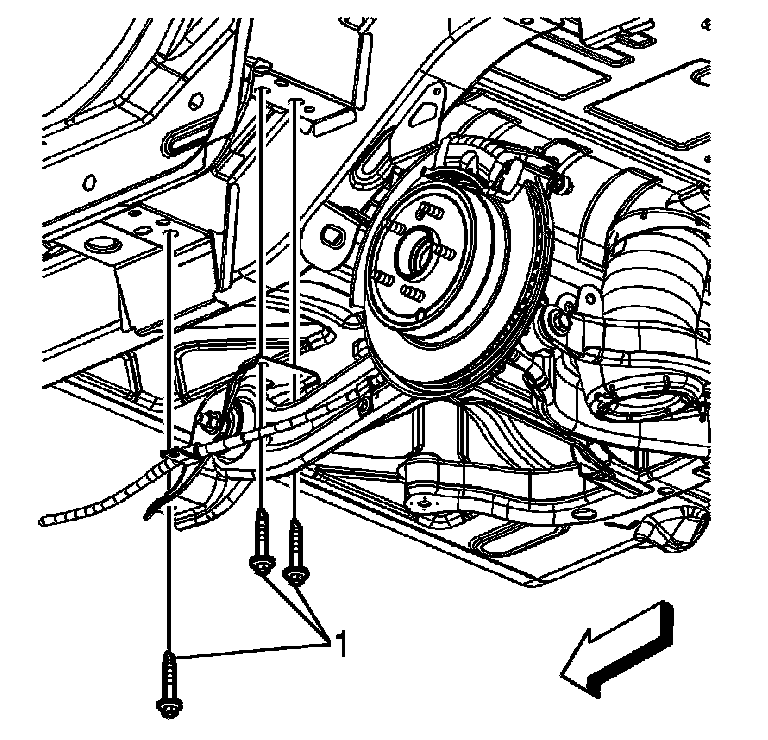

3. Push upward on the trailing arm bracket and loosely install the front bolt 1.
CAUTION:
Refer to [Fastener Notice].
4. Use a drift to align the remaining trailing arm bracket bolts 1.
Tightening torque
Tighten the trailing arm bracket to body bolts to 110 Nm (81 ft. lbs.).
5. Tighten the trailing arm bushing to bracket nut and bolt.
Tightening torque
Tighten the bolt to 160 Nm (118 ft. lbs.).
6. Install the park brake cable on the trailing arm and on the frame.
7. Remove the support and lower the vehicle.
