Control Arm Bushing: Service and Repair

Front Lower Control Arm Bushing Replacement (Rear Bushing)

Removal Procedure
1. Raise and support the vehicle.
2. Remove the front tire and wheel assembly.
3. Remove the lower control arm.

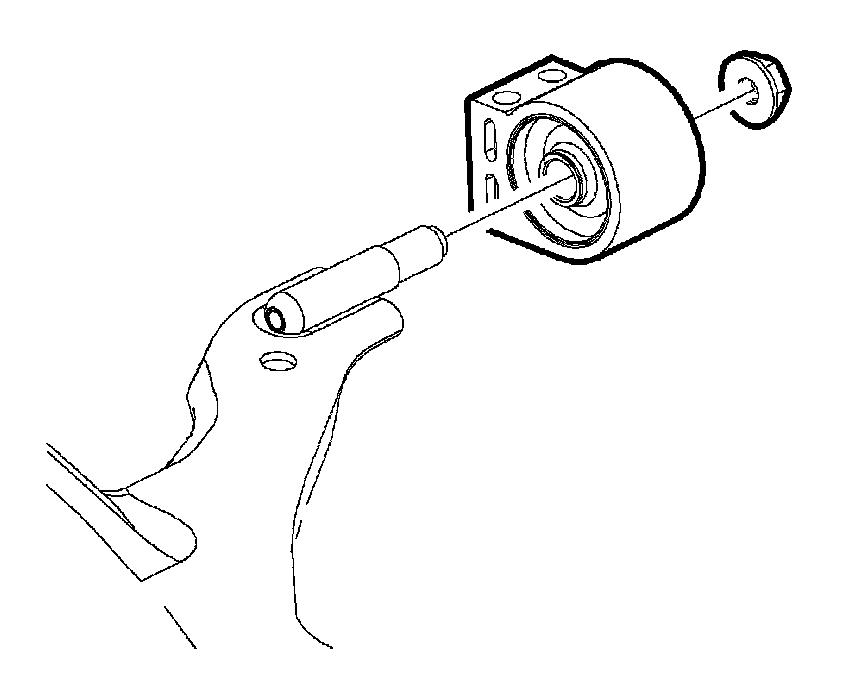

4. Remove the rear bushing nut.
5. Remove the rear bushing.

Installation Procedure





CAUTION:
Refer to [Fastener Notice].

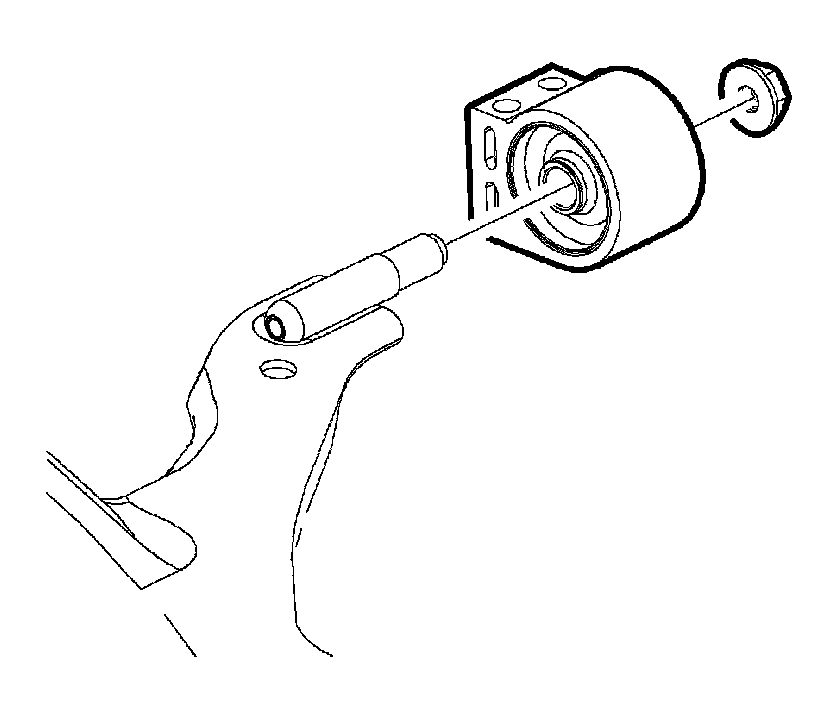

1. Install the rear bushing to the lower control arm.
Tightening torque
Tighten the nut to 150 Nm (11 ft. lbs.).
2. Install the lower control arm.
3. Install the front tire and wheel assembly.
4. Lower the vehicle.
