Seat Belt Buckle: Service and Repair

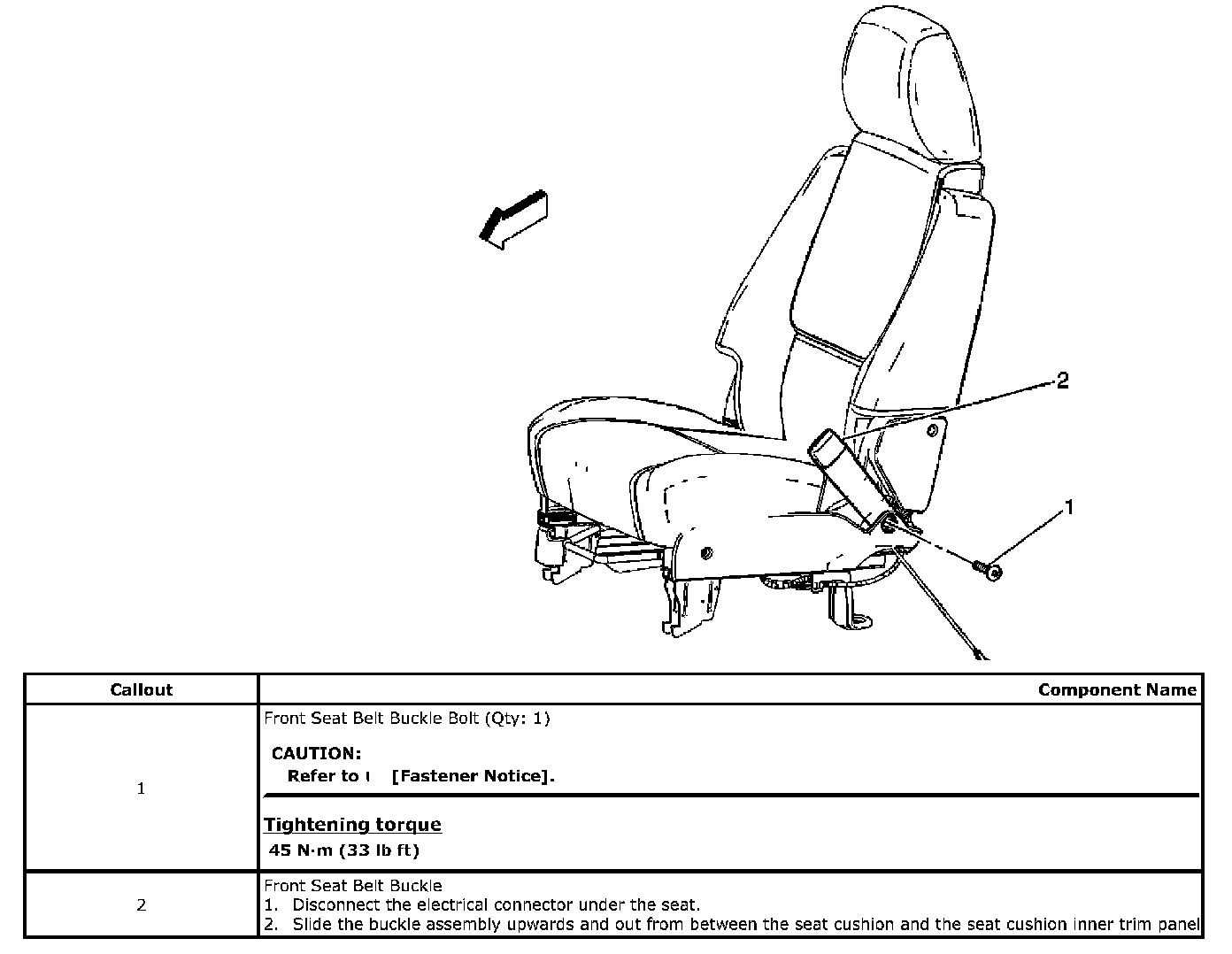

Front Seat Belt Buckle Replacement:

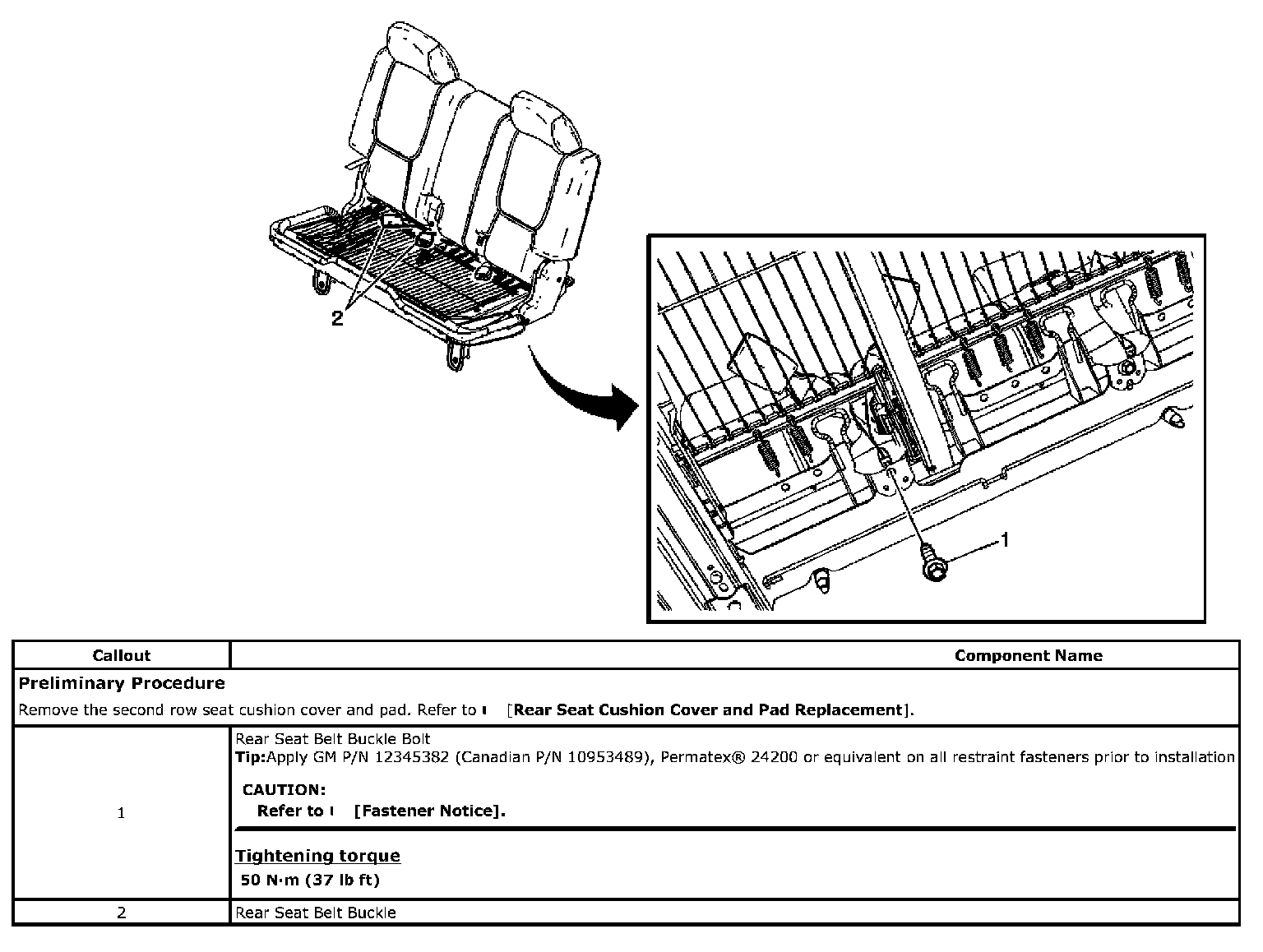

Rear Seat Center Belt Buckle Replacement:

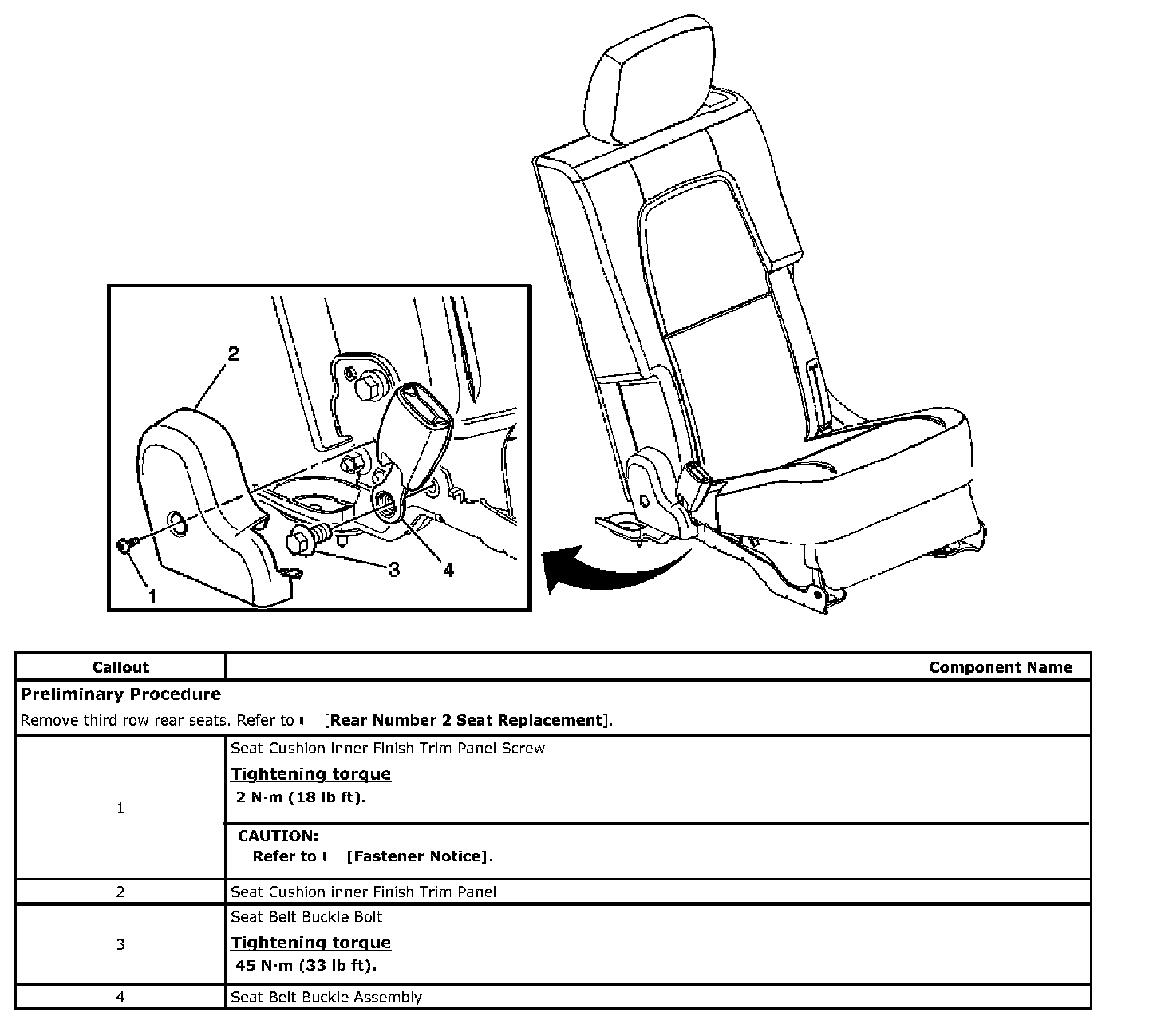

Seat Belt Buckle Replacement - No. 2 Rear:
