Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Front)

Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Front)

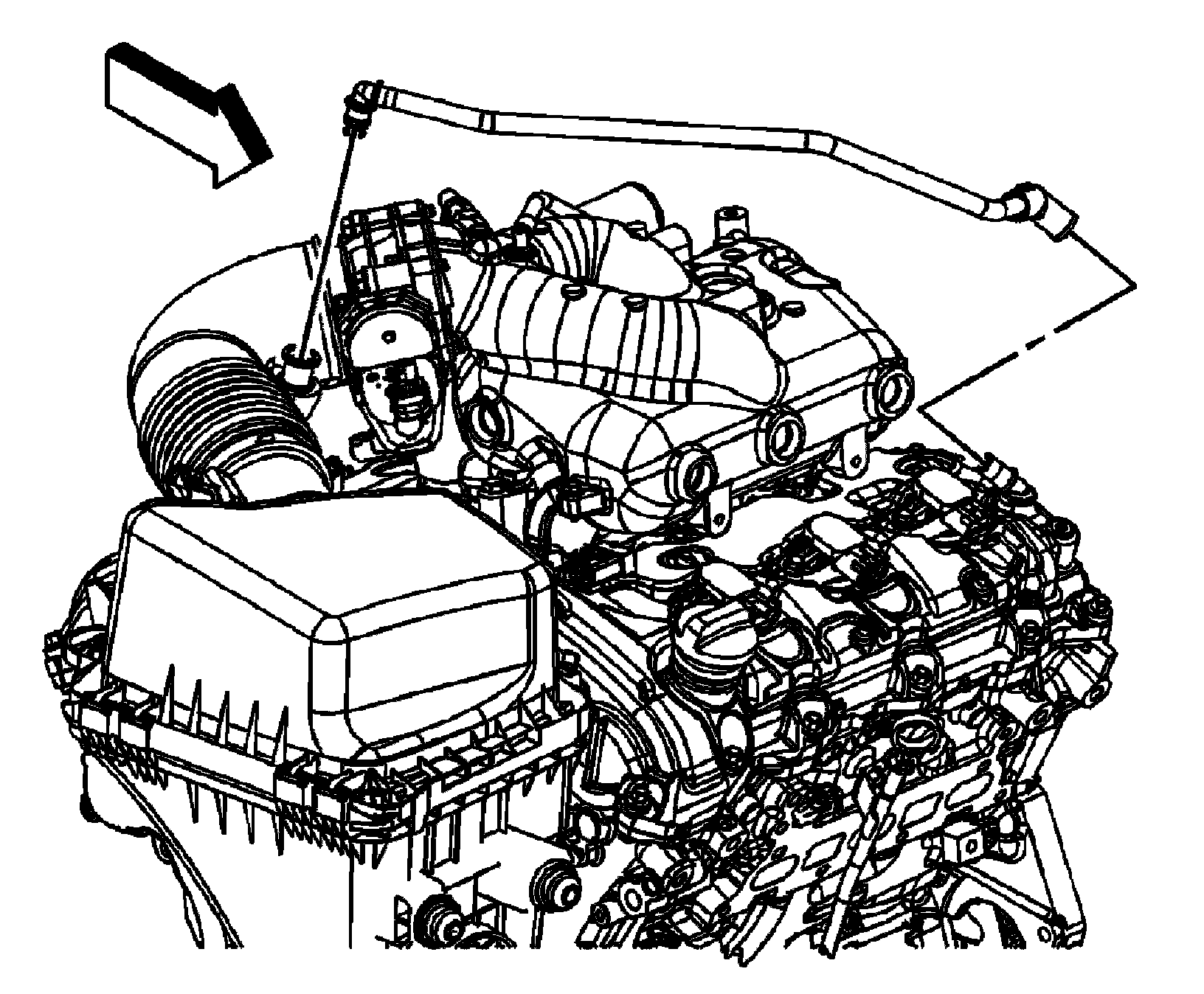

Removal Procedure





1. Remove the engine cover.
2. Disconnect the positive crankcase ventilation (PCV) fresh air pipe from the air cleaner duct.
3. Disconnect the PCV air pipe from the valve cover.

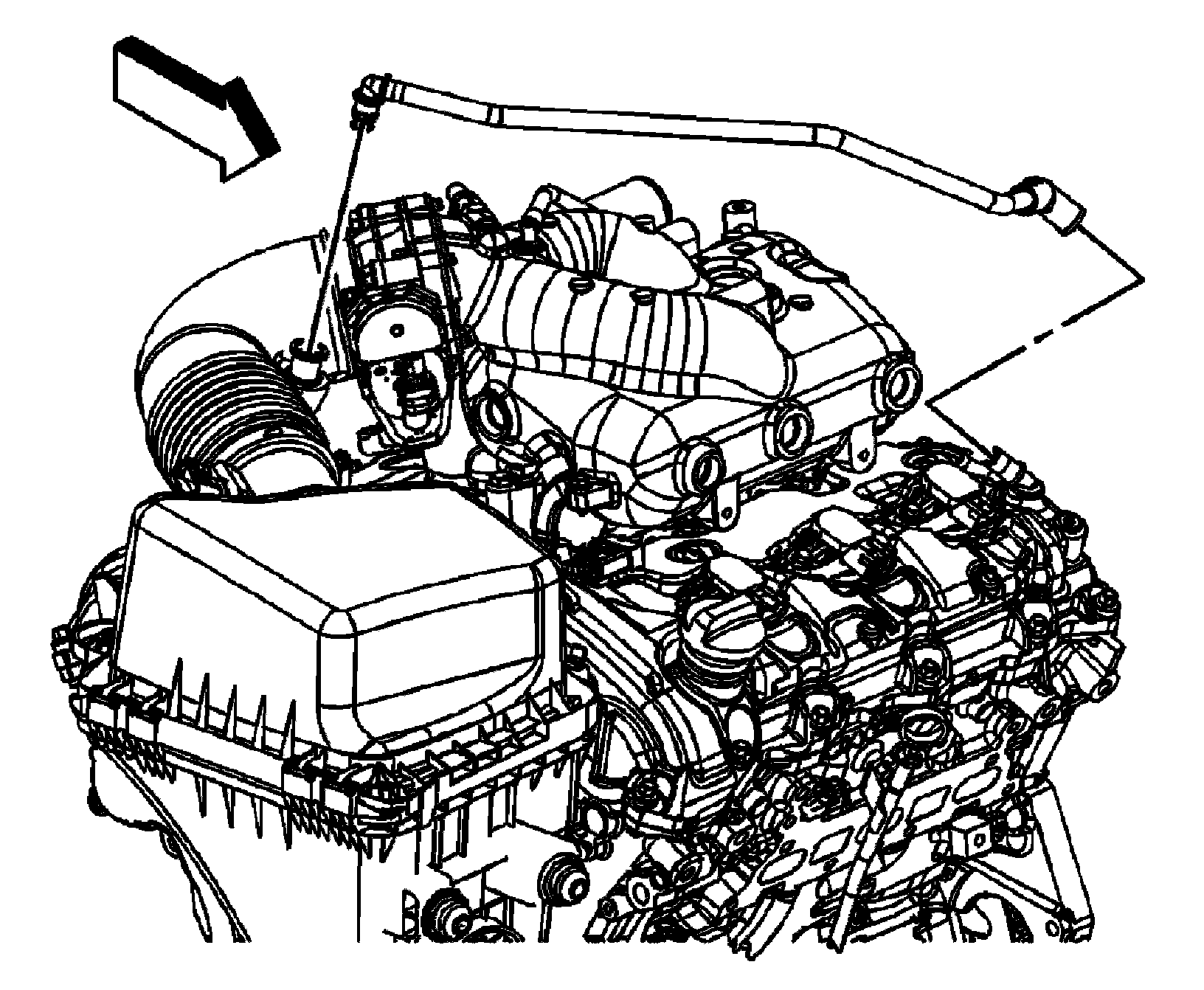

Installation Procedure





1. Connect the PCV air pipe to the valve cover valve.
2. Connect the PCV fresh air pipe to the air cleaner duct.
3. Install the engine cover.
