Home >> Suzuki Truck >> 2008 >> XL-7 2WD V6-3.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

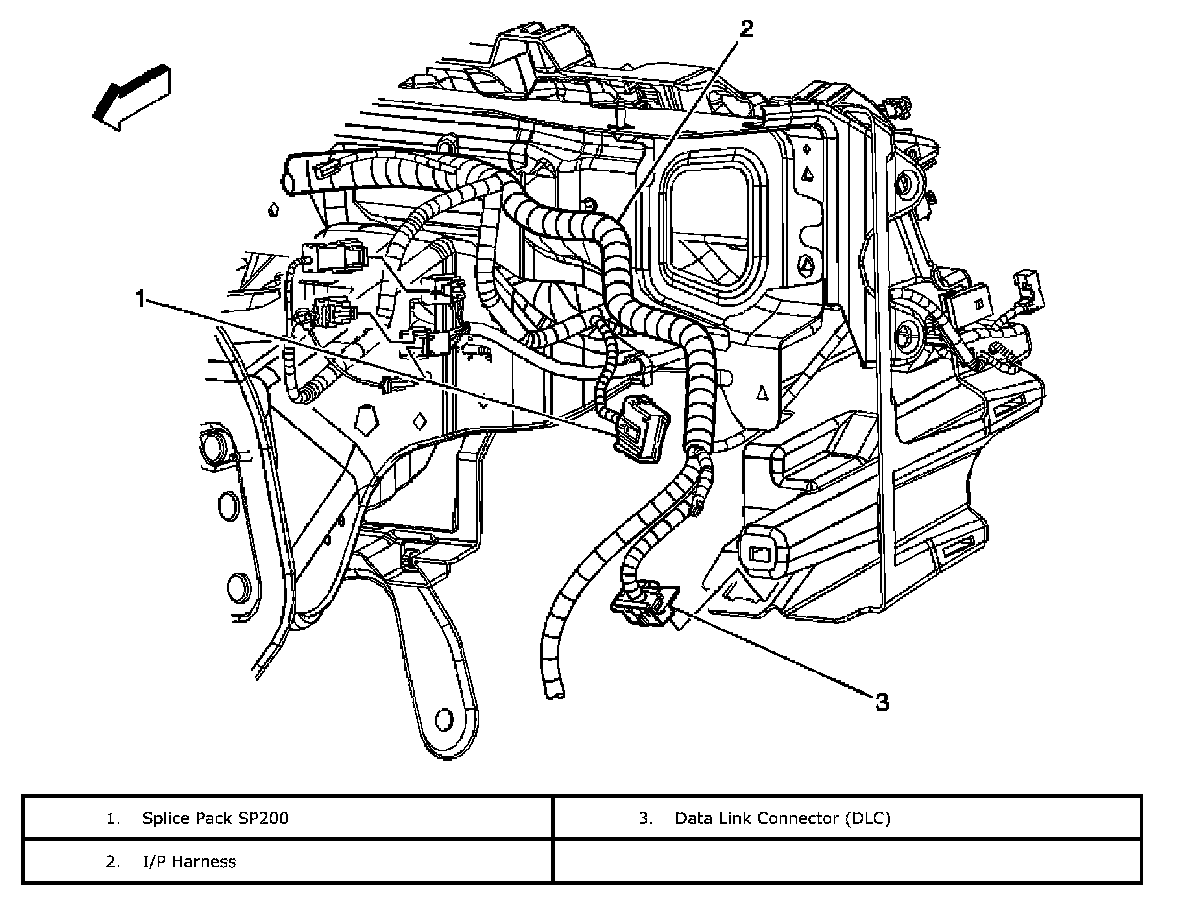

Data Communication Component Views - Left Side of the I/P:
