Suzuki Truck
>>
2008
>>
XL-7 2WD V6-3.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Schematics
>>

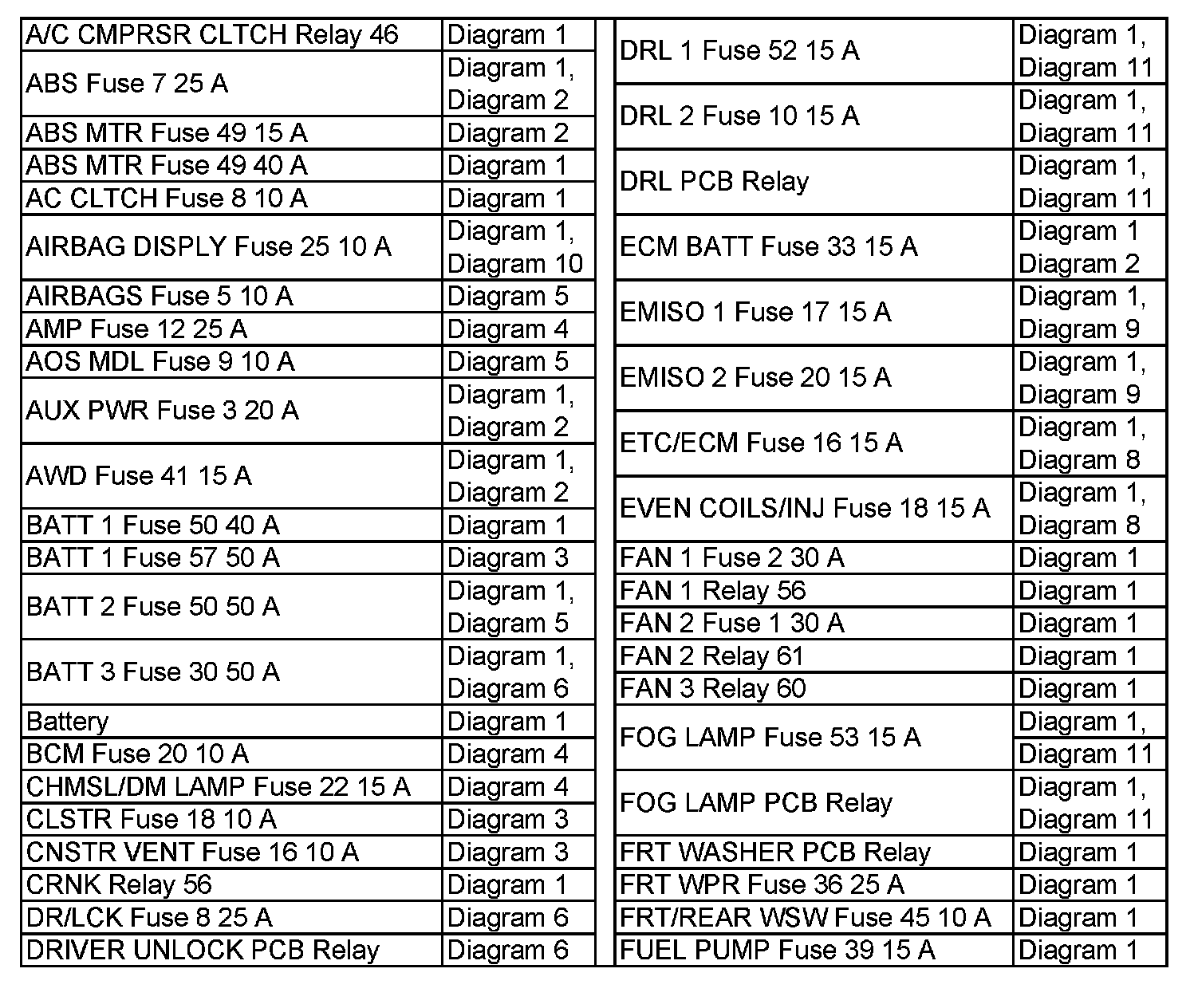

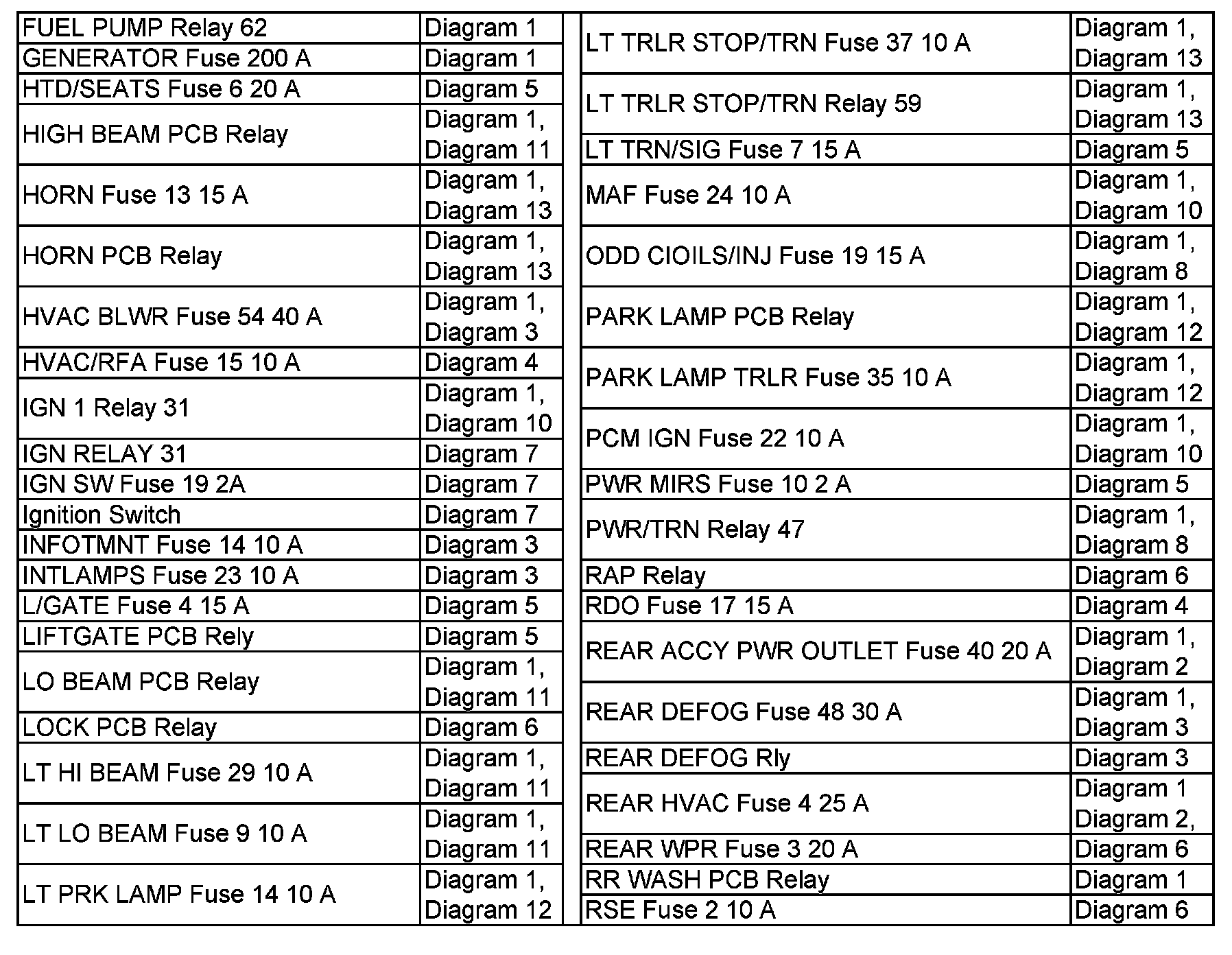

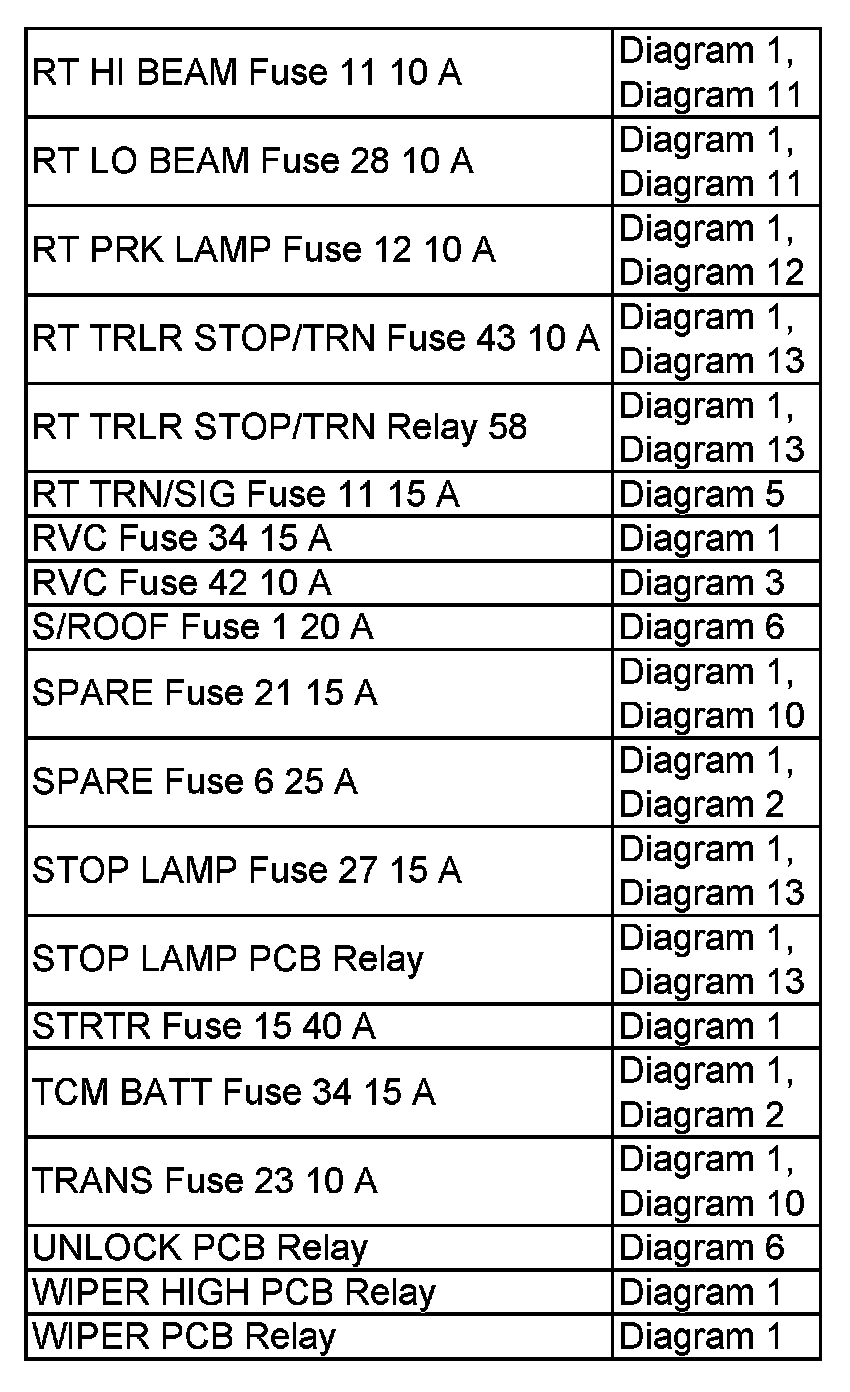

Wiring Diagram Index
Wiring Diagram Index
A/C-FU:
FU-RS:
RT-WI:
