Exhaust Manifold Heat Shield Replacement

Exhaust Manifold Heat Shield Replacement

Removal Procedure





1. Raise and support the vehicle.

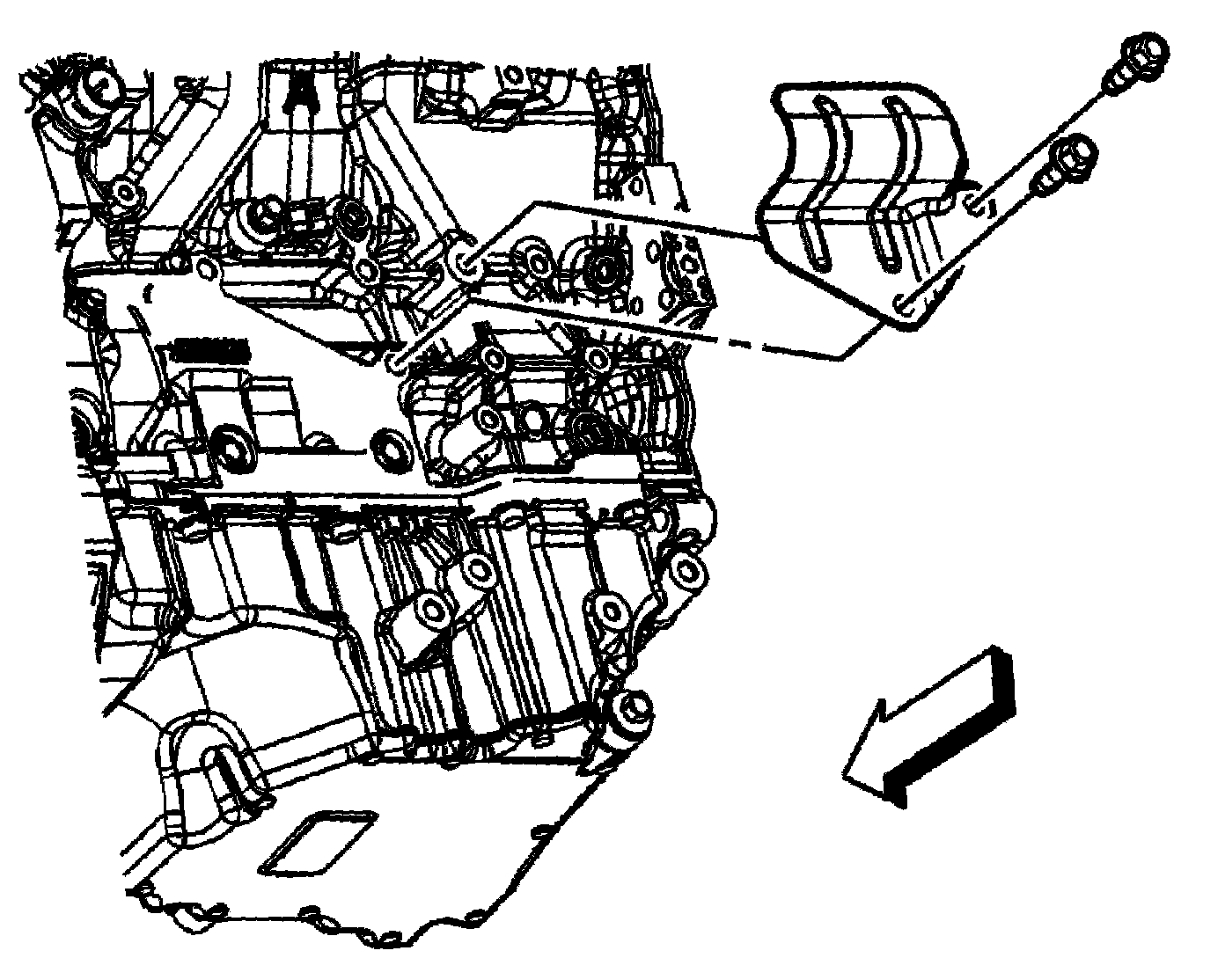

2. Remove the rear exhaust manifold heat shield bolts and shield.

Installation Procedure





CAUTION:
Refer to [Fastener Notice].

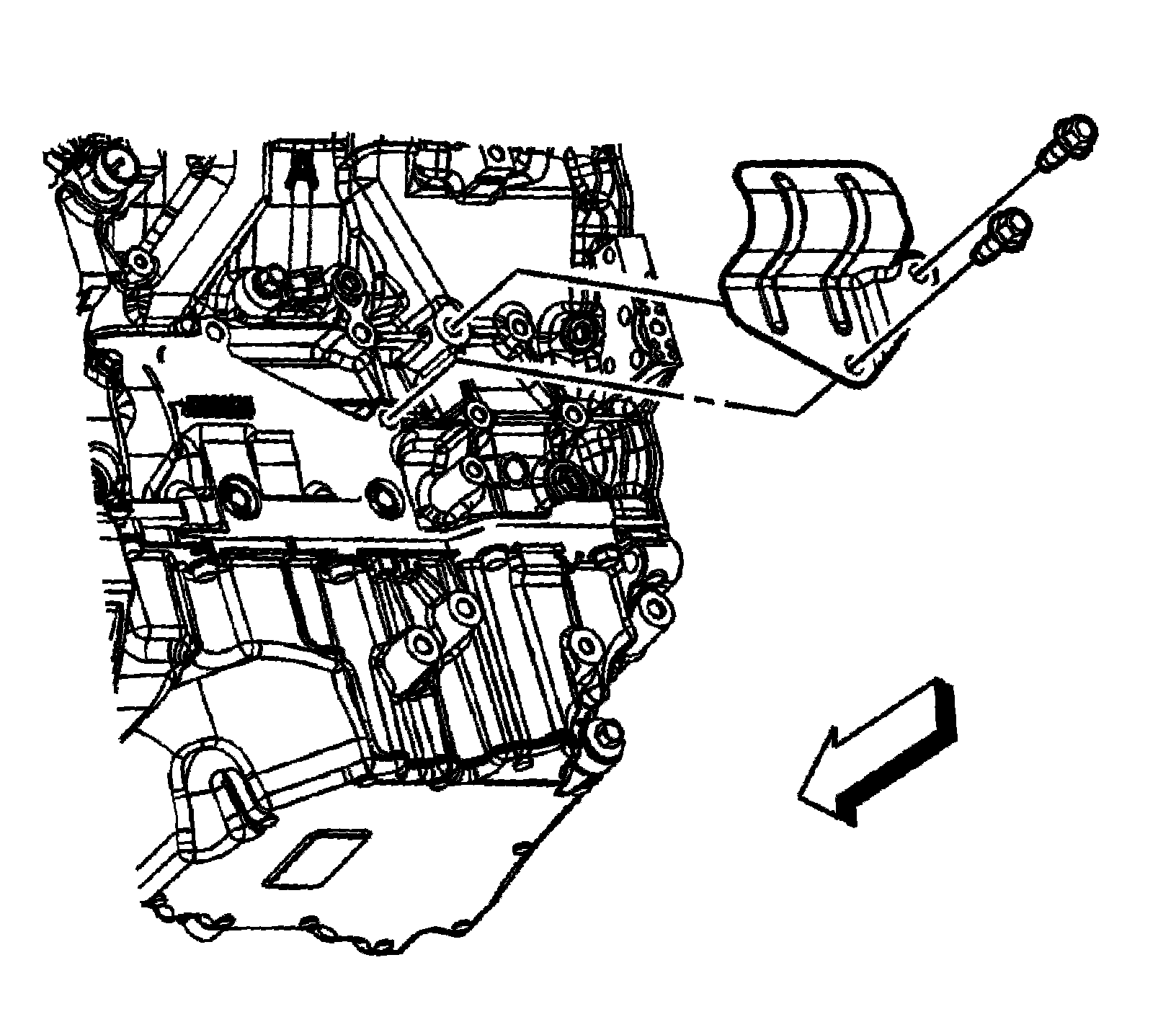

1. Position the rear exhaust manifold heat shield to the engine and install the bolts.
Tightening torque
Tighten the bolts to 50 Nm (37 lb ft).
2. Lower the vehicle.
