Removal and Replacement

Water Pump Replacement

Special Tool
EN 46104 Water Pump Pulley Holding Tool

Removal Procedure
1. Drain the cooling system.
2. Remove the drive belt.
3. Remove the right engine strut mount.
4. Remove the right engine mount strut bracket.

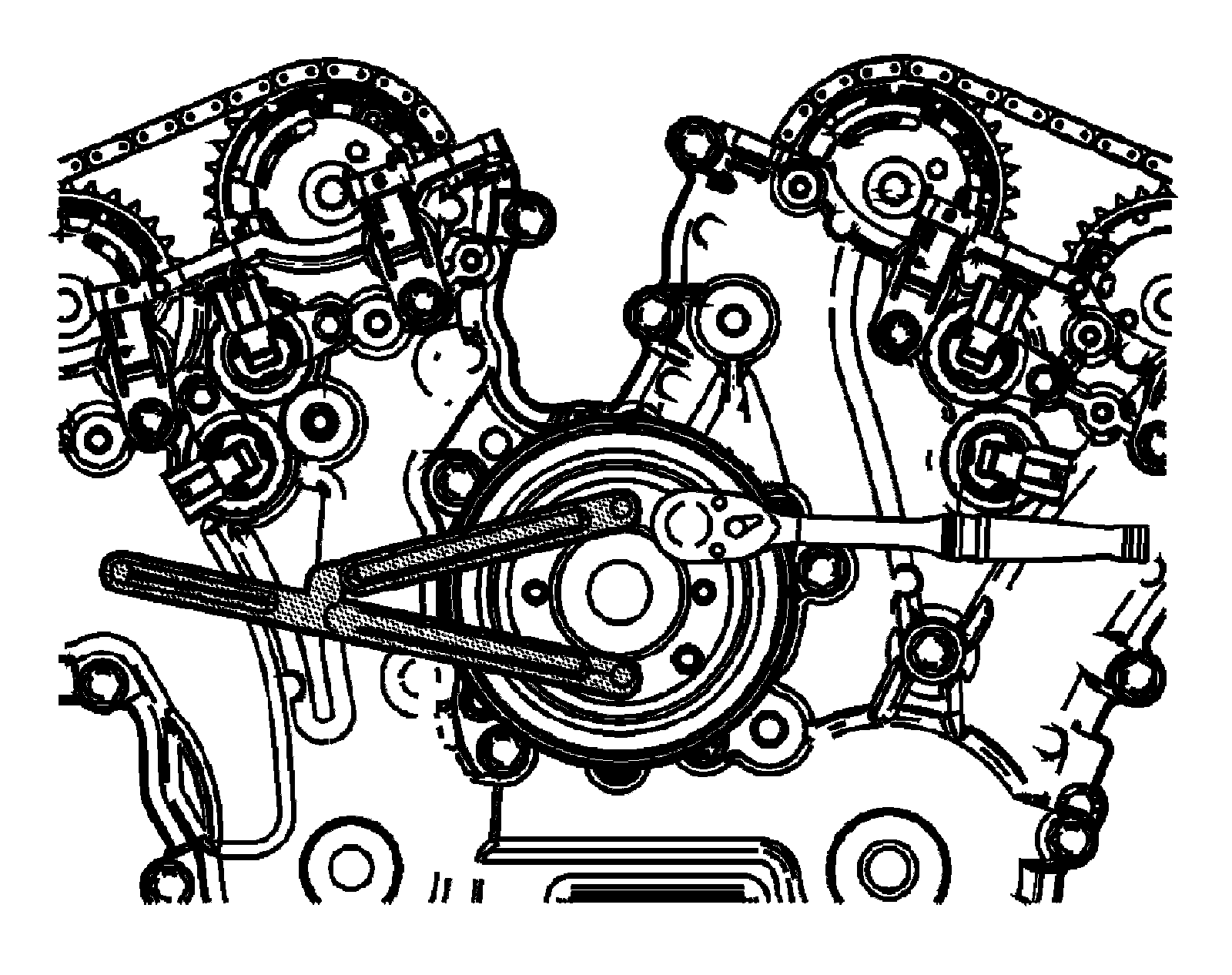

5. Use the EN 46104 in order to retain the water pump pulley.

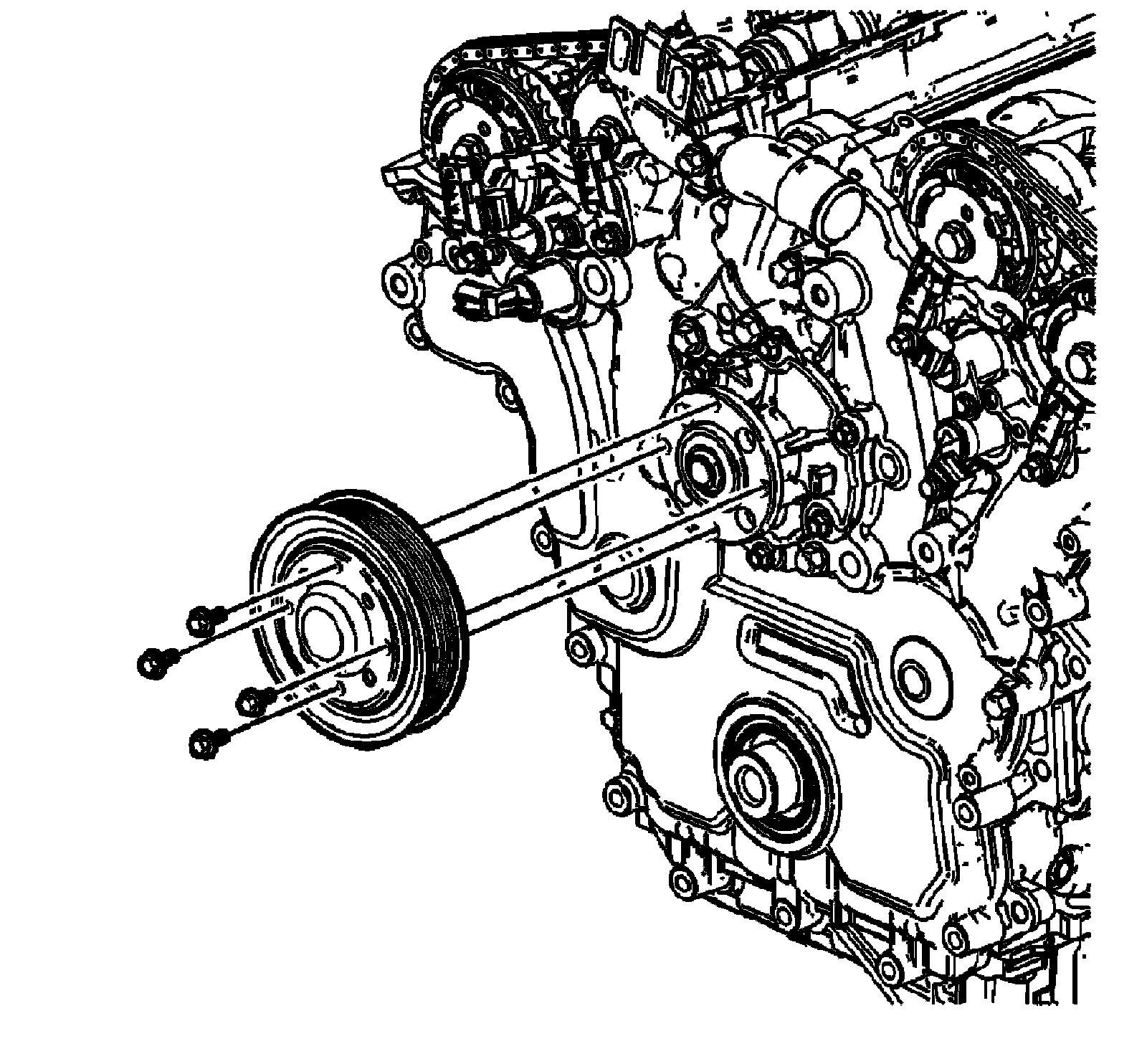

6. Remove the water pump pulley bolts.
7. Remove the water pump pulley.

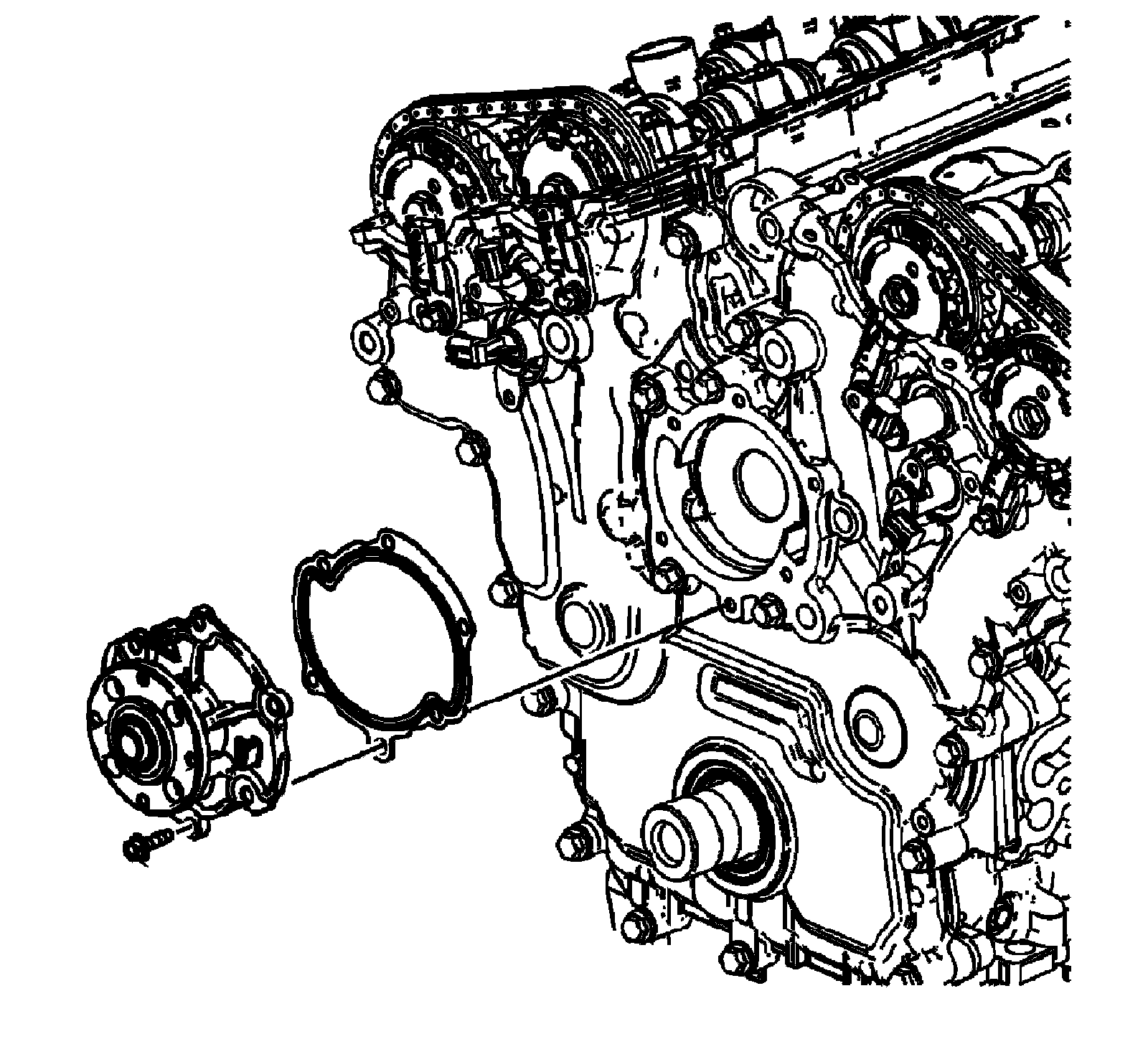

8. Remove the water pump bolts.
9. Remove the water pump.
10. Remove and DISCARD the water pump seal.
11. Carefully clean the water pump sealing surfaces.

Installation Procedure





1. Install a NEW water pump seal.
2. Install the water pump.

CAUTION:
Refer to [Fastener Notice].

3. Install the water pump bolts.
Tightening torque
Tighten the water pump bolts to 10 Nm (89 lb in).

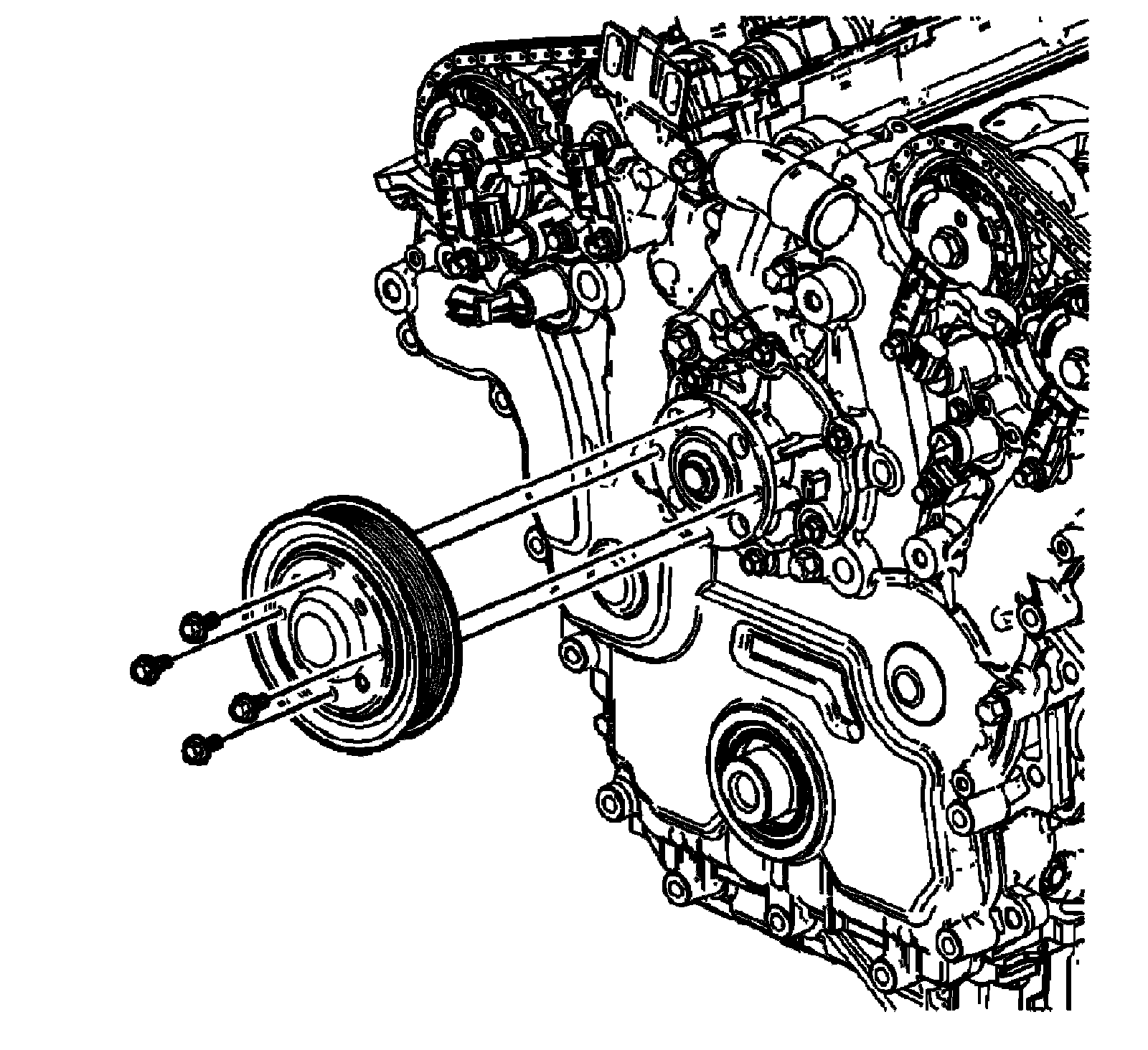

4. Install the water pump pulley and the water pump pulley bolts.

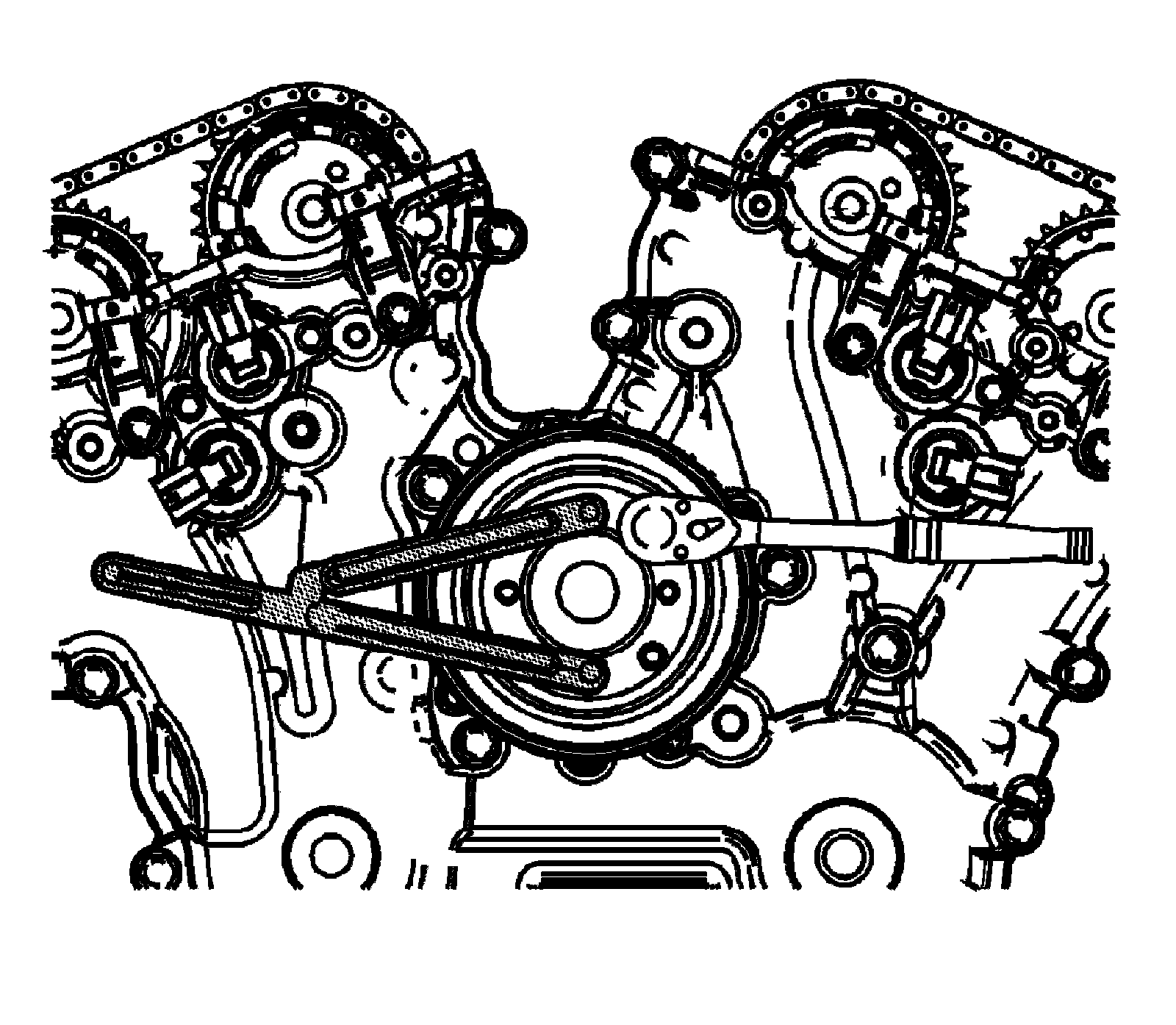

5. Use the EN 46104 in order to retain the water pump pulley.
6. Install the water pump pulley bolts.
Tightening torque
Tighten the water pump pulley bolts to 10 Nm (89 lb in).
7. Install the right engine strut mount.
8. Install the right engine mount strut bracket.
9. Install the drive belt.
10. Fill the cooling system.
