Primary Camshaft Drive Chain Guide Installation - Upper (Fourth Design)

Primary Camshaft Drive Chain Guide Installation - Upper (Fourth Design)

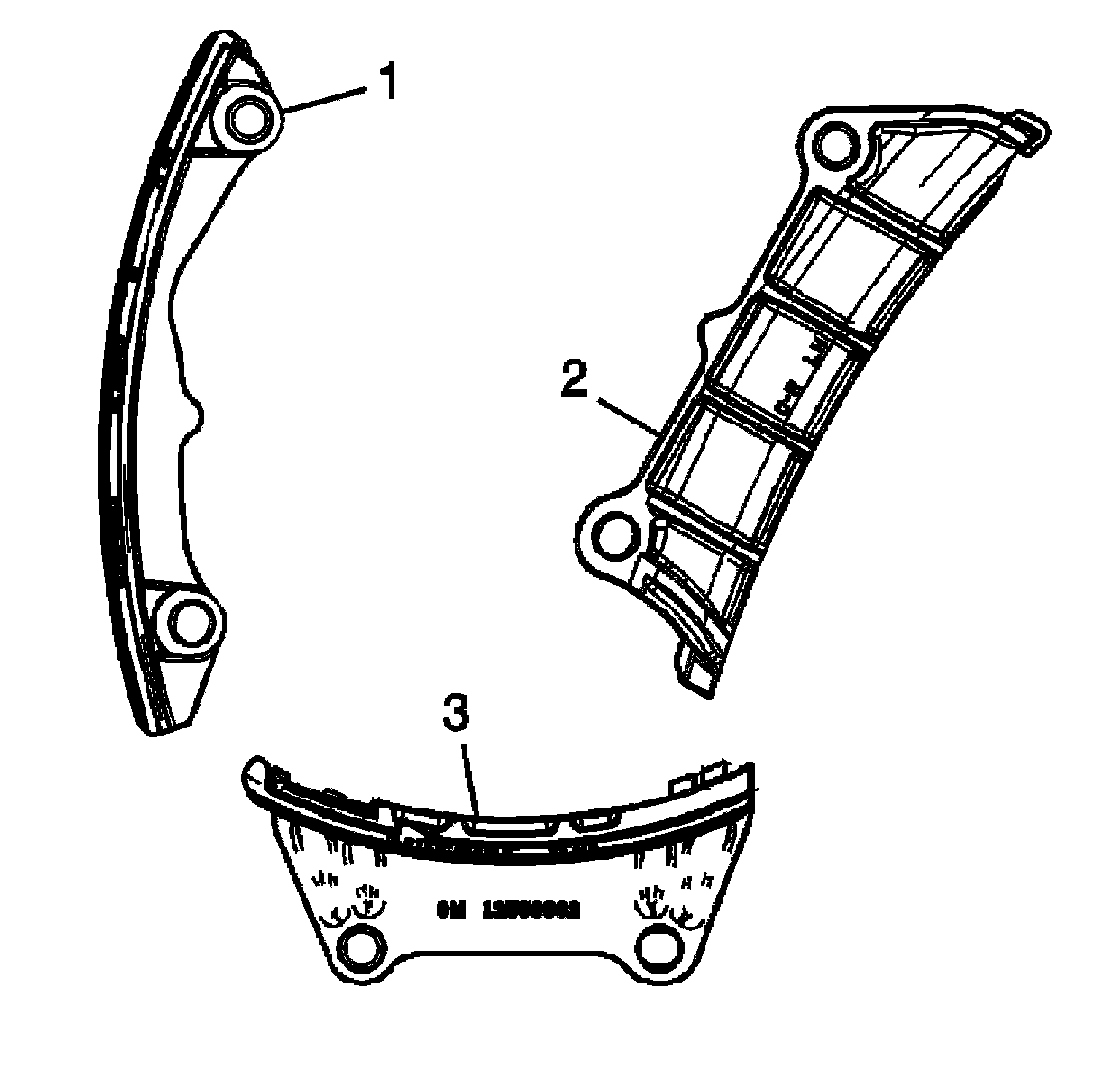

1. Ensure the upper primary camshaft drive chain guide (3) is being installed.

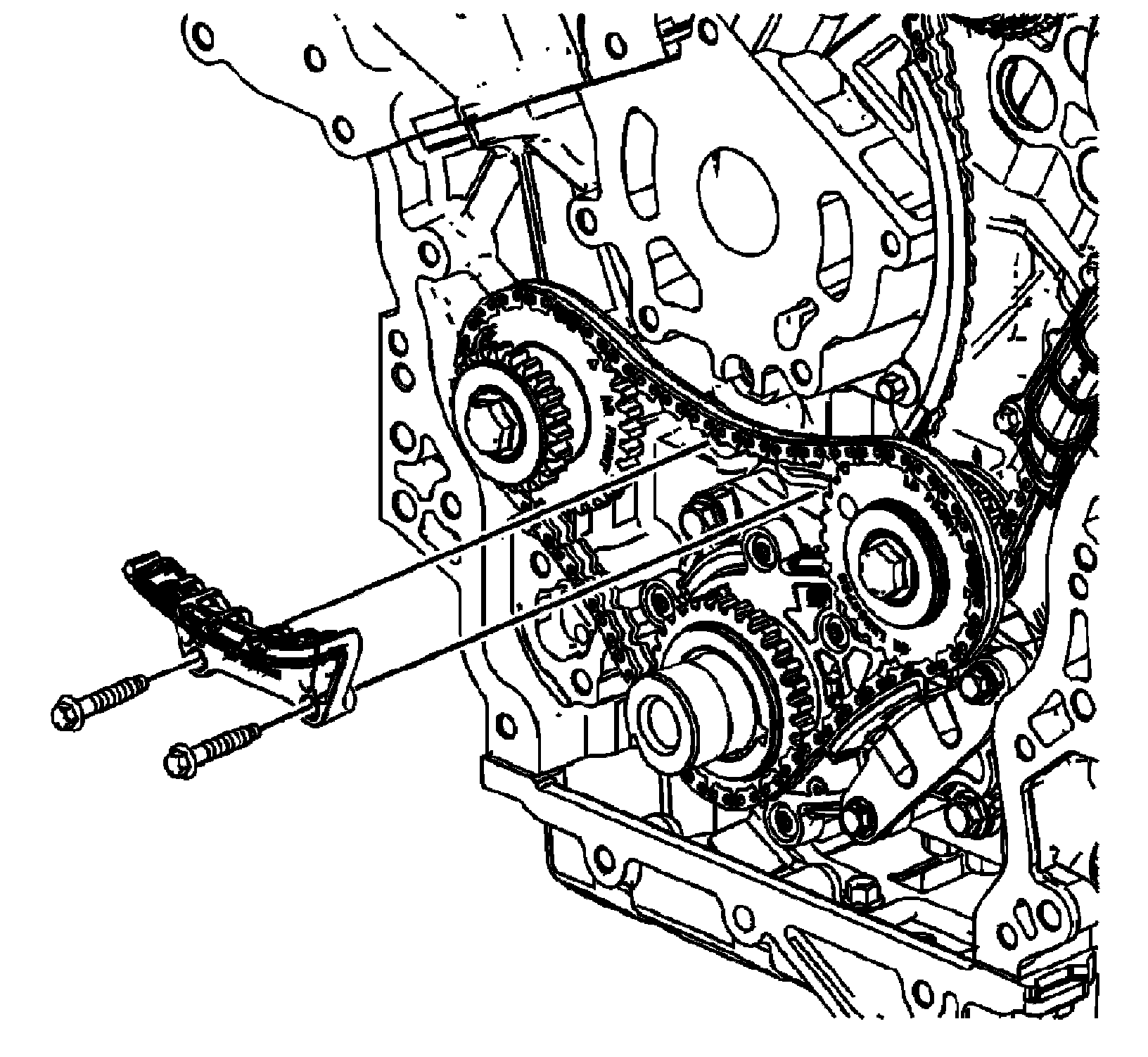

2. Install the upper primary camshaft drive chain guides.

CAUTION:
Refer to [Fastener Notice].

3. Install the upper primary camshaft drive chain guide bolts.
Tightening torque
Tighten the upper primary camshaft drive chain guide bolts to 23 Nm (17 lb ft).
