Radiator Drain Plug: Service and Repair

Radiator Drain Cock Replacement

Special Tool
GE-47716 Vac N Fill Coolant Refill Tool

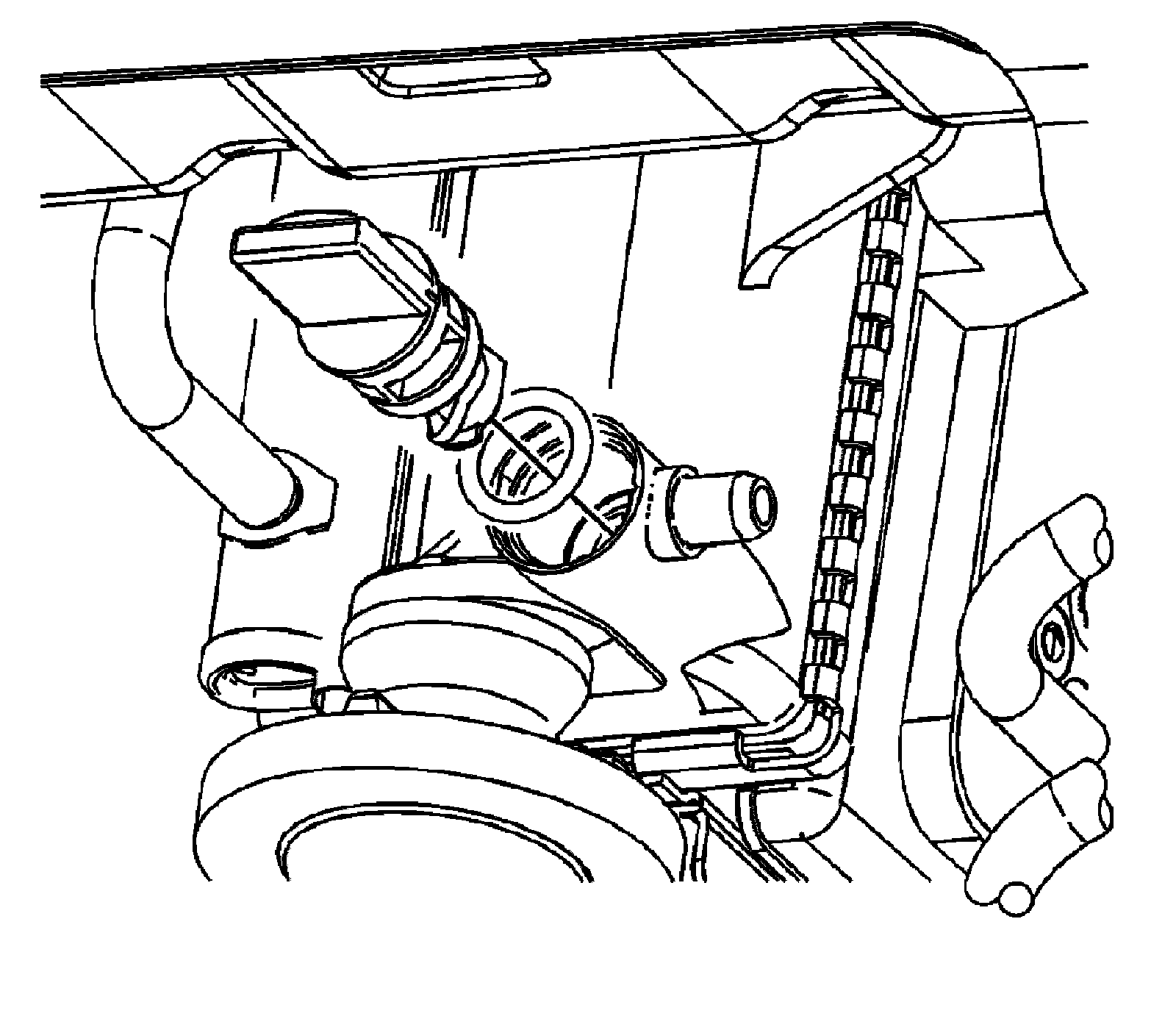

Removal Procedure





1. Drain the radiator.
2. Unscrew the drain plug from the radiator end tank.
3. Remove and discard the O-ring.

Installation Procedure
1. Install the new O-ring.





2. Install and tighten the drain plug into the end tank drain hole.
3. Fill the radiator.
