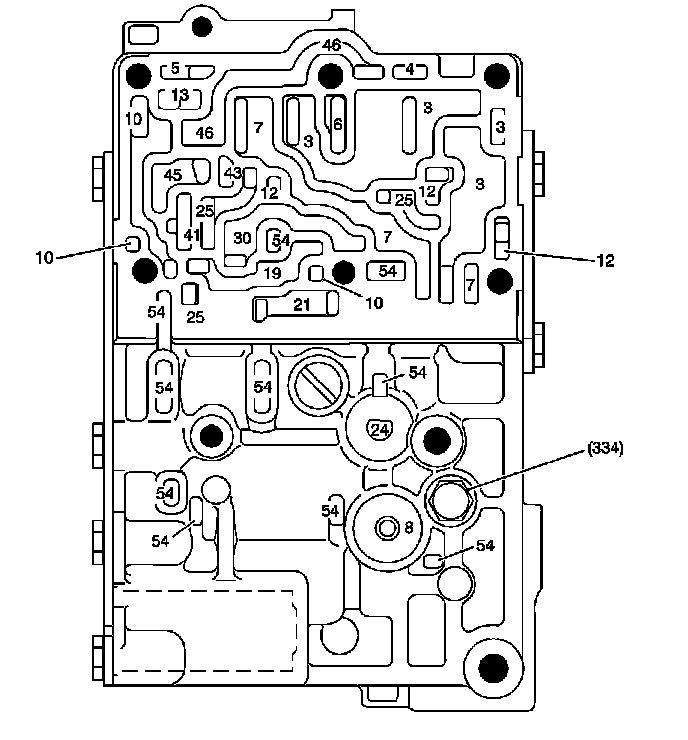

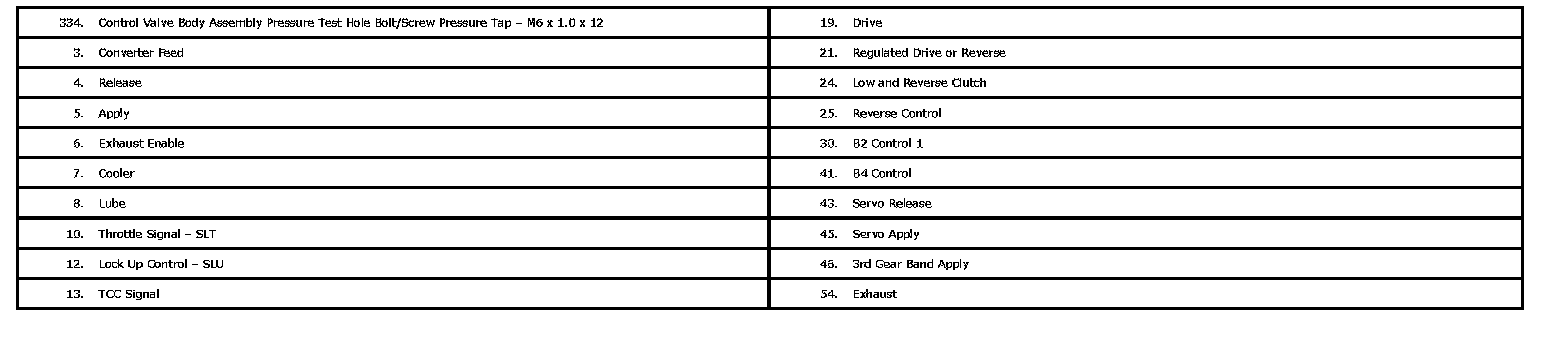

Rear Control Valve Body Assembly Fluid Passages (No. 2 Rear Control Valve Body Assembly Side)

Rear Control Valve Body Assembly Fluid Passages (No. 2 Rear Control Valve Body Assembly Side)
