Middle Control Valve Body Assembly to Rear Control Valve Body Spacer Plate and Gasket Assembly Fluid Passages (Middle Control V

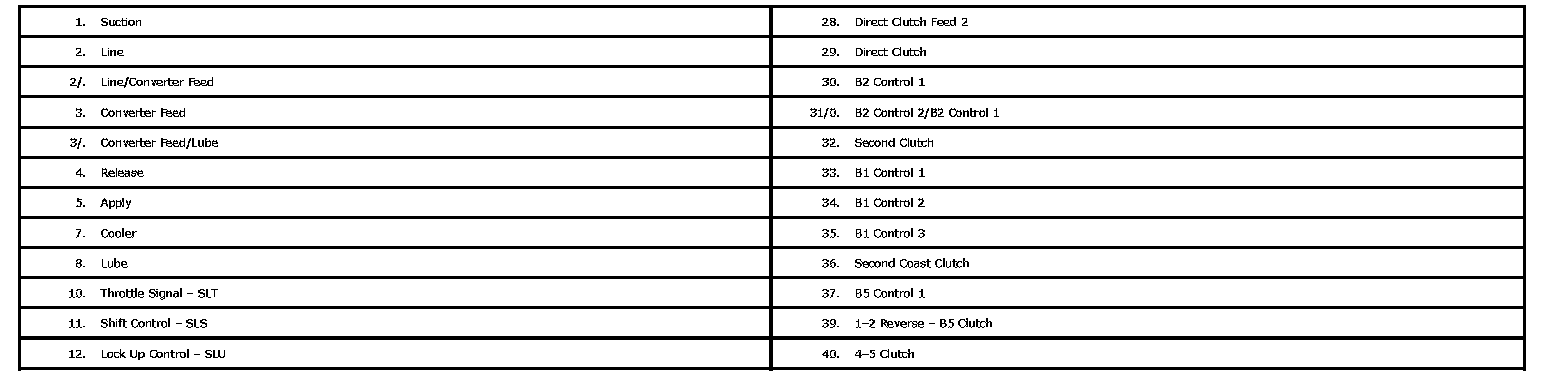

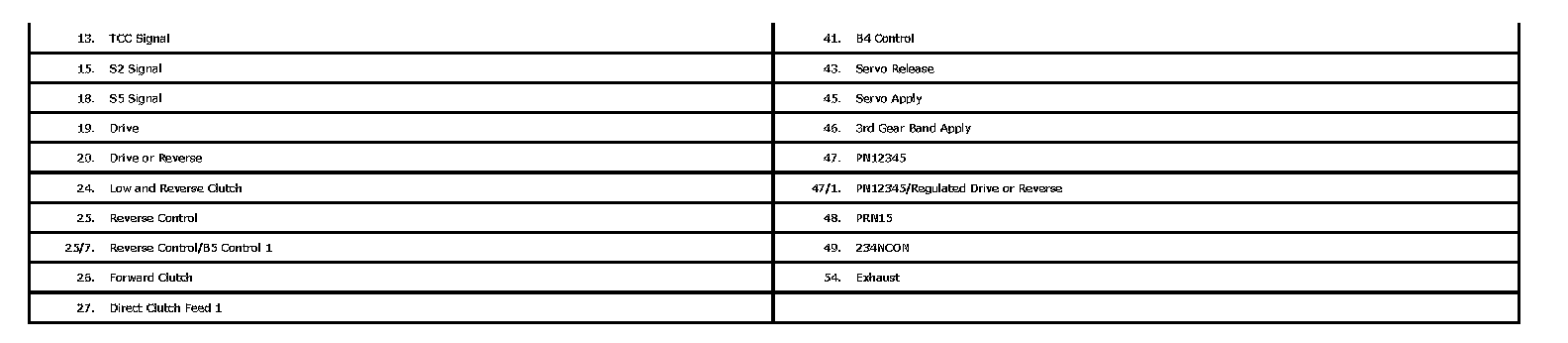

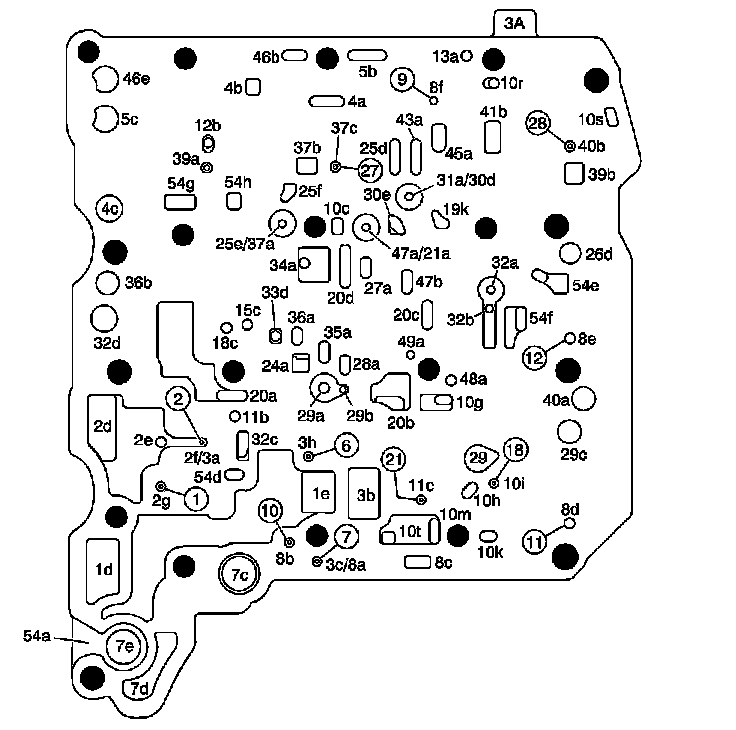

Middle Control Valve Body Assembly to Rear Control Valve Body Spacer Plate and Gasket Assembly Fluid Passages (Middle Control Valve Body Assembly Side)
