Suzuki Truck
>>
2008
>>
XL-7 2WD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Disassembled Views
>>

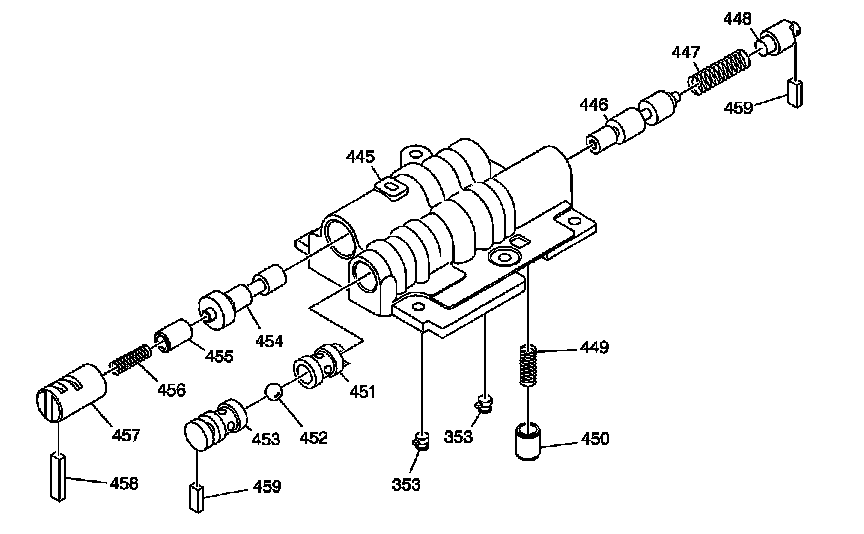

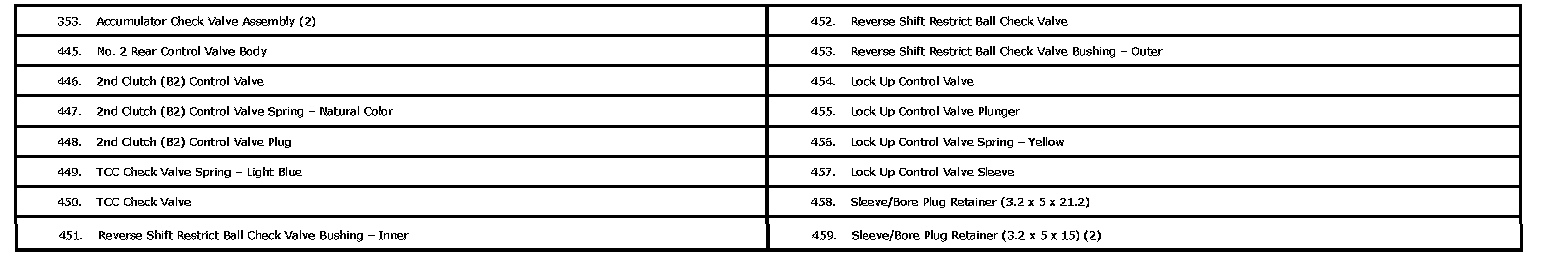

No. 2 Rear Control Valve Body Assembly
No. 2 Rear Control Valve Body Assembly
