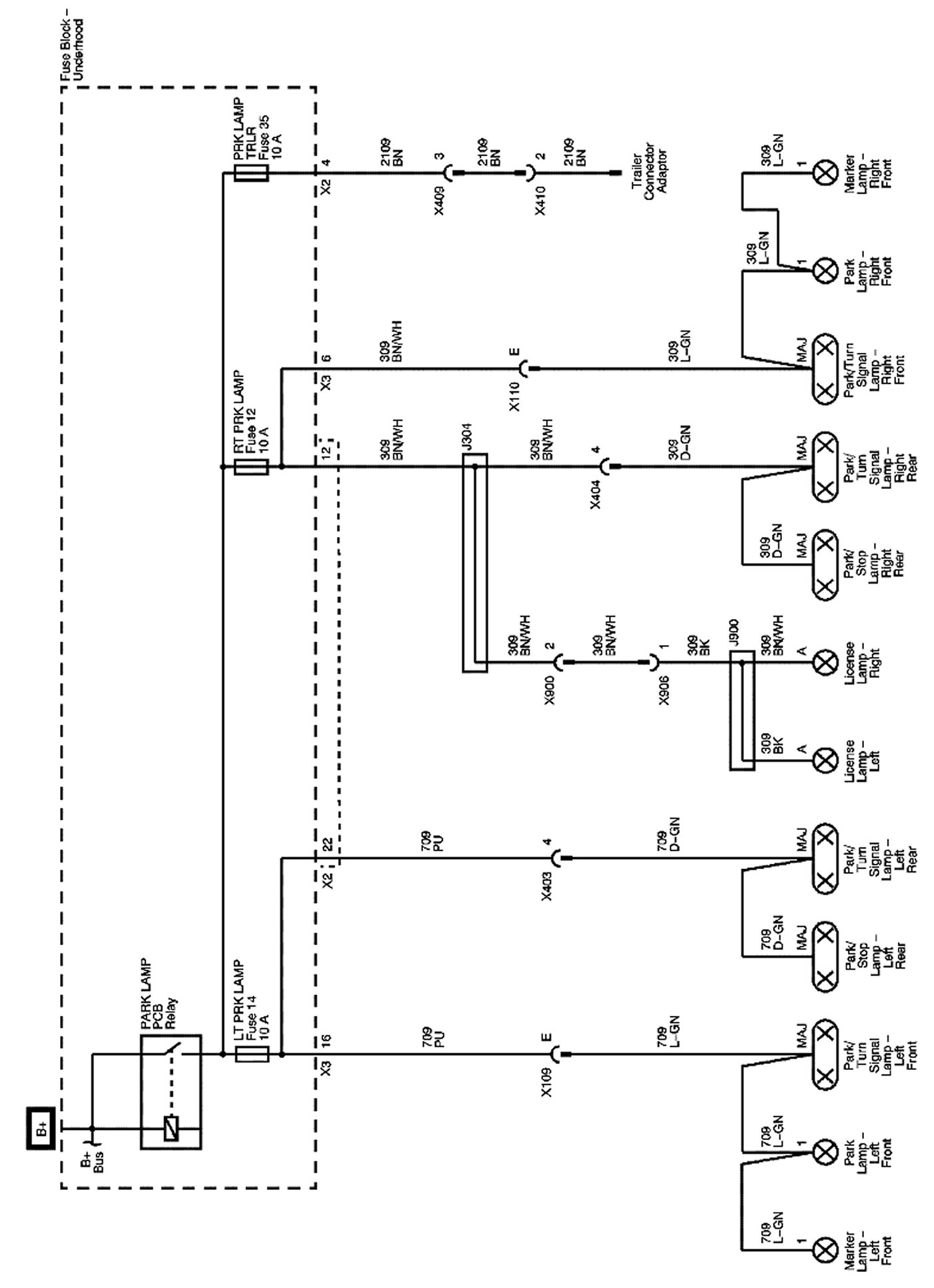

Power Distribution Diagram 12

LH PRK/LP, RH PRK/LP and RH PRK/LP TRLR Fuses






Next Diagram: Power Distribution Diagram 13

Previous Diagram: Power Distribution Diagram 11

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
