Suzuki Truck
>>
2008
>>
XL-7 2WD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>

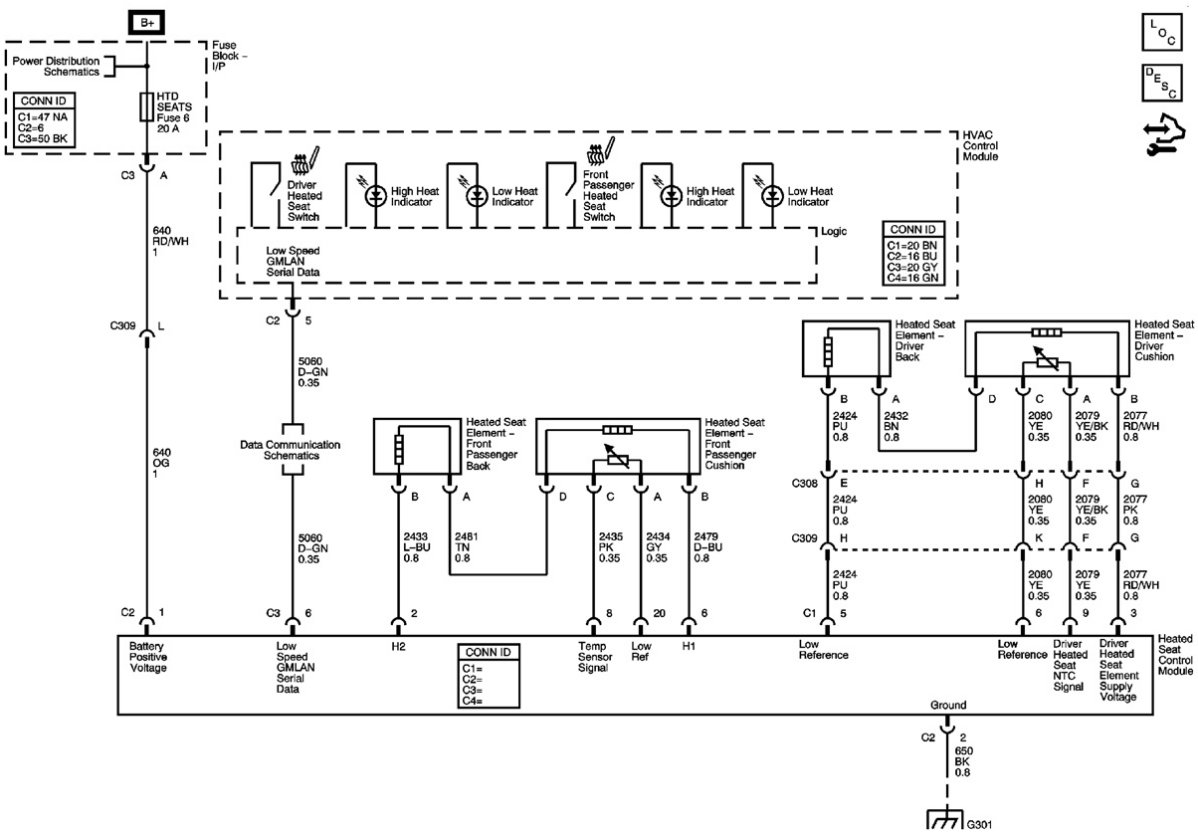

Heated/Cooled Seat Schematics
Heated/Cooled Seat Schematics
Heated/Cooled Seat Schematics:
