Home >> Suzuki Truck >> 2008 >> XL-7 2WD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Rear Door Latch

Rear Door Latch

Door Latch - Left Rear






Connector Part Information
OEM: 6-1355683-1
Service: 88986251
Description: 6-Way F Sealed (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

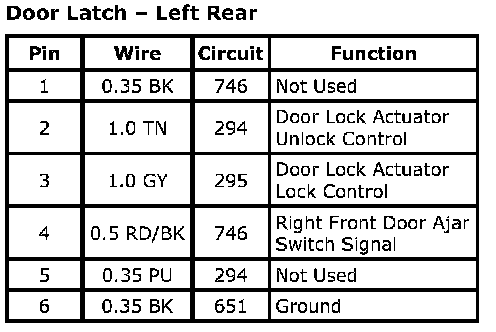

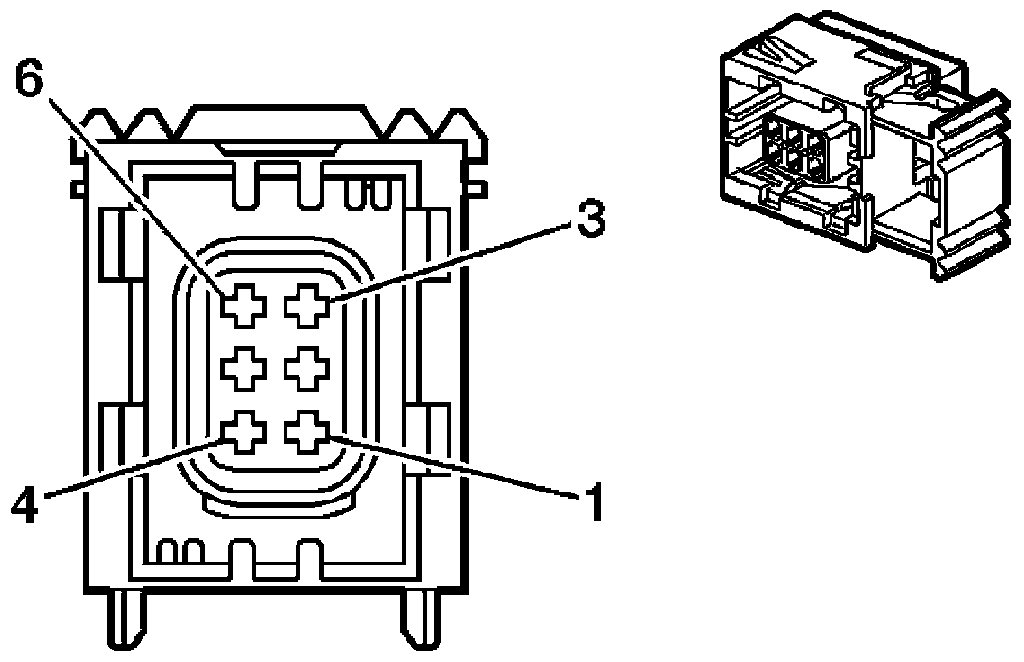

Door Latch - Left Rear:






Door Latch - Right Rear






Connector Part Information
OEM: 6-1355683-1
Service: 88986251
Description: 6-Way F Sealed (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Door Latch - Right Rear:
