X700 - X799

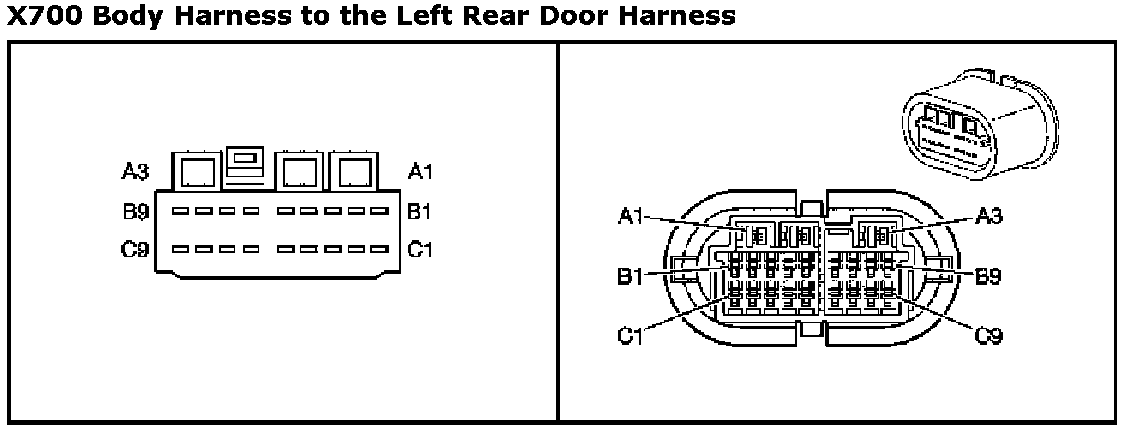

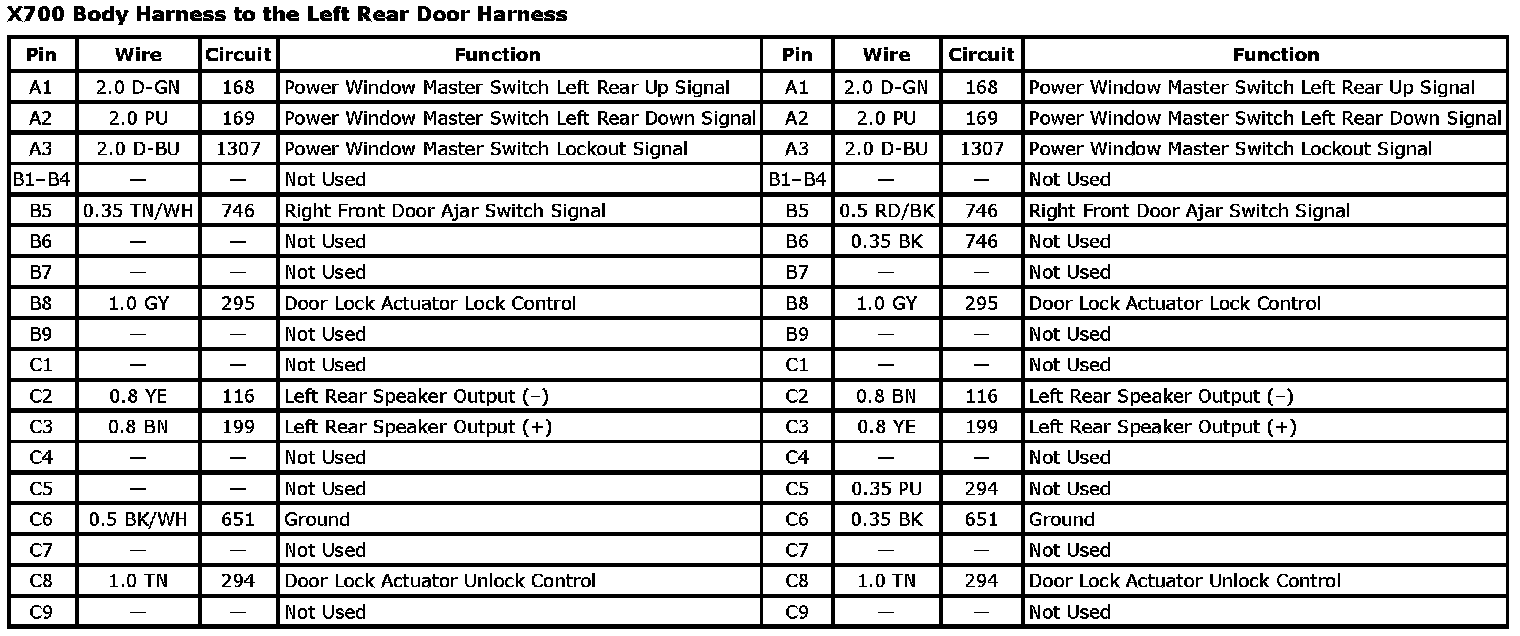

X700 Body Harness to the Left Rear Door Harness

X700 Body Harness To The Left Rear Door Harness:

Connector Part Information
OEM: 7123-1413
Service: 88988485
Description: 21-Way F (WH)

Terminal Part Information
Pins: A1-A3
Terminal/Tray: 7116-1050/27
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12094430/J-35616-4A (PU)
Pins: B5, B8, C2-C3, C6, C8
Terminal/Tray: 173630-7/7
Core/Insulation Crimp: Pins: B8, C2, C3, C8 : E/A
Core/Insulation Crimp: Pins: B5, C6 : E/4
Release Tool/Test Probe: 15315247/J-35616-33 (YE)

Connector Part Information
OEM: 7122-1413
Service: See Catalog
Description: 21-Way M 0.070 Series (WH)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
