X600 - X699

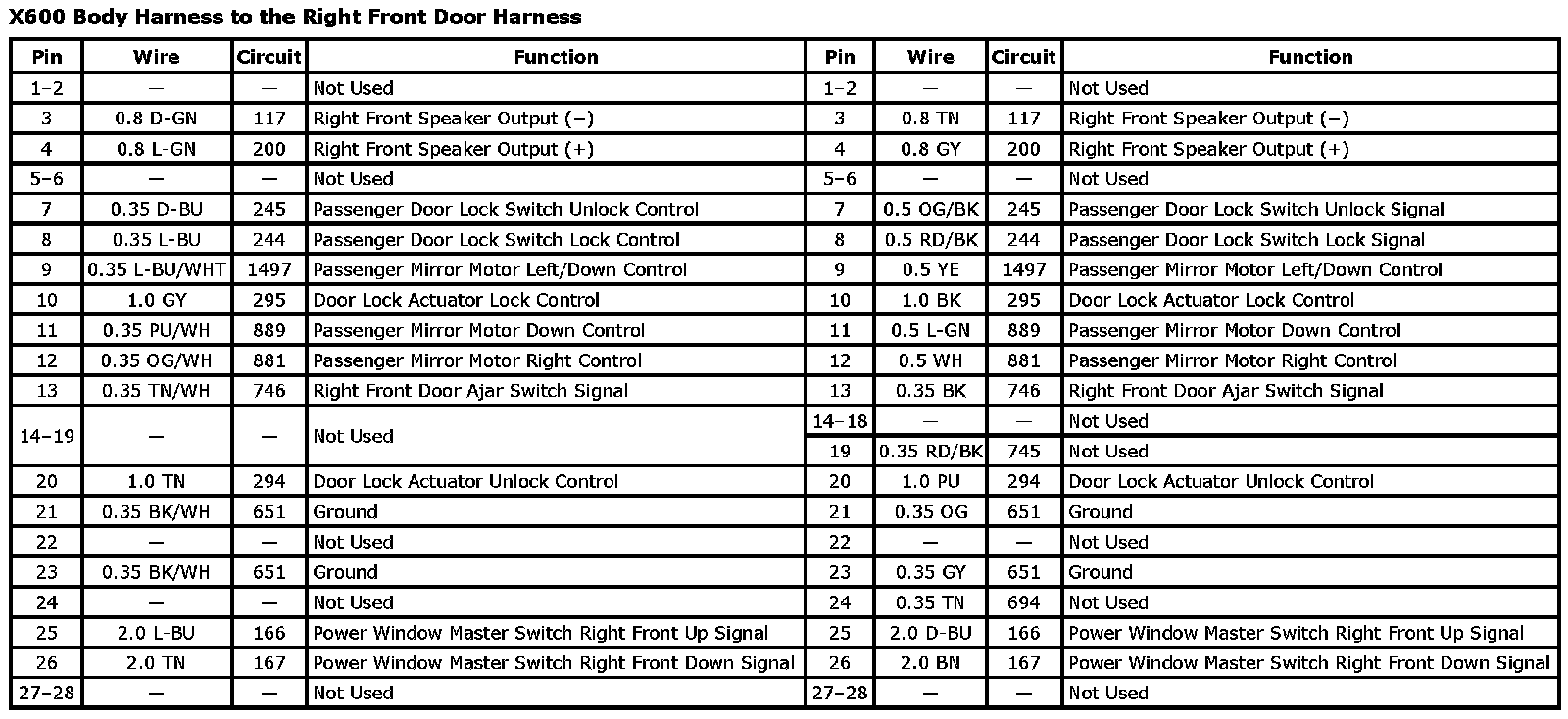

X600 Body Harness to the Right Front Door Harness

X600 Body Harness To The Right Front Door Harness:

Connector Part Information
OEM: 7183-1584
Service: See Catalog
Description: 28-Way F 090 Class II Series, Sealed (WH)

Terminal Part Information
Pins: 7-9, 11-13, 21, 23
Terminal/Tray: 7116-4020/11
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-18 (BK)
Pins: 3-4, 10, 20
Terminal/Tray: 7116-4021/11
Core/Insulation Crimp: Pins: 10, 20 : 2/A
Core/Insulation Crimp: Pins: 3-4 : E/A
Release Tool/Test Probe: 15315247/J-35616-18 (BK)
Pins: 25-26
Terminal/Tray: 7116-4022/11
Core/Insulation Crimp: 4/A
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Connector Part Information
OEM: 7182-1581
Service: See Catalog
Description: 28-Way M 090 Class II Series Sealed (W

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
