Inside Rearview Mirror

Inside Rearview Mirror (ISRVM)

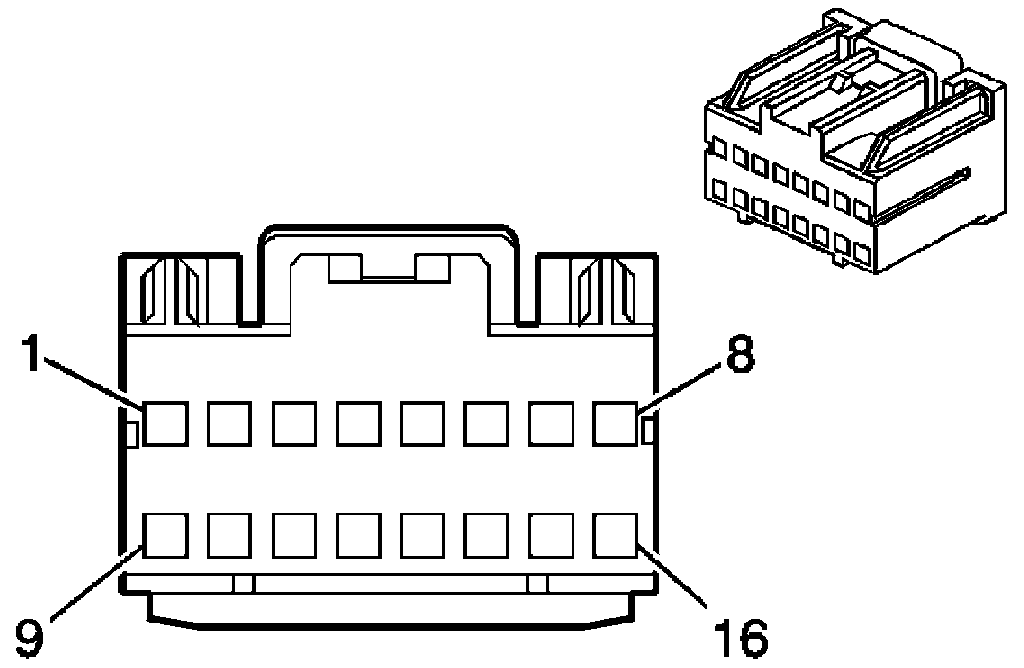

Connector Part Information
OEM: 917981-2
Service: 15306351
Description: 16-Way F 0.040/0.070 HYBRID I/O (BK)

Terminal Part Information
Pins: 2, 5, 8-16
Terminal/Tray: 175266-5/15
Core/Insulation Crimp: Pins 2, 5, 8-16 - J/J
Core/Insulation Crimp: Pins 9 - K/K
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

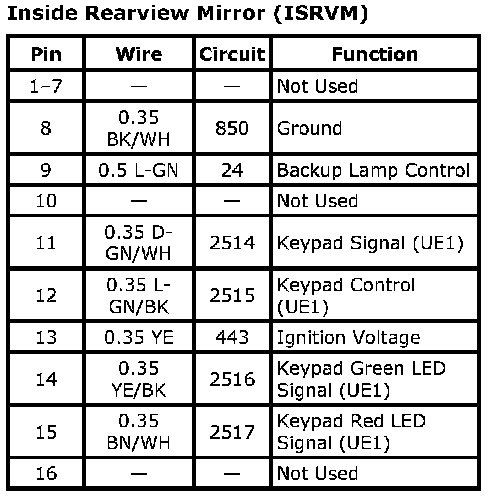

Inside Rearview Mirror (ISRVM):
