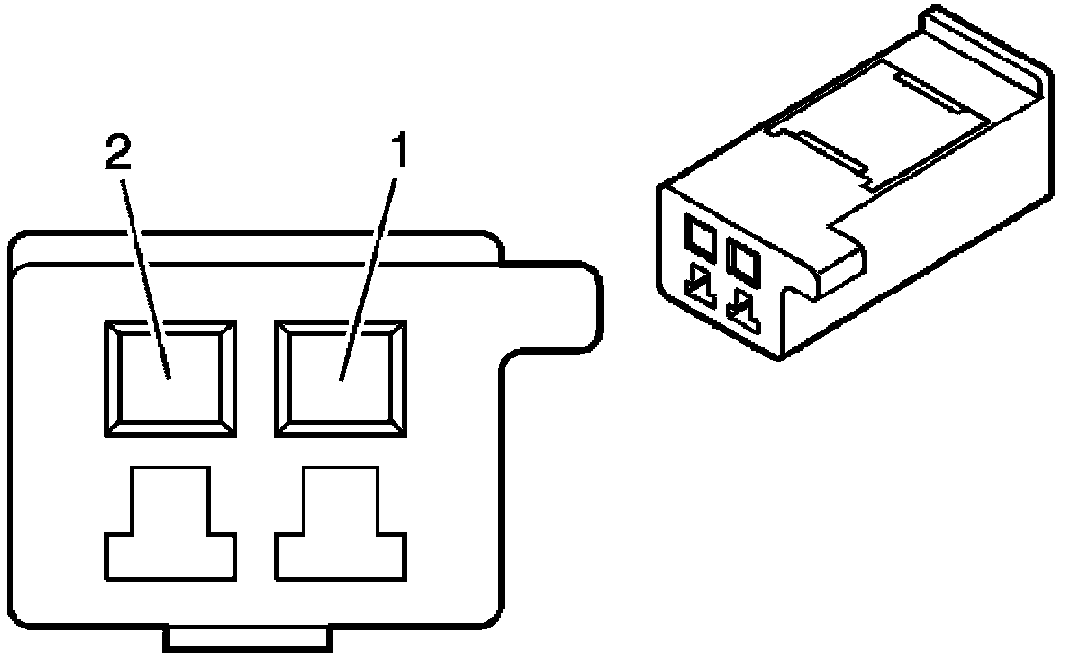

Line Pressure Control Solenoid (SLT)

Line Pressure Control Solenoid (SLT)






Connector Part Information
OEM: Aisin AW
Service: Non-Serviceable
Description: Conn 2-Way F (BU)

Terminal Part Information
Terminal: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

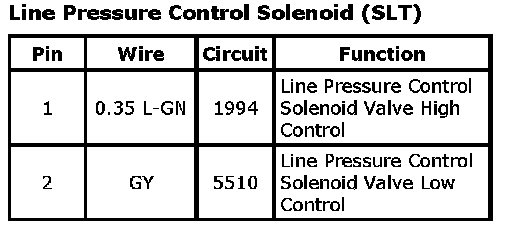

Line Pressure Control Solenoid (SLT):
