Antilock Brakes / Traction Control Systems: Locations

Antilock Brake System Component Views

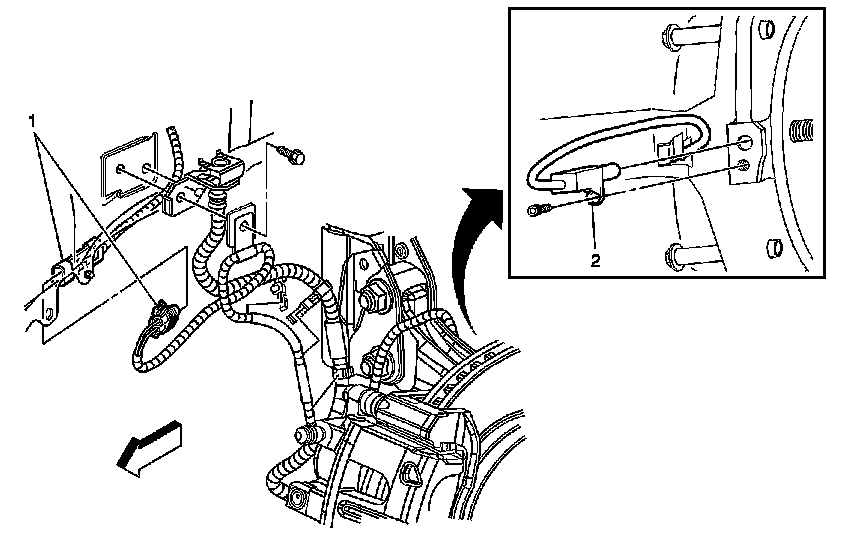

LF Suspension:

1. C103 Left Shown, C104 Right Similar
2. Wheel Speed Sensor (WSS) - LF, RF Similar

Near the Brake Booster:

1. Brake Fluid Level Switch
3. Electronic Brake Control Module (EBCM)
2. LF Strut Tower

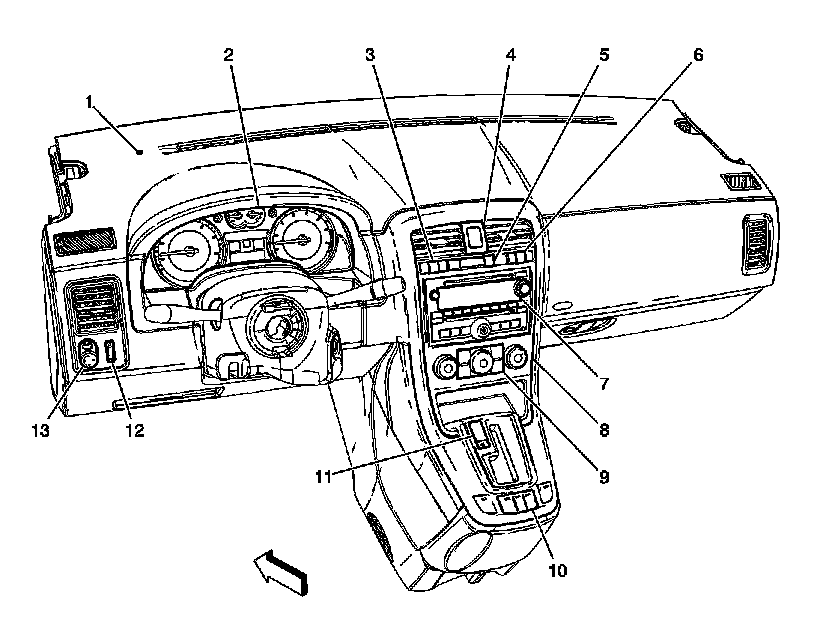

Instrument Panel:

1. Ambient Light Sensor
2. Instrument Panel Cluster (IPC)
3. Driver Information Center (DIC) Switch
4. Hazard Switch
5. Inflatable Restraint Passenger Air Bag ON/OFF Indicator
6. Rear Wiper/Washer Switch/Fog Lamp Switch (T96)
7. Radio
8. HVAC Control Module
9. Heated Seat Switch - Driver, Heated Seat Switch - Front Passenger
10. Power Window Switch - Main
11. Traction Control Switch (TCS)
12. Dimmer Switch
13. Outside Rear View Mirror Switch

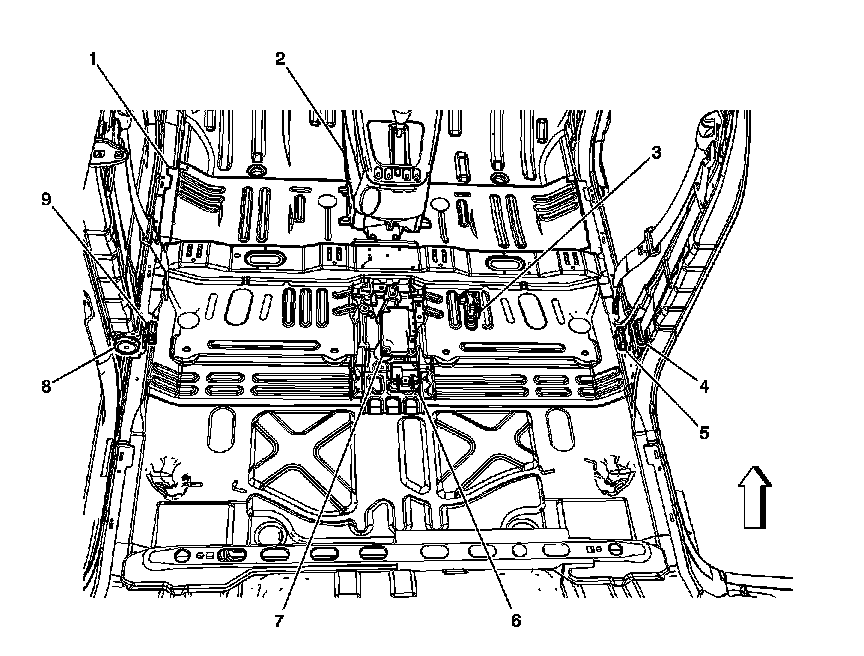

Center of the Floor:

1. Floor Panel
2. Console
3. Yaw Rate and Lateral Acceleration Sensor
4. Seat Belt Pretensioner - Right
5. Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
6. Rollover Sensor (ASF)
7. Inflatable Restraint Sensing and Diagnostic Module (SDM)
8. Seat Belt Pretensioner - Left
9. Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

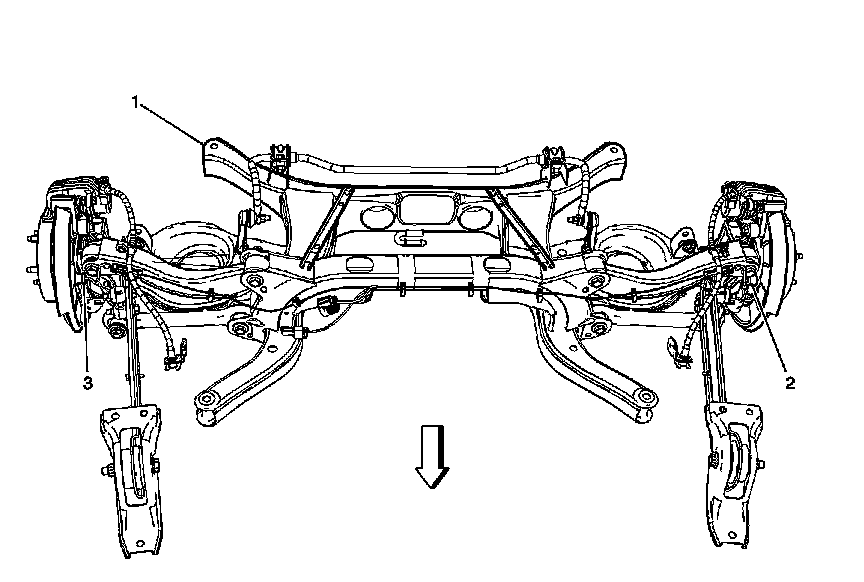

Rear ABS Sensors:

1. Rear Cradle
2. Wheel Speed Sensor (WSS) - LR
3. Wheel Speed Sensor (WSS) - RR
