Hydraulic Control Assembly - Antilock Brakes: Locations

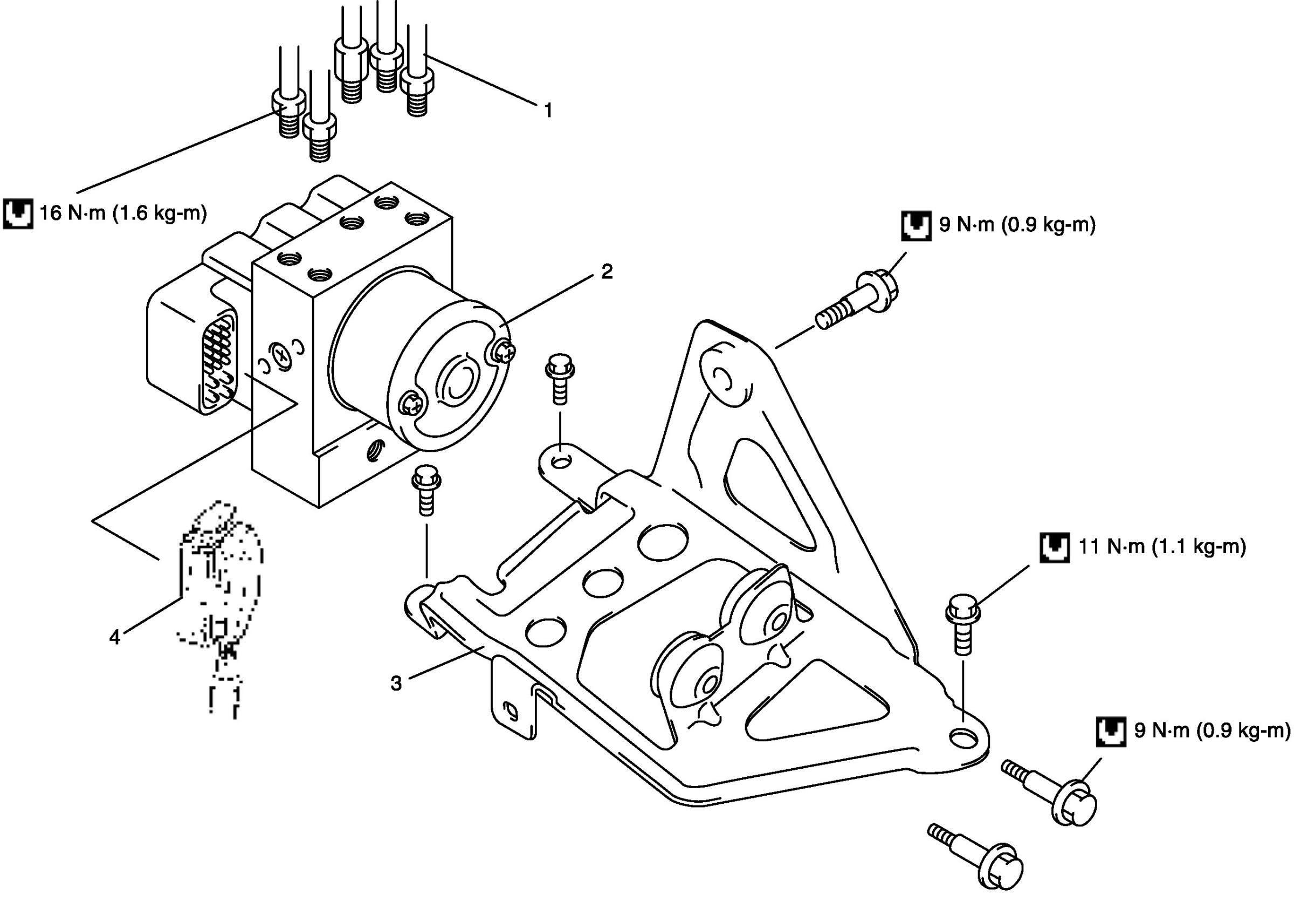

ABS Hydraulic Unit/Control Module Assembly

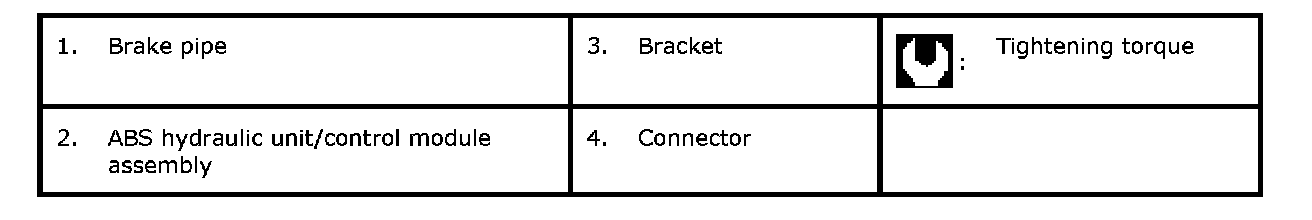

Components:
