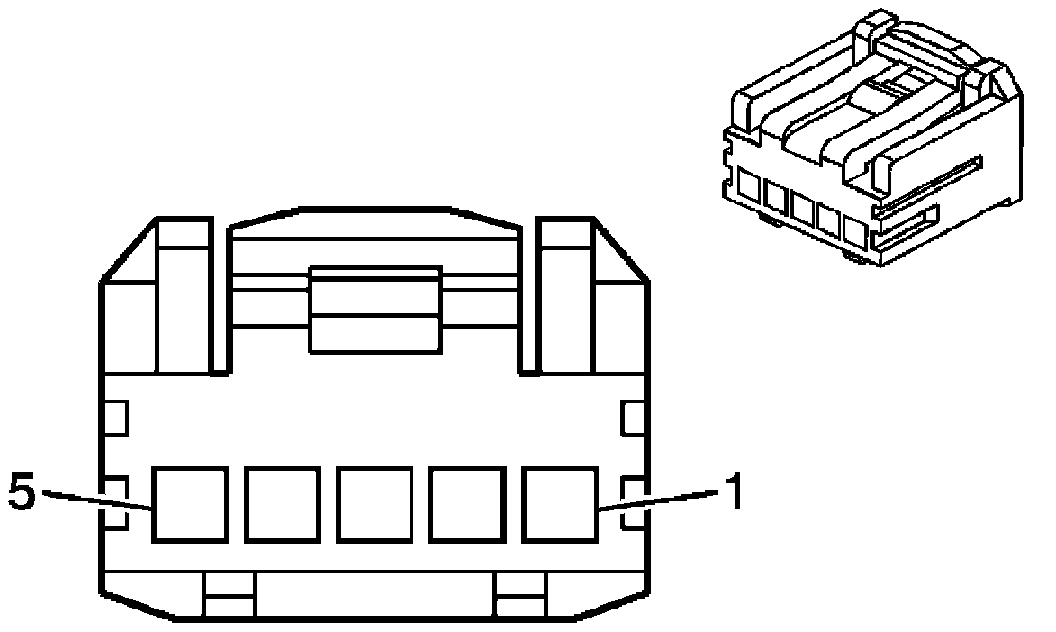

Connector Views

Driver Information Center (DIC) Switch






Connector Part Information
OEM: HCMPB-A05-K
Service: 88988747
Description: 5-Way F HCM Unsealed (BK)

Terminal Part Information
Terminal/Tray: SHCM-A03T-P025/20
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

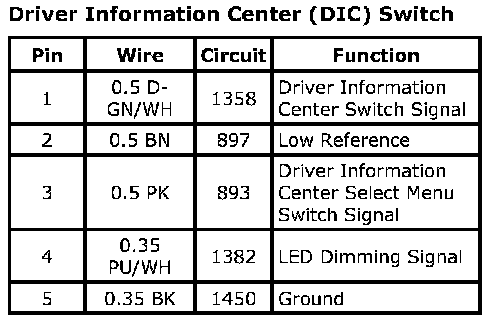

Driver Information Center (DIC) Switch:
