Four Wheel Drive Selector Switch: Testing and Inspection

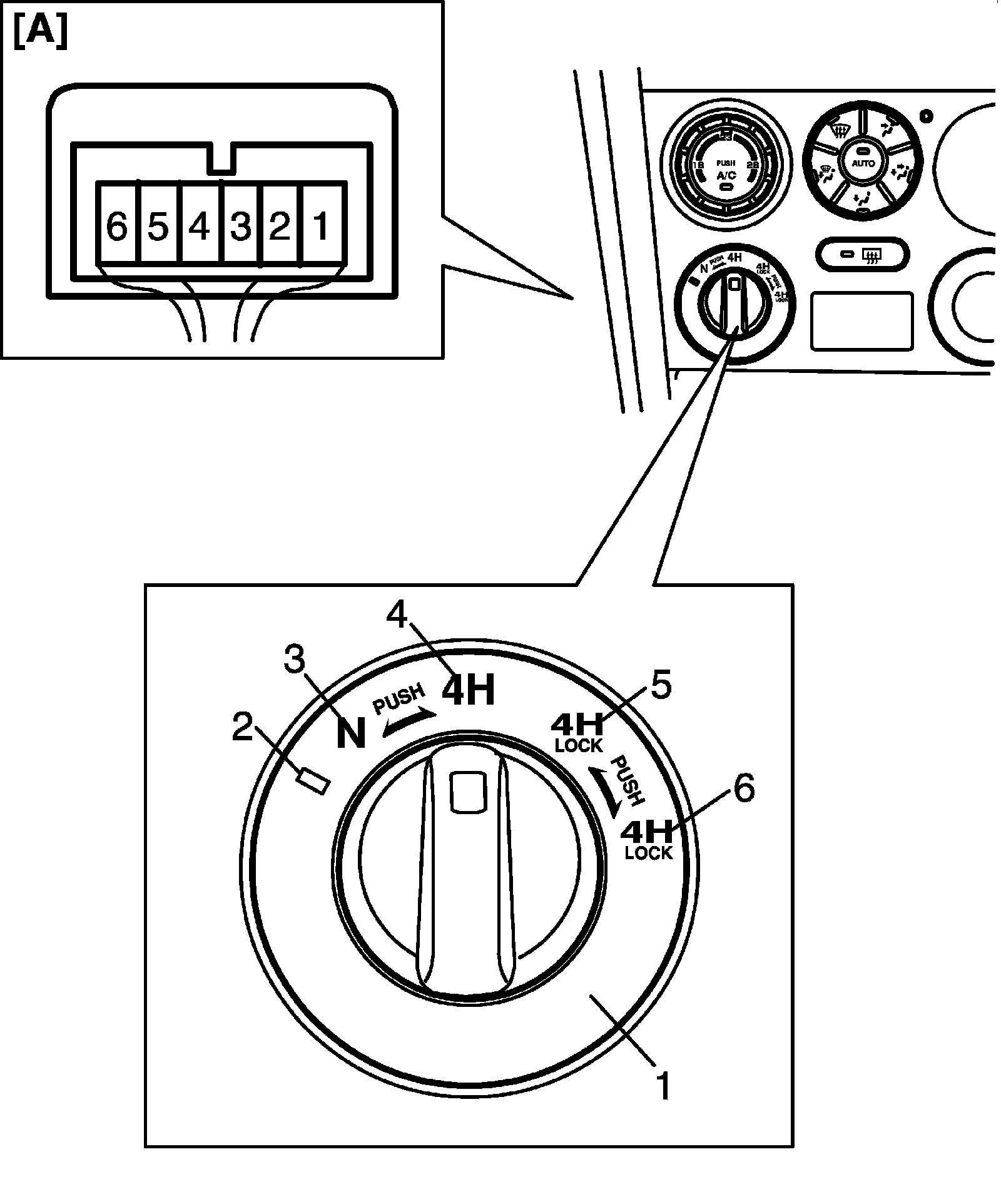

Transfer Switch InspectionCheck continuity between following terminals when transfer switch (1) operated at each position.
Check continuity between following terminals when transfer switch (1) operated at each position.
