EGR Valve: Service and Repair

EGR Valve Assembly Removal and Installation

Removal
1. Remove intake collector from intake manifold referring to Step 1) to 11) of Intake Collector and Intake Manifold Removal and Installation.

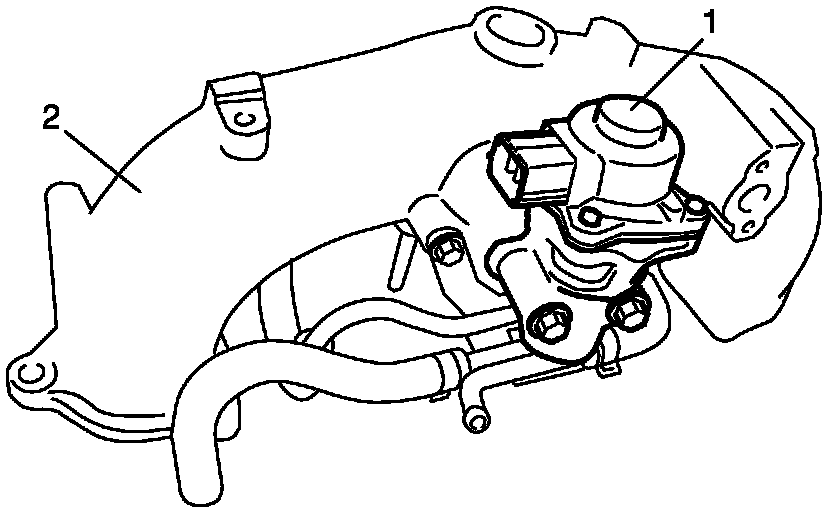

2. Remove EGR valve (1) and gasket from intake collector (2).






Installation
Reference: EGR Valve Assembly Inspection

Reverse removal procedure noting the following.
- Clean mating surface of valve and intake collector.
- Use new gaskets.
