Evaporator Temperature Sensor / Switch: Service and Repair

A/C Evaporator Temperature Sensor Removal and Installation

Reference: HVAC Unit Components

Removal

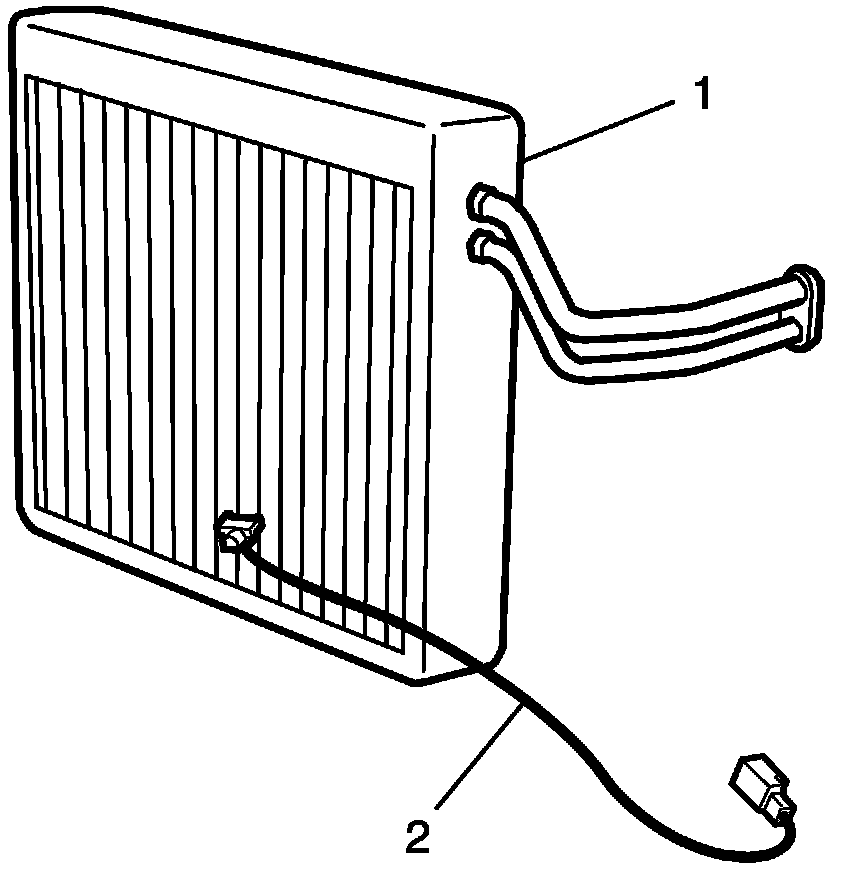

1. Remove A/C evaporator (1) referring to A/C Evaporator Removal and Installation.
2. Remove A/C evaporator temperature sensor (2) from evaporator.






Installation

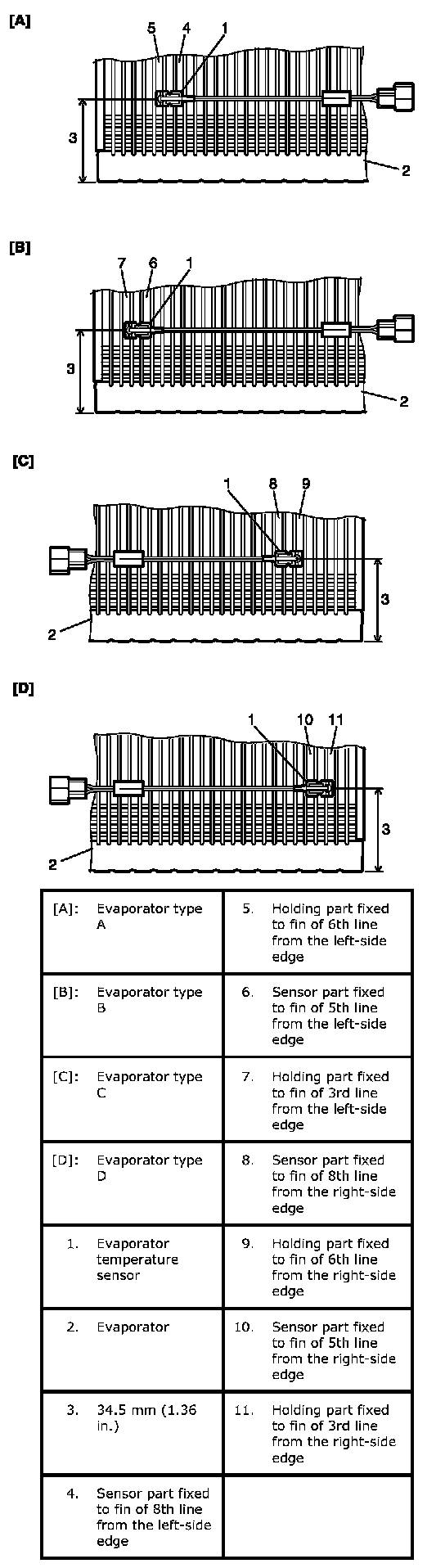

1. Identify evaporator by the following tables.

NOTE: As for Evaporator, there are 4 varieties depending on the internal structure.









2. Install evaporator temperature sensor onto evaporator in a correct position as shown in figure.

CAUTION: Mis-position causes insufficiency cooling and damaged of A/C system.
