Evaporator Temperature Sensor / Switch: Description and Operation

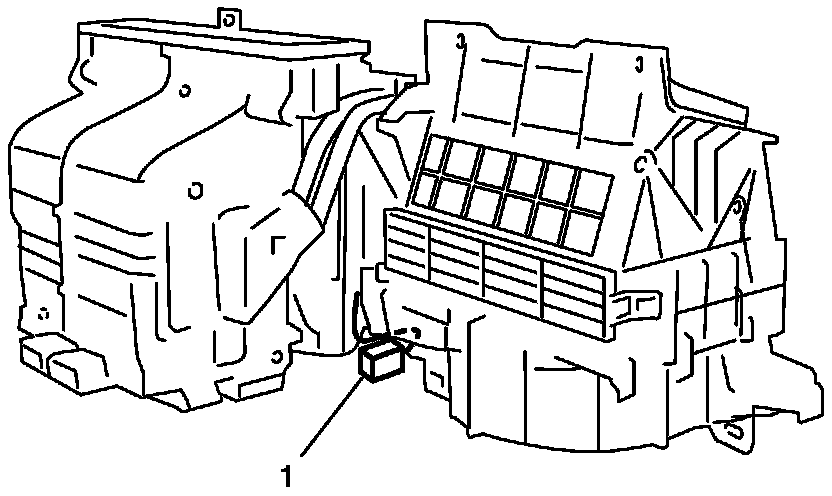

A/C Evaporator Temperature Sensor DescriptionThe A/C evaporator temperature sensor (1) is a temperature sensor to sense the temperature of air discharged from evaporator.

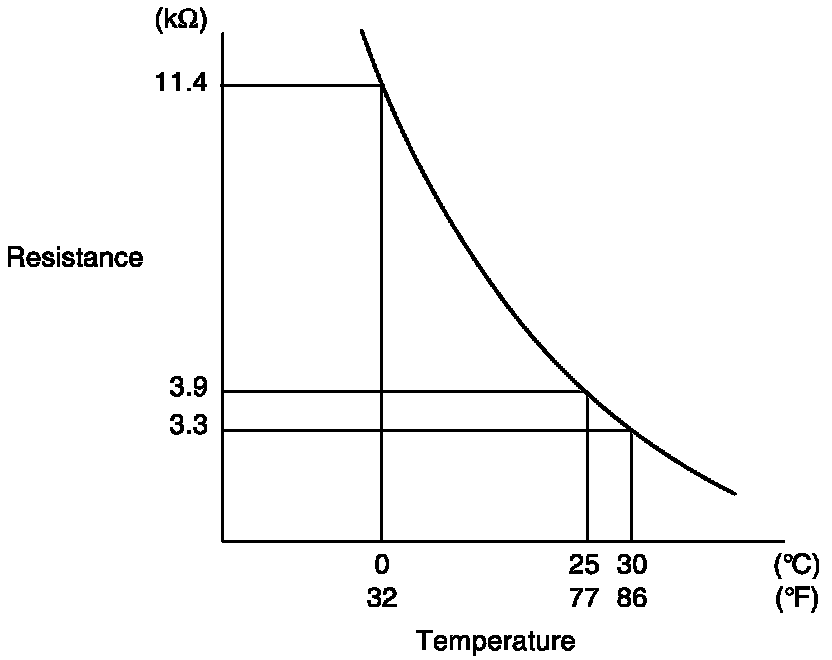

The electrical characteristic is shown.
When temperature is lower than specified, A/C controller makes magnet clutch turn off to prevent evaporator from frosting.
