Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

Inside Air Temperature Sensor Inspection

1. Remove Inside air temperature sensor referring to Inside Air Temperature Sensor Removal and Installation.

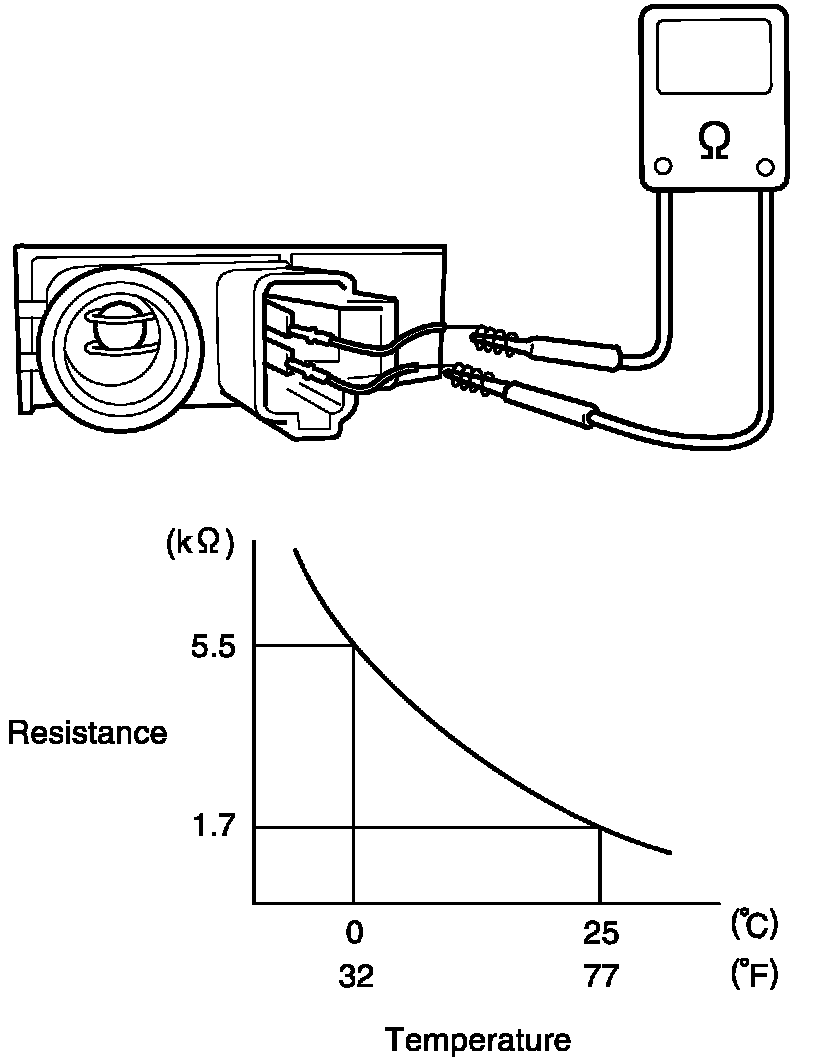

2. Check resistance between terminals.

Inside air temperature sensor resistance
Approx. 1.7 kohms ± 85 ohms at 25 °C (77 °F)
