Ambient Temperature Sensor / Switch HVAC: Service and Repair

Inside Air Temperature Sensor Removal and Installation

Removal
1. Disconnect negative cable (-) at battery.
2. Remove steering column hole cover.

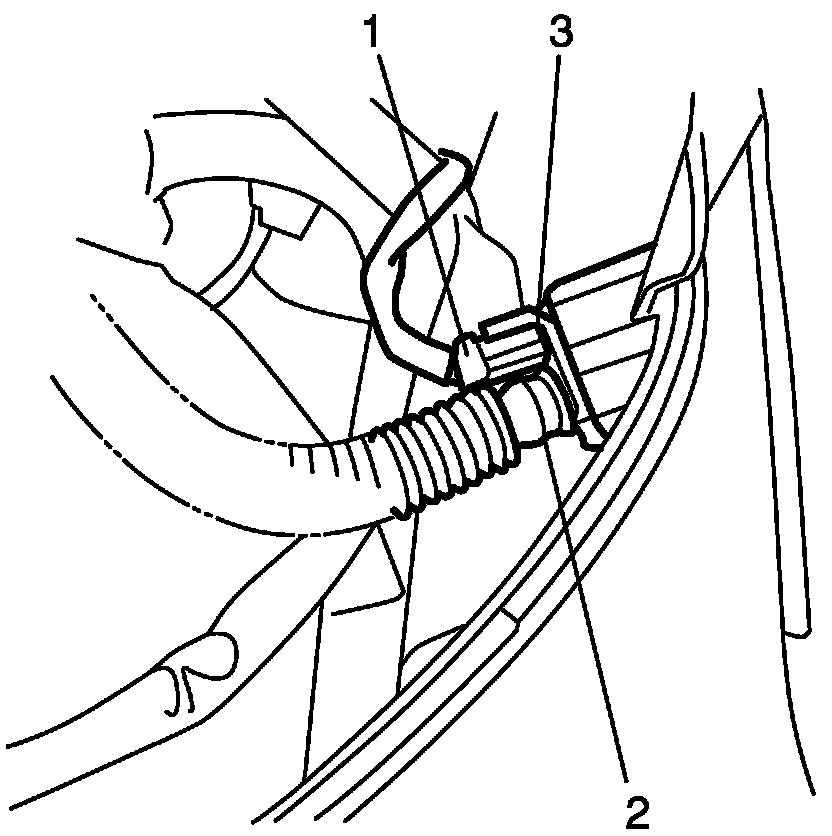

3. Disconnect inside air temperature sensor connector (1) and aspirator hose (2).
4. Remove inside air temperature sensor (3) from vehicle.






Installation
Reverse removal procedure.
