Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Suzuki Truck
>>
2008
>>
Grand Vitara 4WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
E Connectors
E Connectors

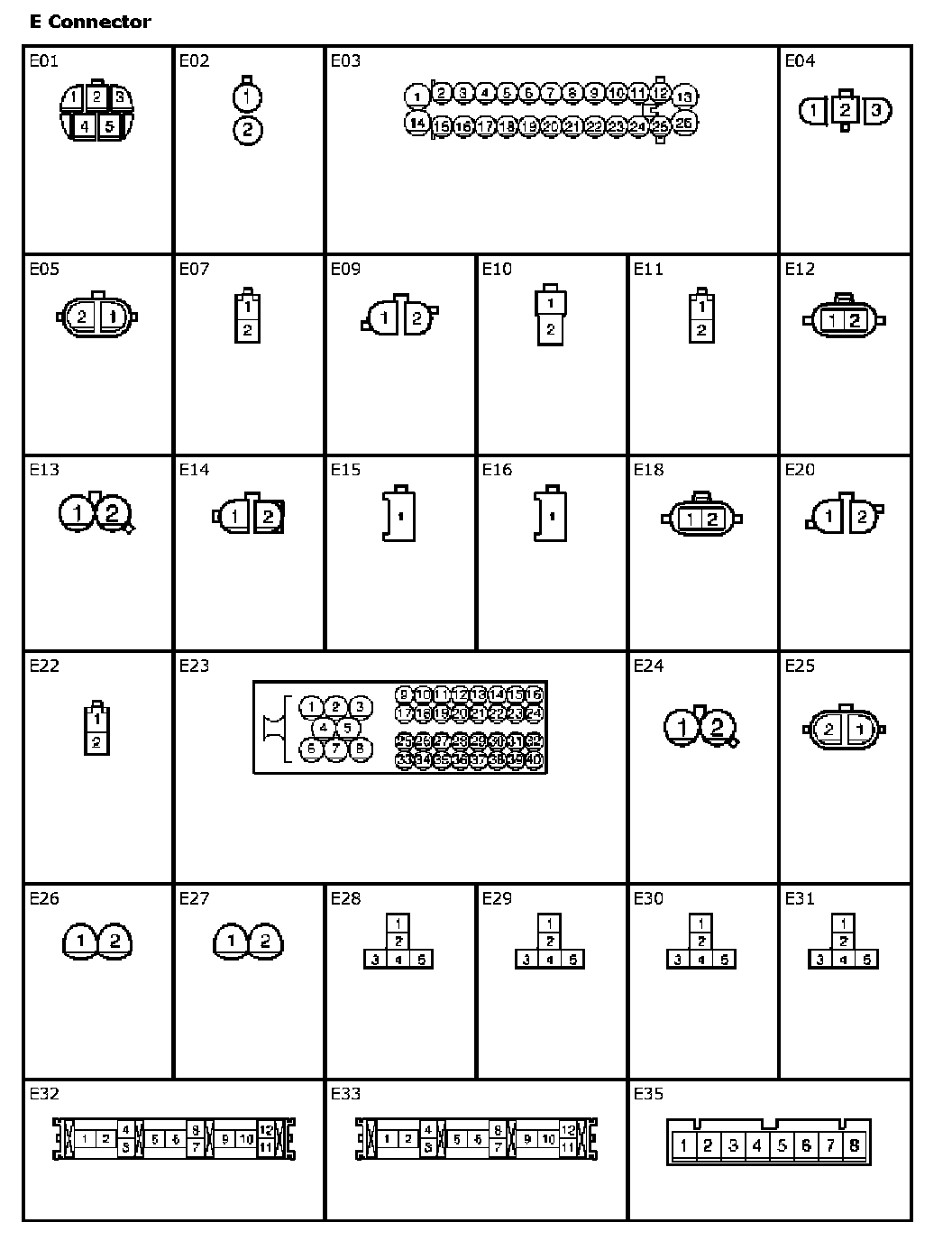

E01 - E35:

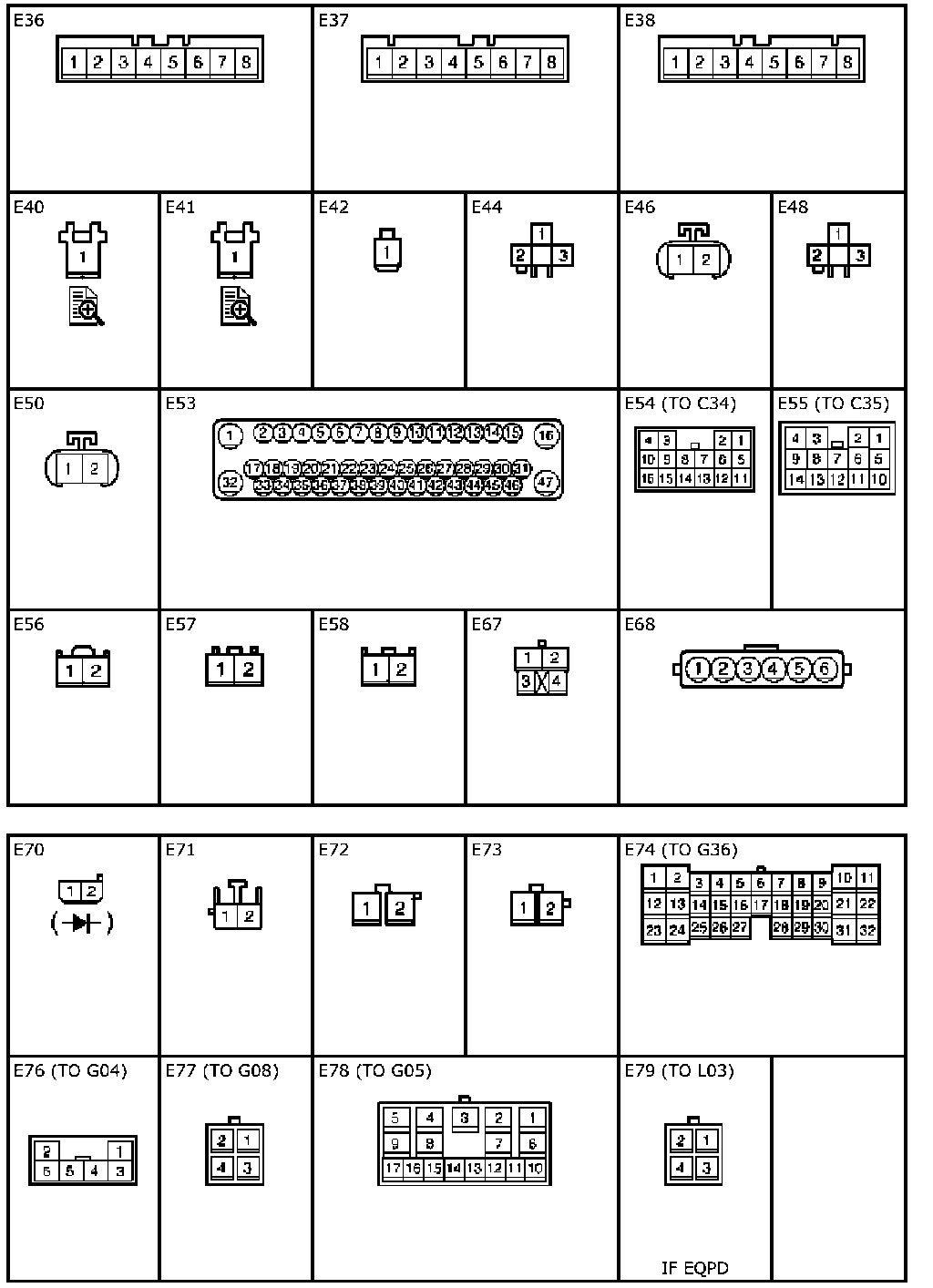

E36 - L03:

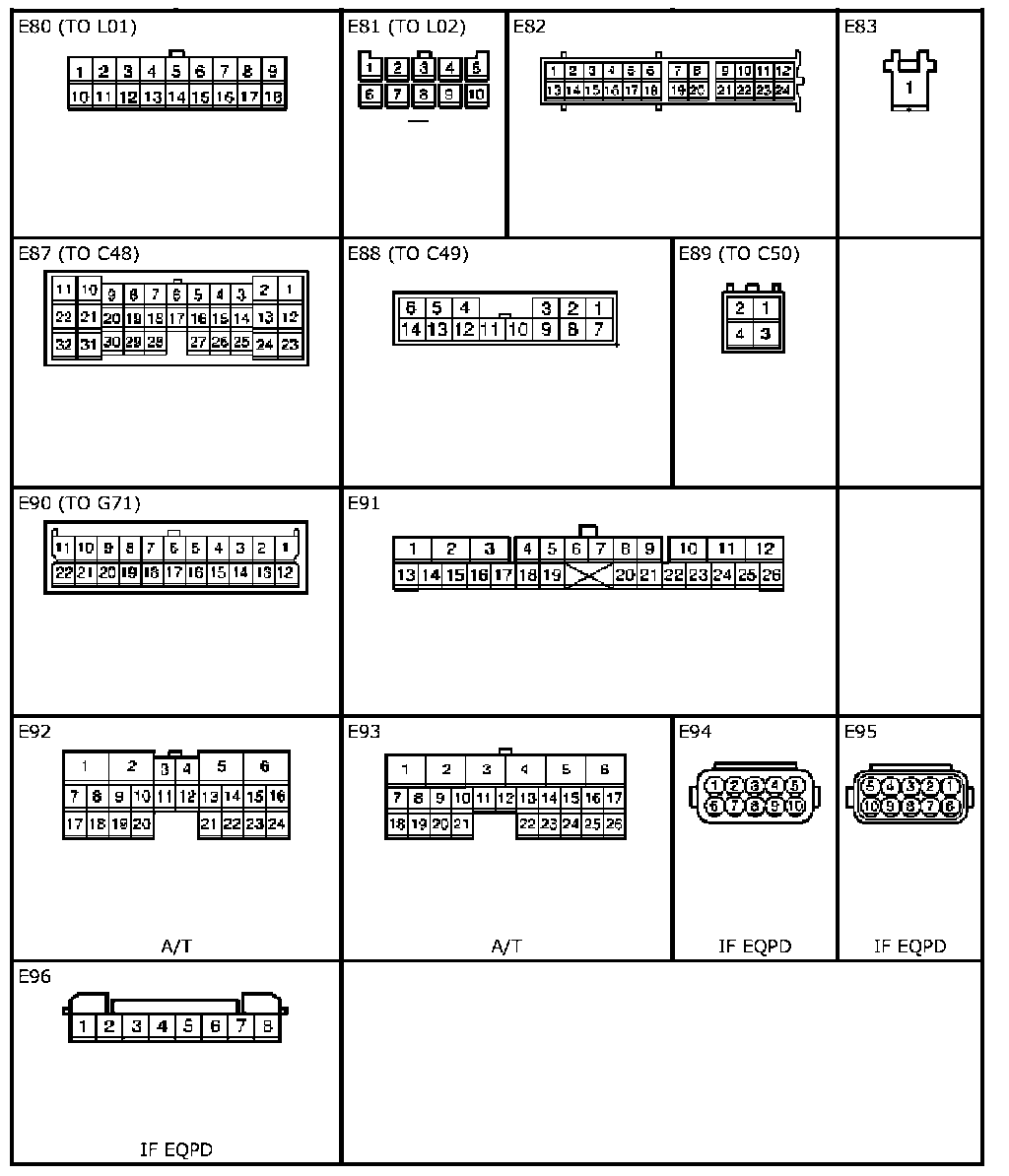

E80 - E96:
