Suzuki Truck
>>
2008
>>
Grand Vitara 4WD V6-2.7L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
ABS
>>

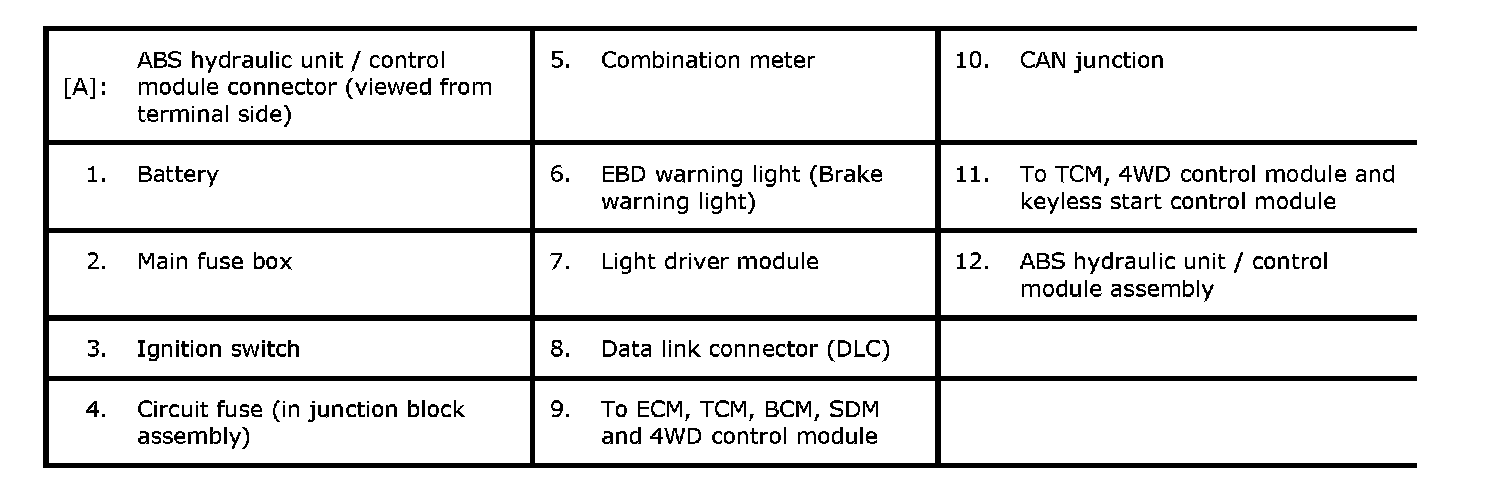

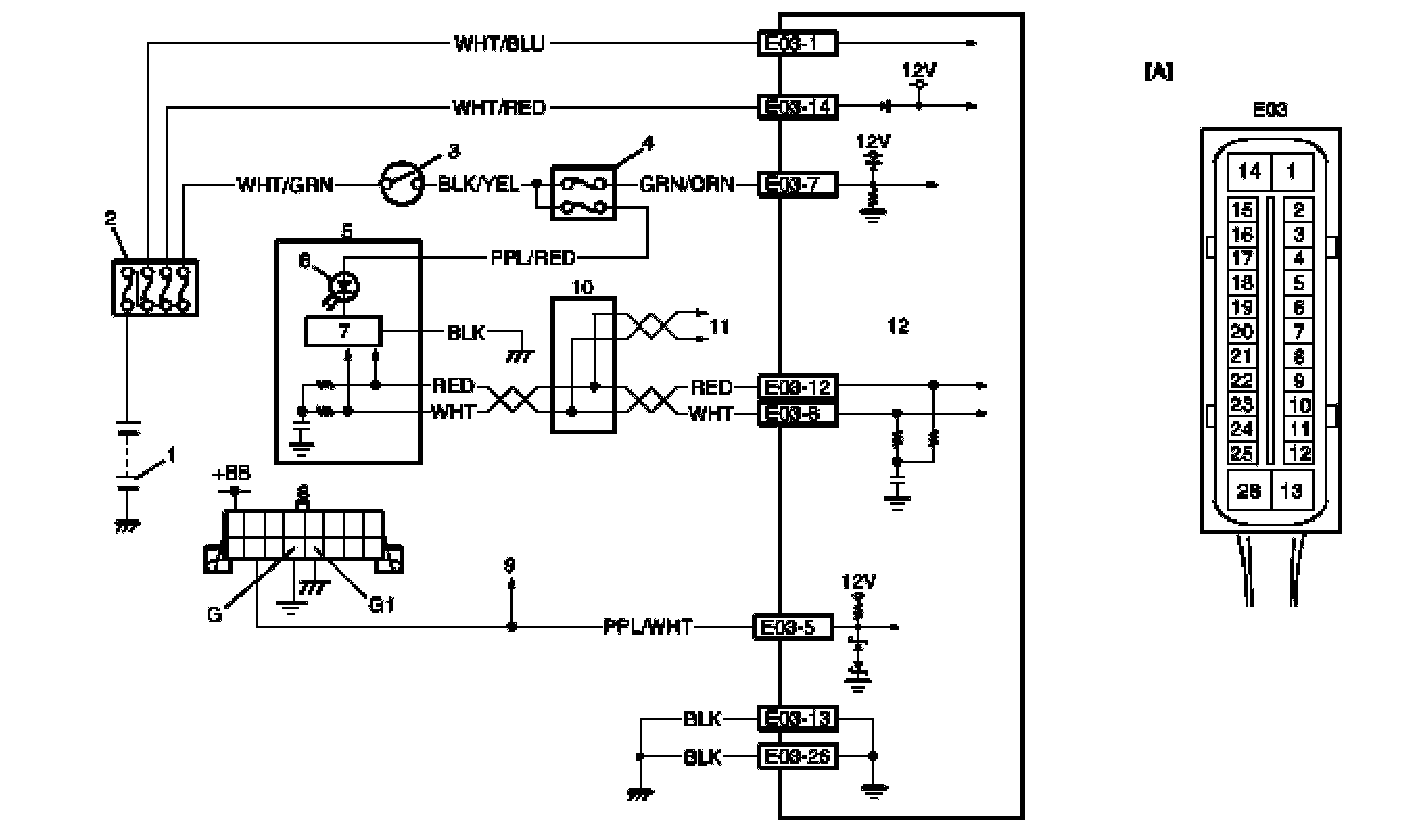

Serial Data Link Circuit Check
Serial Data Link Circuit Check
Serial Data Link Circuit Check
Inspection

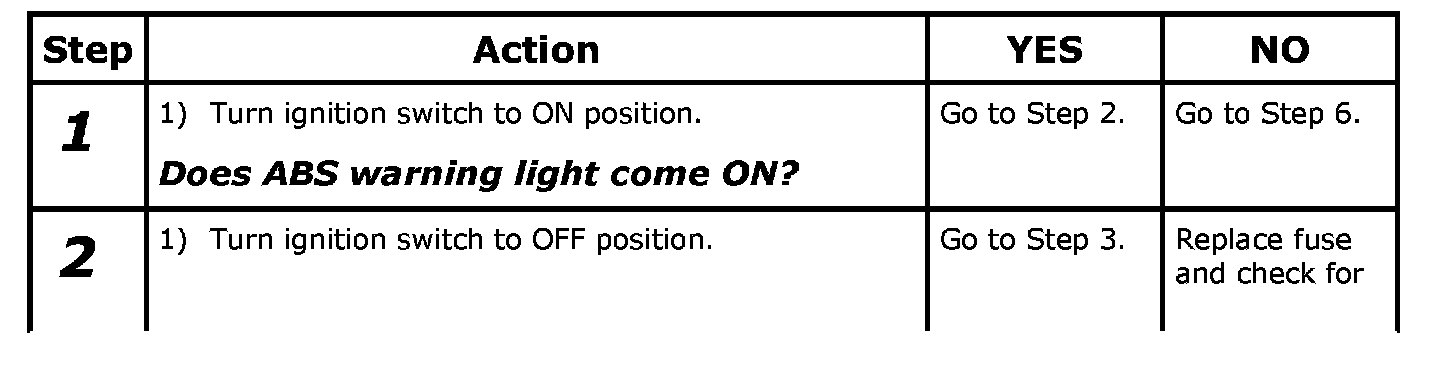

Step 1-Step 2:

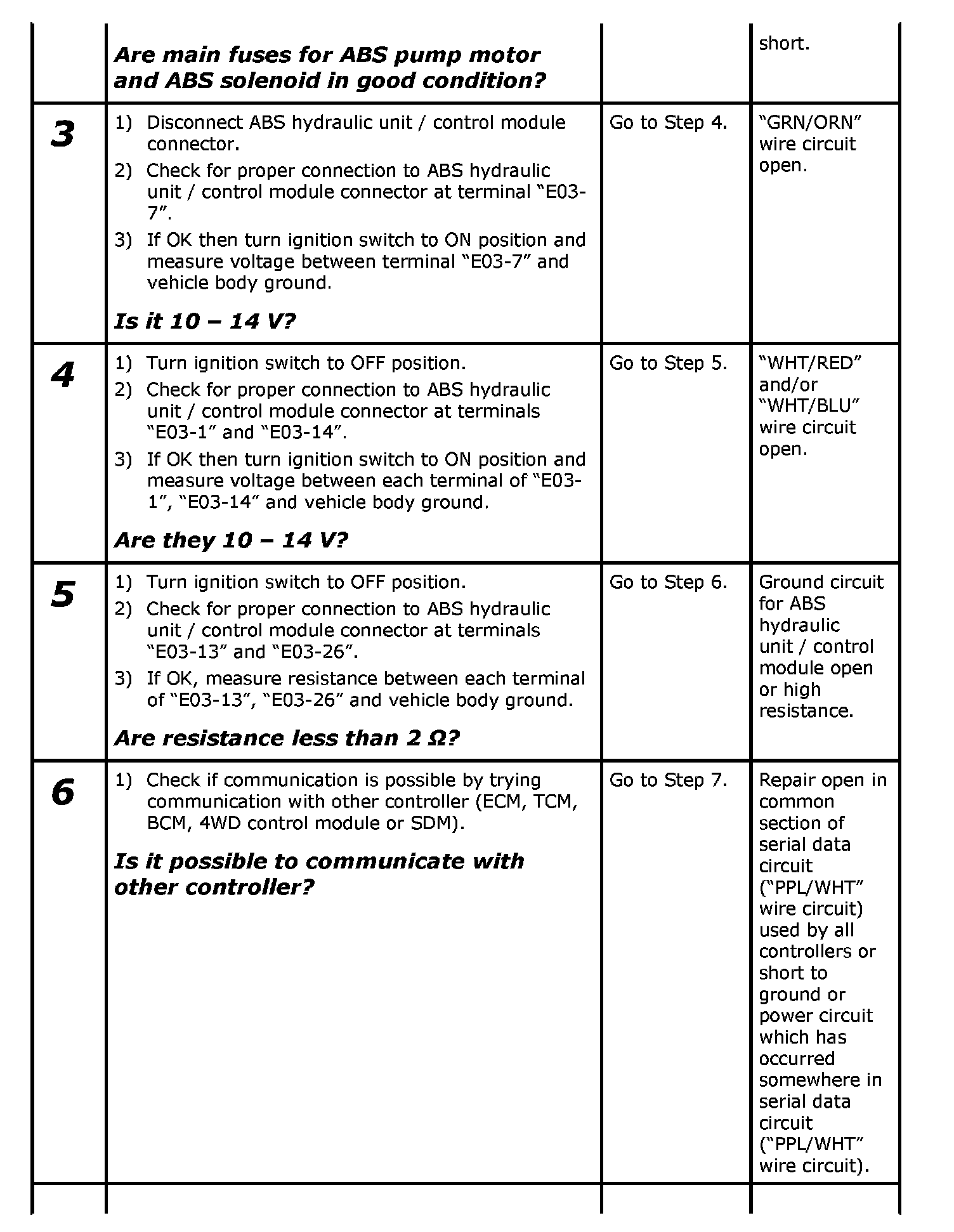

Step 3-Step 6:

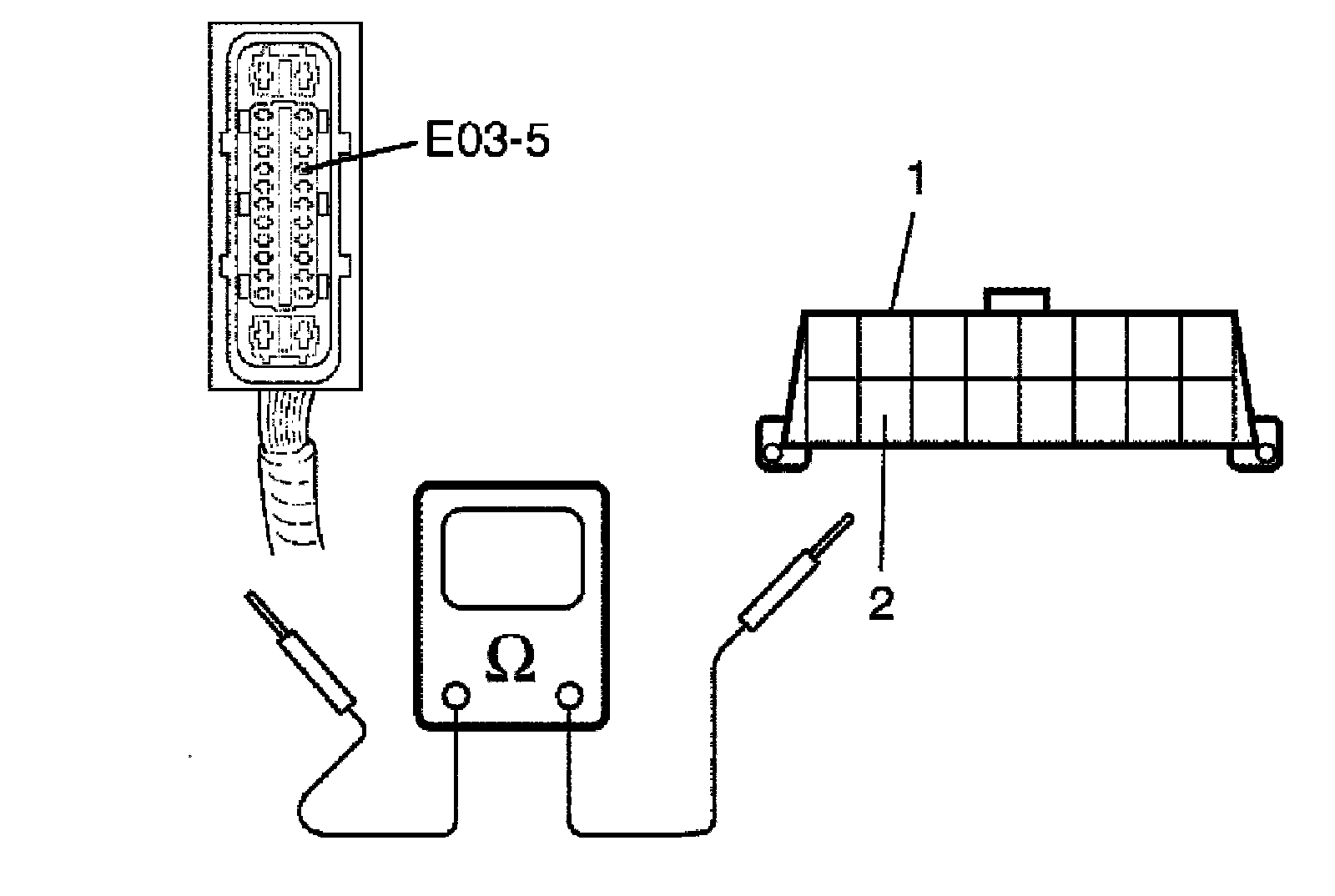

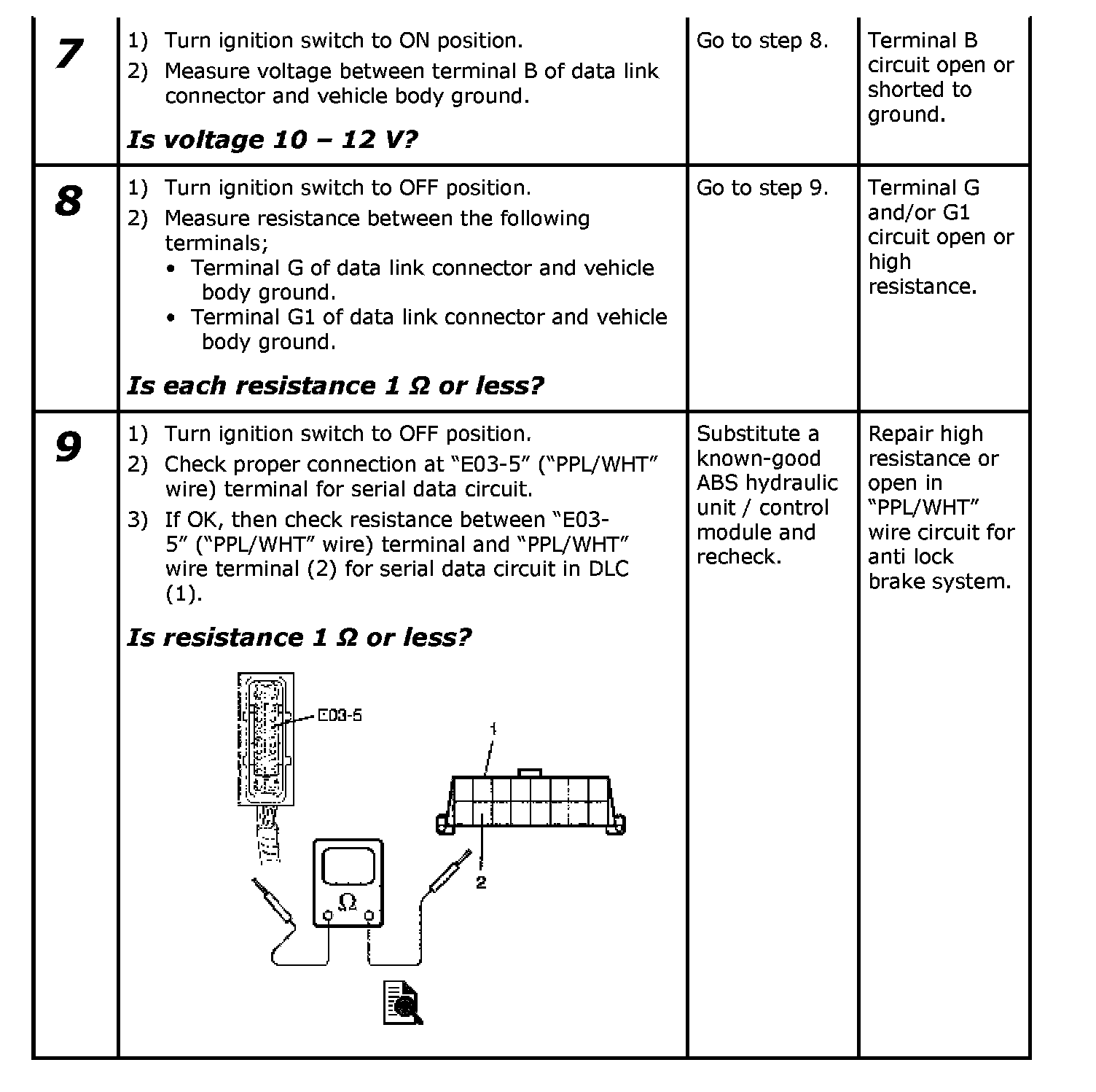

Step 7-Step 9:
