Body Control Systems

DTC U1101: Lost Communication with TCM (Reception Error)

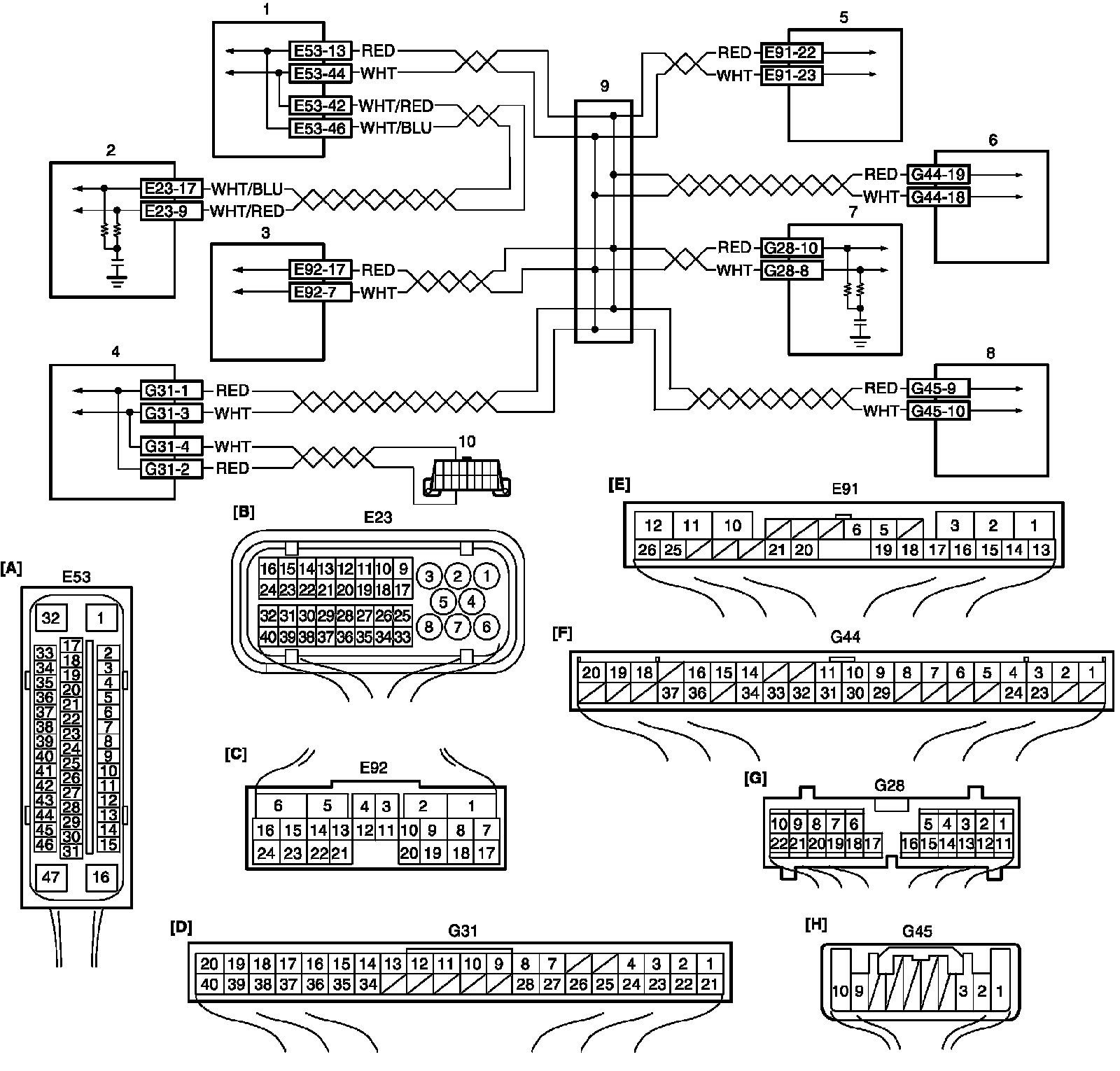

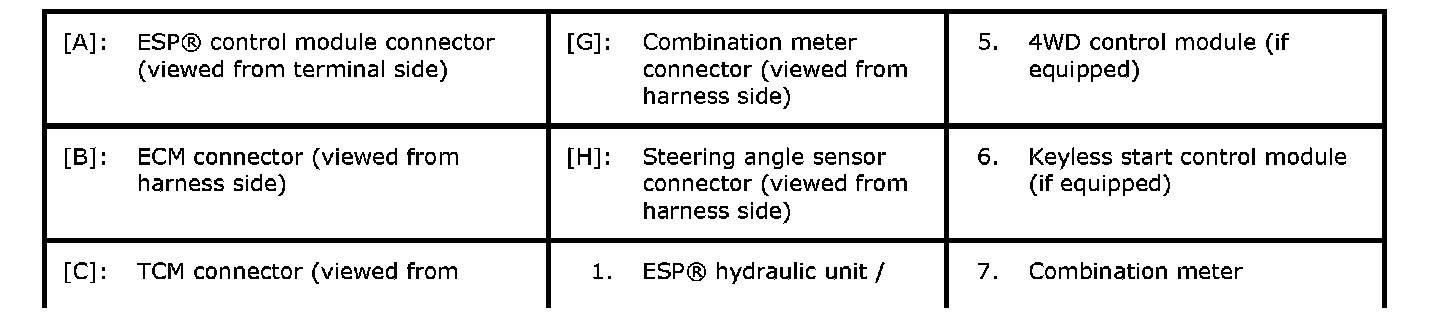

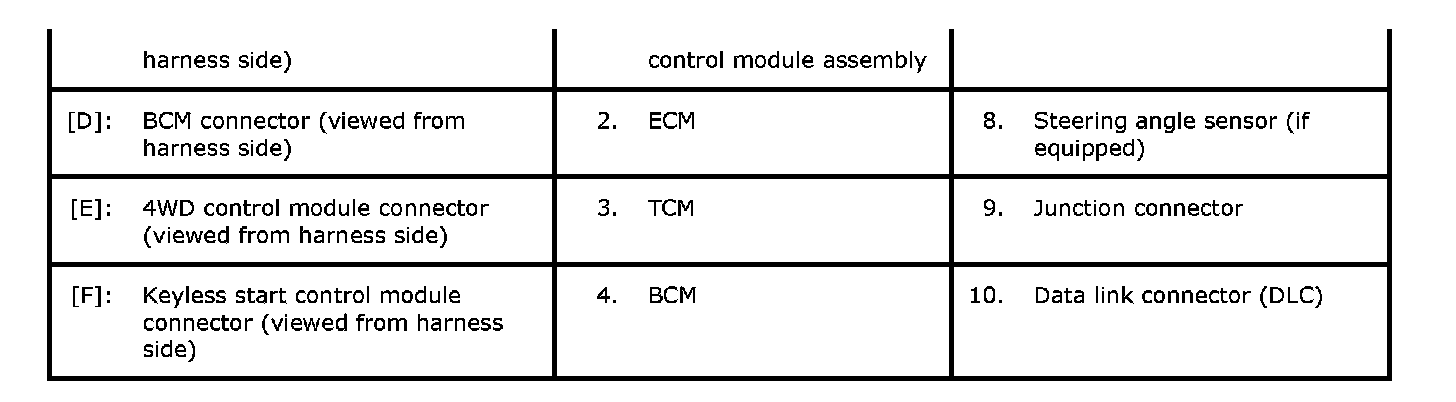

Wiring Diagram

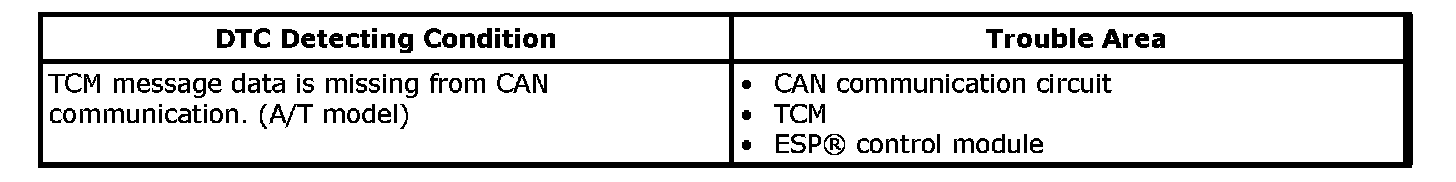

DTC Detecting Condition and Trouble Area





DTC Troubleshooting

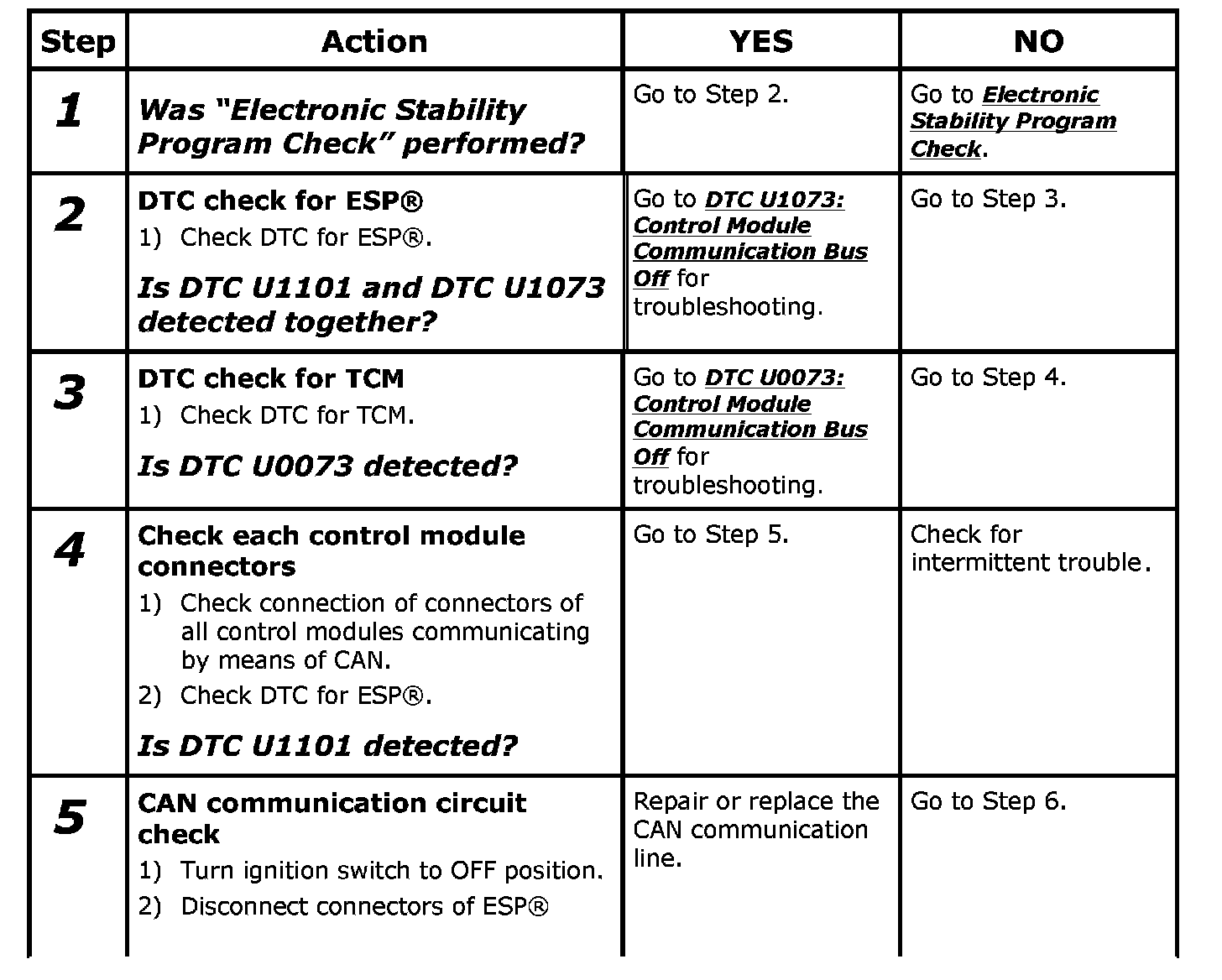

Step 1-Step 5:

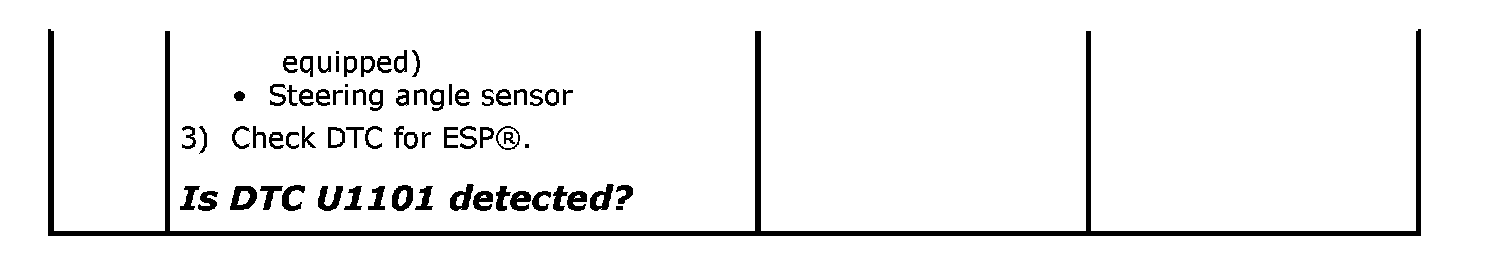

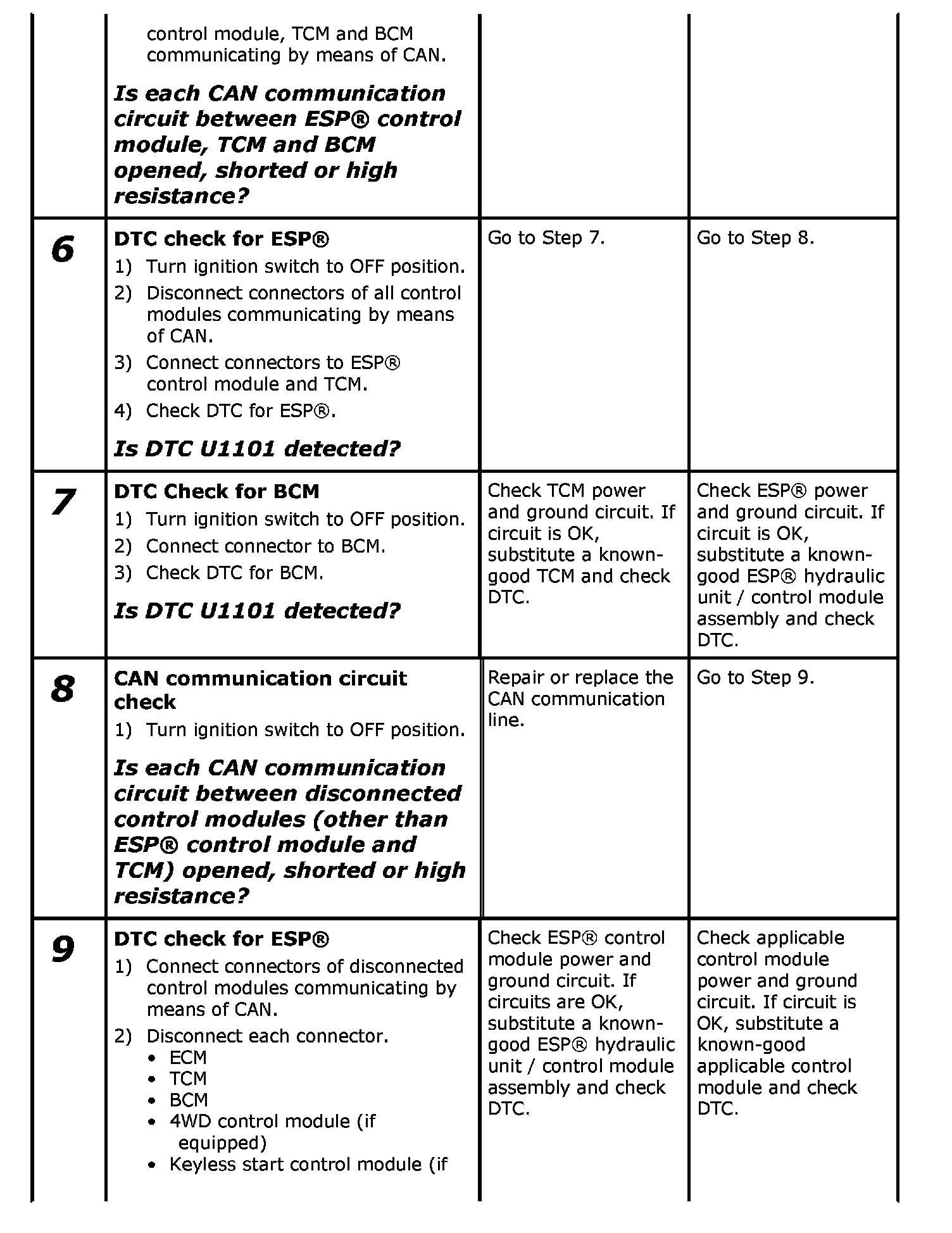

Step 6-Step 9:
