Immobilizer Control System

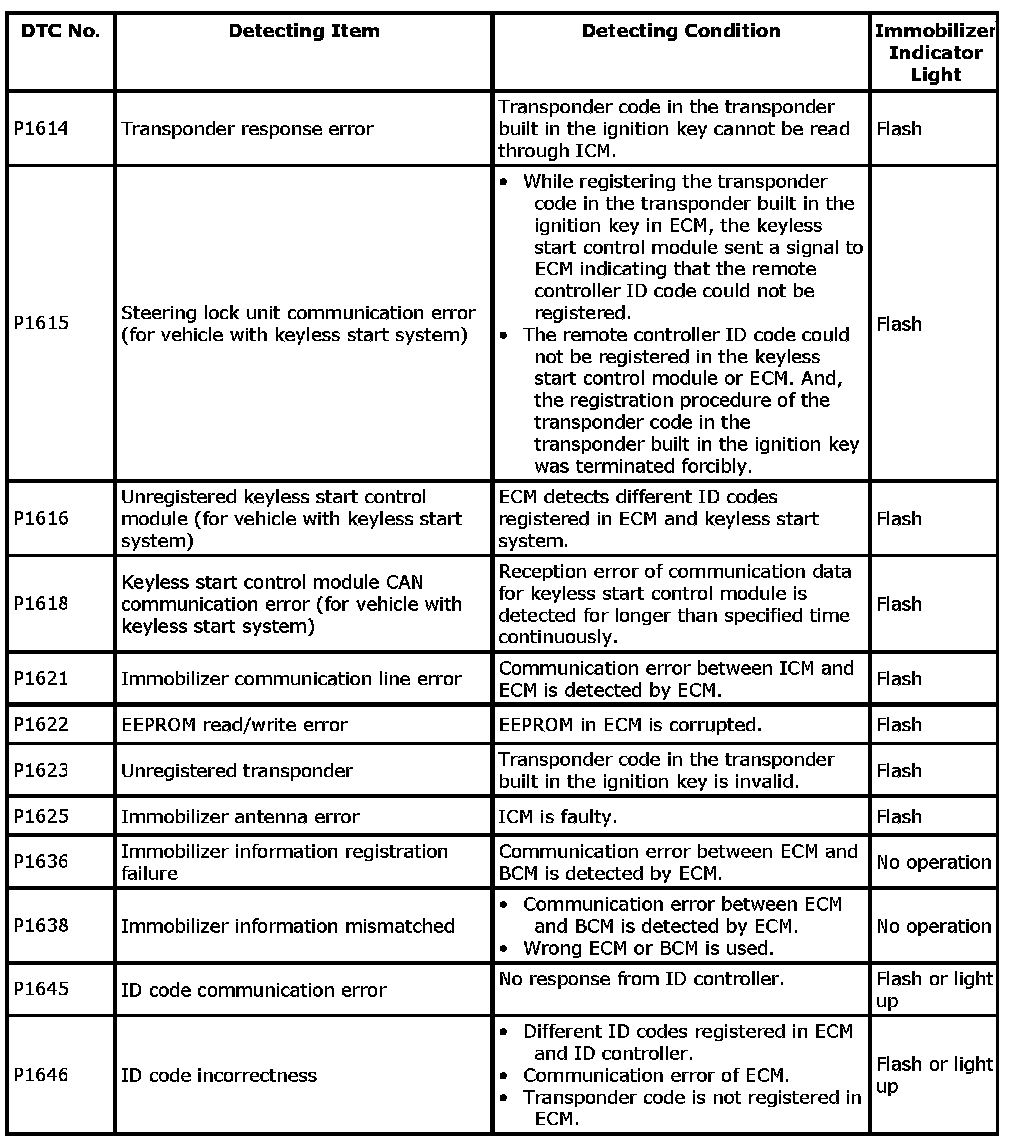

Diagnostic Trouble Code (DTC) Table

ECM

NOTE:
- ECM detects diagnostic trouble code (DTC). ICM does not.

P1614-P1646:

- If any DTC other than the above DTCs is detected, refer to DTC Table.
