DTC Table (Other than LCD model)

DTC Table (Other than LCD model)

NOTE: Be sure to perform Air Conditioning System Check before starting DTC troubleshooting. Air Conditioning System Check

B1562-B1521:

NOTE: When no abnormality is detected, "FRE" indicator light and "REC" indicator light repeat cycle of ON for 2 seconds and OFF for 1 second.

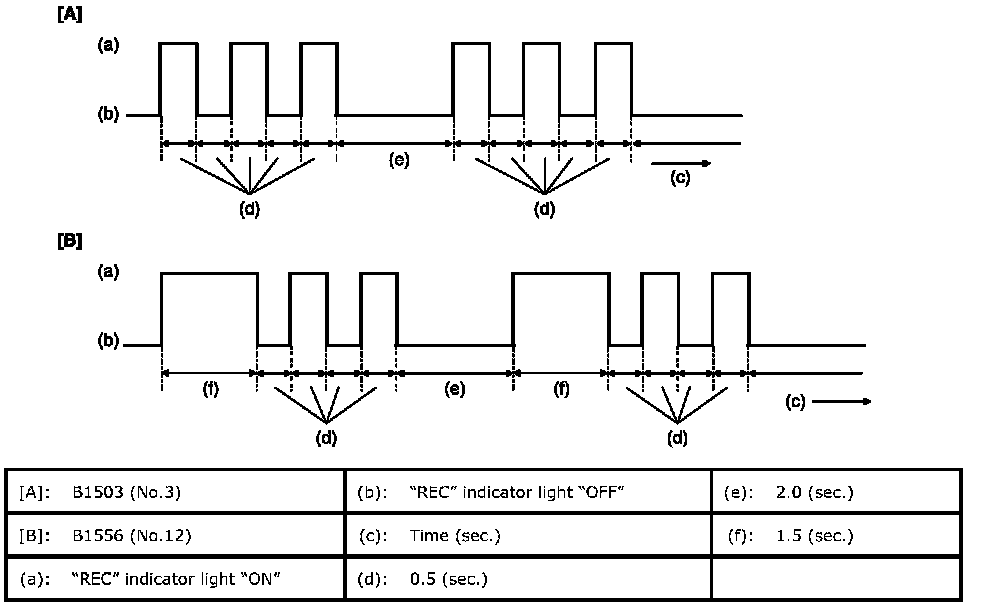

Example of "REC" Indicator Light Flashing Pattern

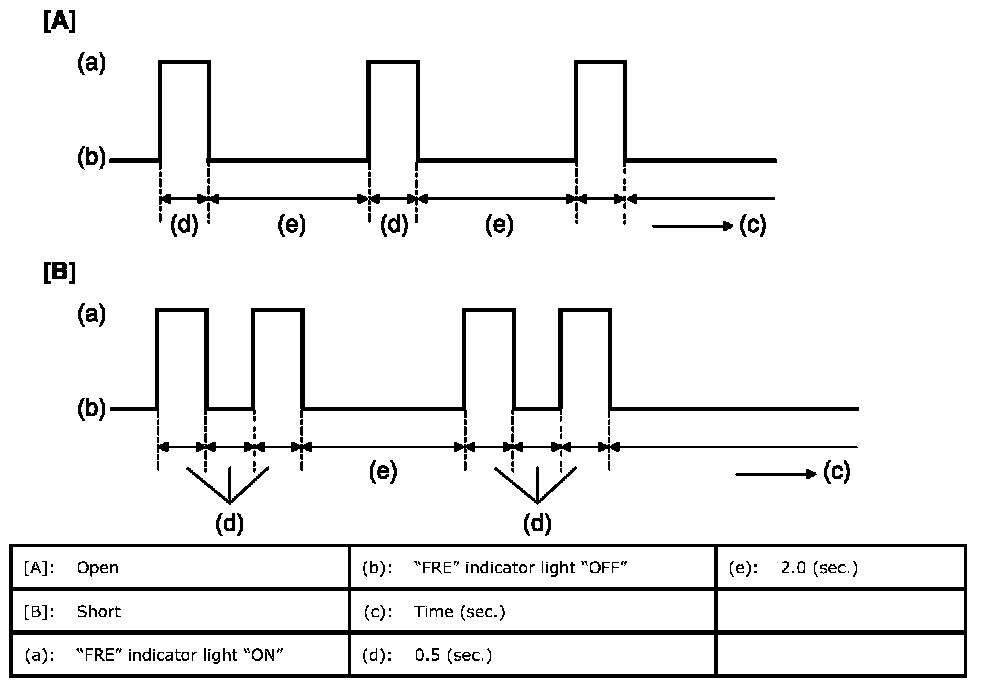

Example of "FRE" Indicator Light Flashing Pattern






NOTE: Locked actuator, data error and refrigerant pressure malfunction are indicated by flashing pattern of "FRE" indicator light specified for each of them.

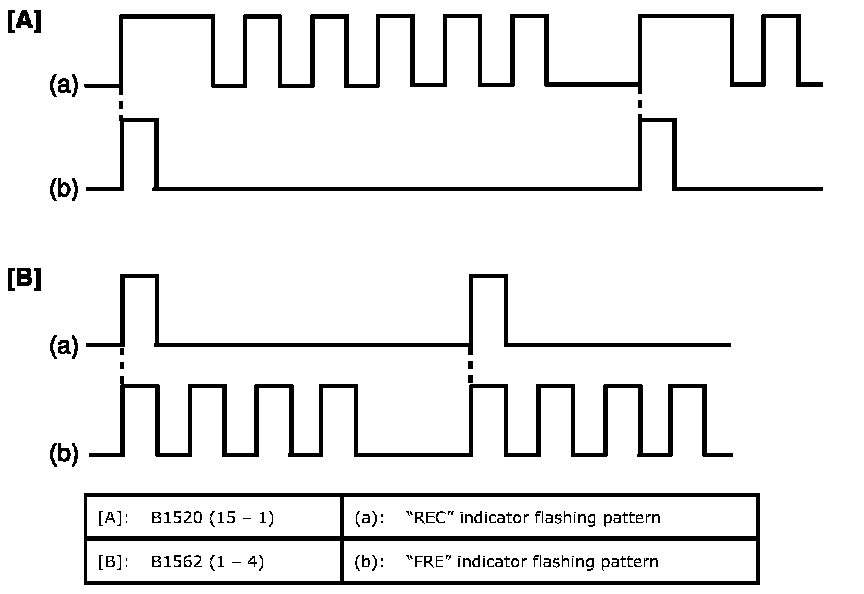

Display Timing of "FRE" Indicator Light and "REC" Indicator Light
Code with short display time waits until display of code with long display time is over.
