A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Air Conditioning System
>>

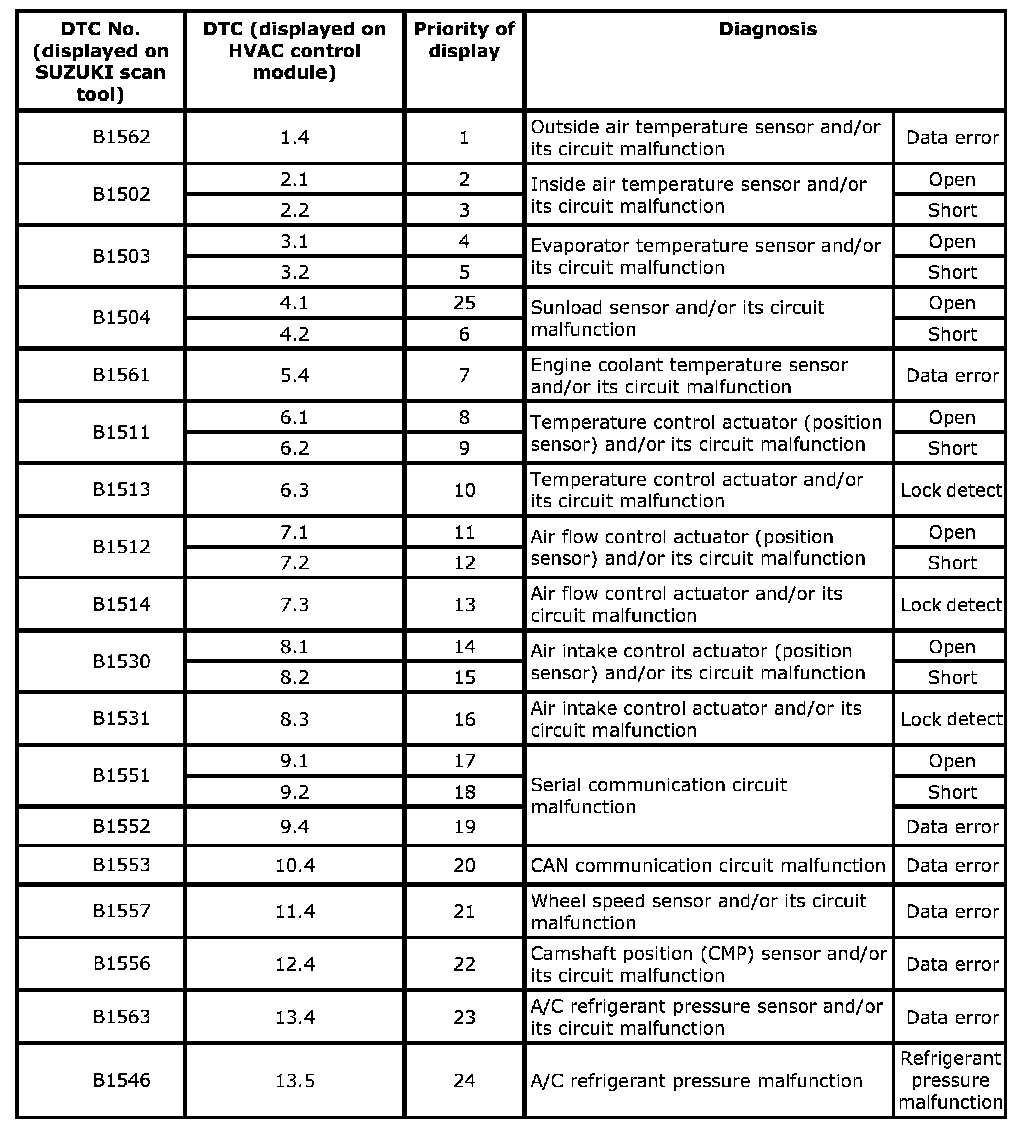

DTC Table (LCD model)
DTC Table (LCD model)
DTC Table (LCD model)
NOTE:
Be sure to perform Air Conditioning System Check before starting DTC troubleshooting.
Air Conditioning System Check
B1562-B1546:
