Transmission Mount: Service and Repair

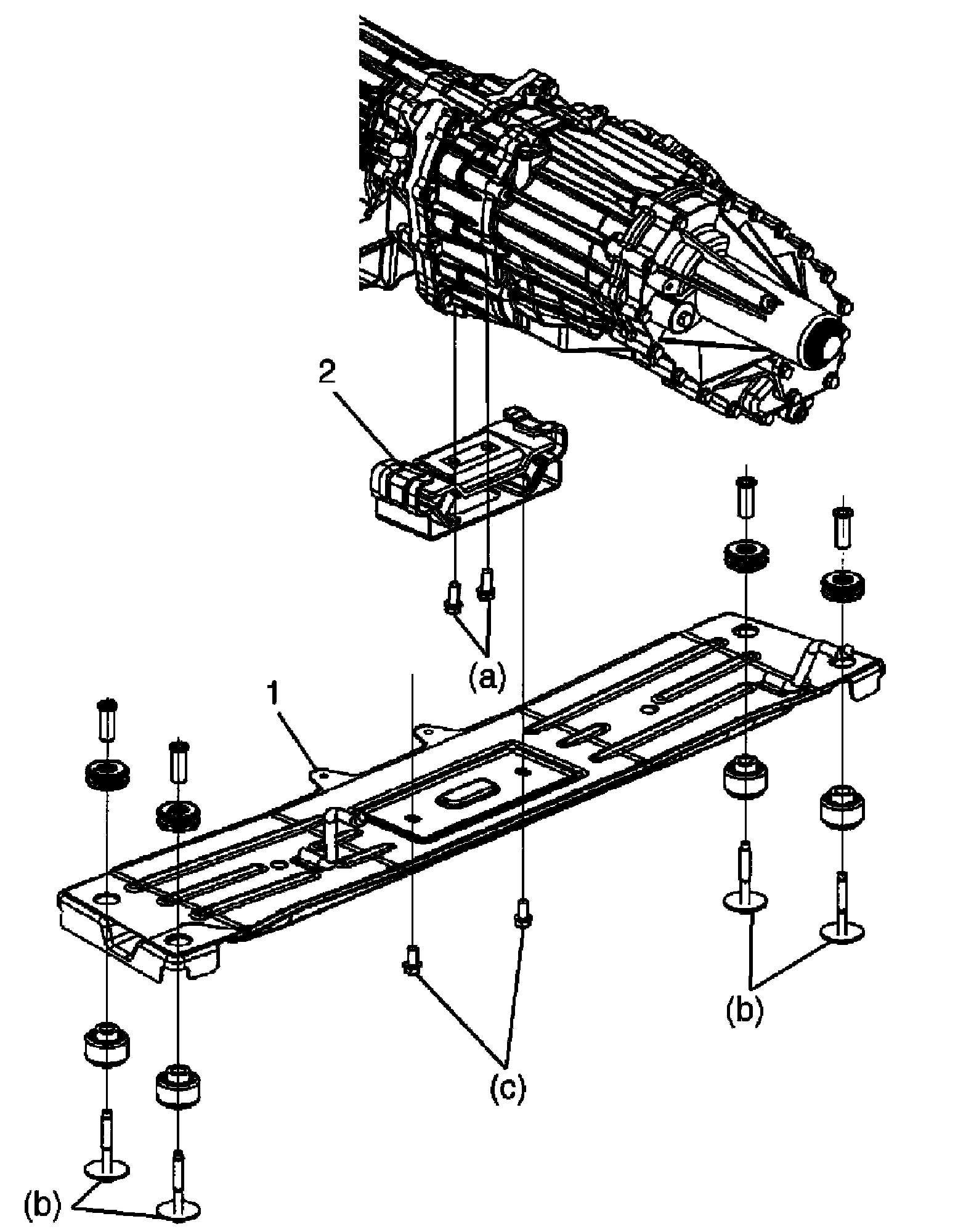

Engine Rear Mounting Replacement
When replacement of mounting parts are necessary, torque bolts as specified below.
Tightening torque
Engine rear mounting No.1 bolt (a): 55 Nm (5.5 kg-m, 40.0 ft. lb.)
Engine rear mounting member bolt (b): 55 Nm (5.5 kg-m, 40.0 ft. lb.)
Engine rear mounting No.2 bolt (c): 55 Nm (5.5 kg-m, 40.0 ft. lb.)
