Transmission Shift Control Lever Removal and Installation
Transmission Shift Control Lever Removal and InstallationRemoval
1) Remove front console box.

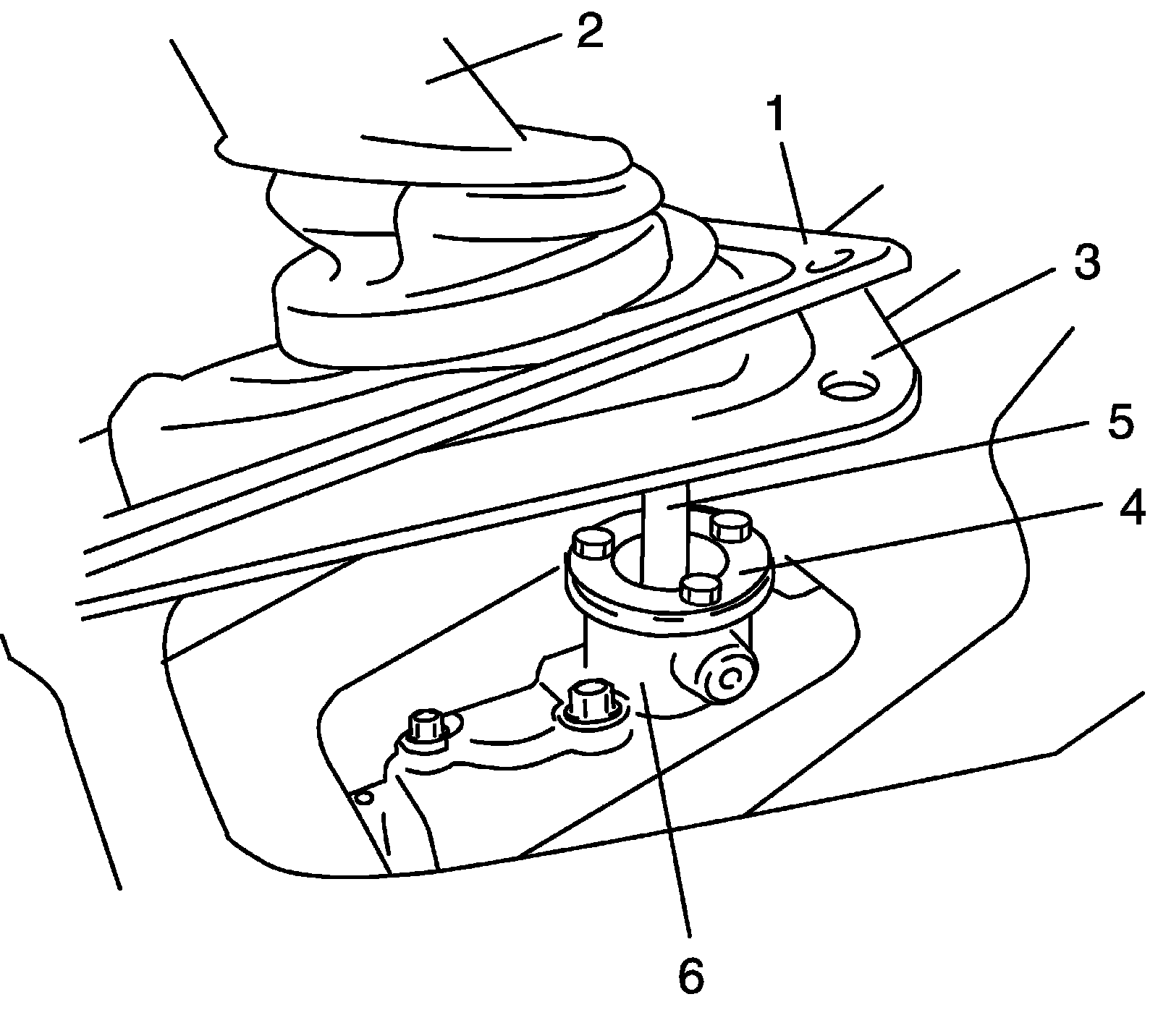

2) Lift up boot cover (1), boot (2) and sheet (3).
3) Remove case cover (4) and take out shift control lever (5) from gear shift lever rear case (6).
Installation

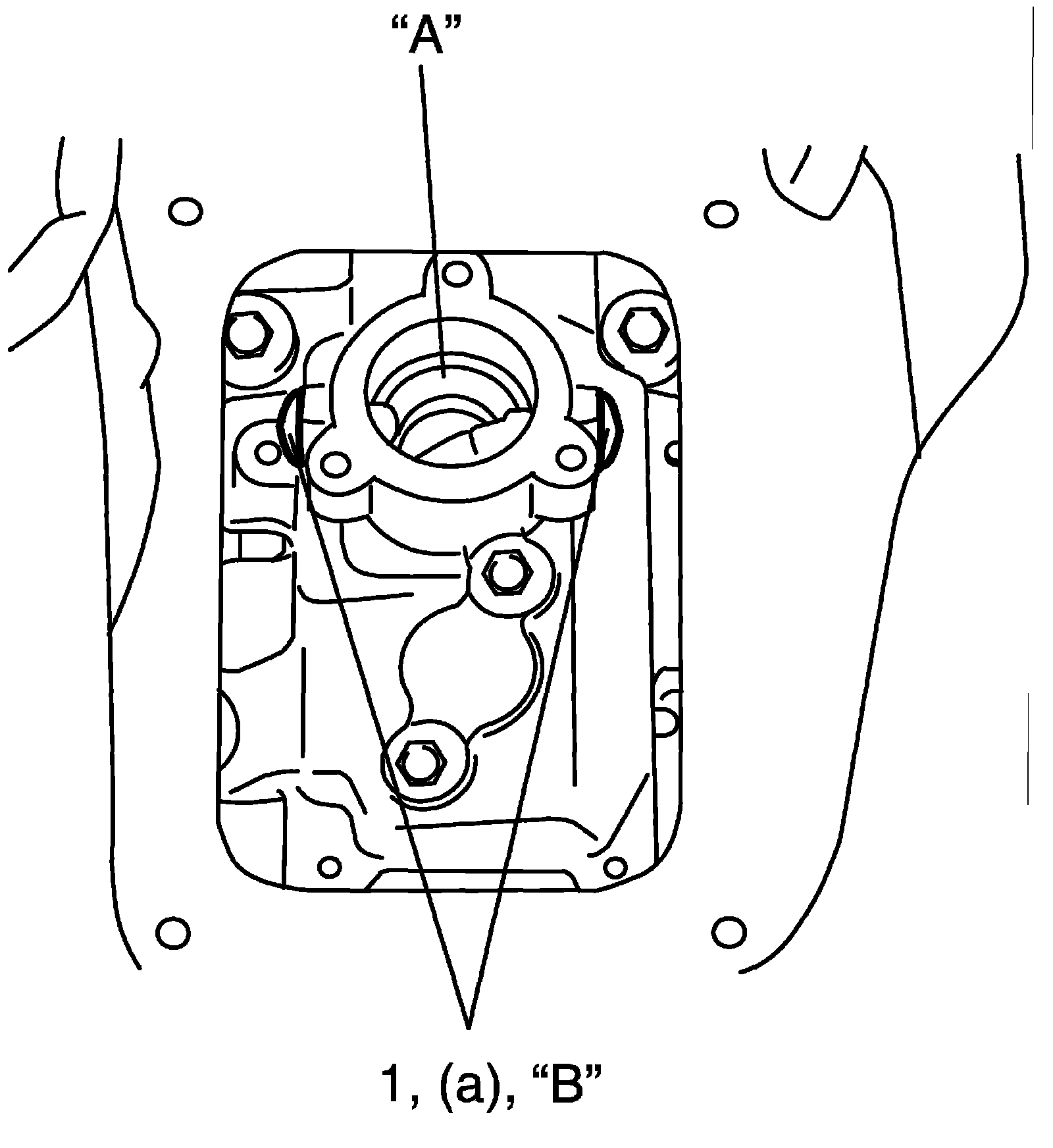

1) Tighten new control lever locating bolts (1) to specified torque, if removed.
Tightening torque
Control lever locating bolt (a): 10 Nm (1.0 kg-m, 7.5 ft. lb.)
2) Apply grease to pivot portions and seat, then install shift control lever.
"A": Grease 99000-25010 (SUZUKI Super Grease A)

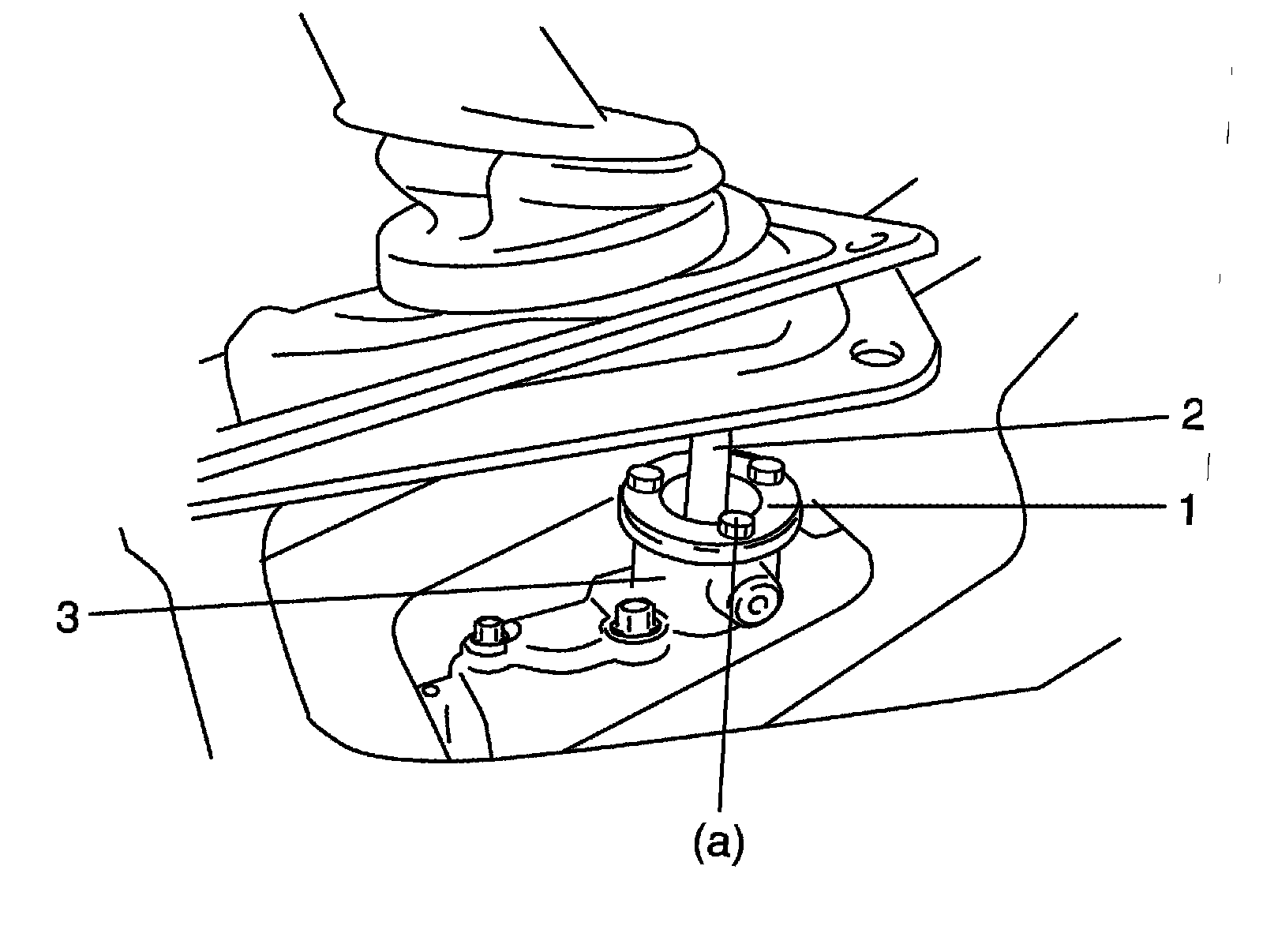

3) Set shift control lever (2) to gear shift lever rear case.
4) Install case cover (1) to gear shift lever rear case (3). Tighten case cover bolt to specified torque.
Tightening torque
Case cover bolt (a): 10 Nm (1.0 kg-m, 7.5 ft. lb.)

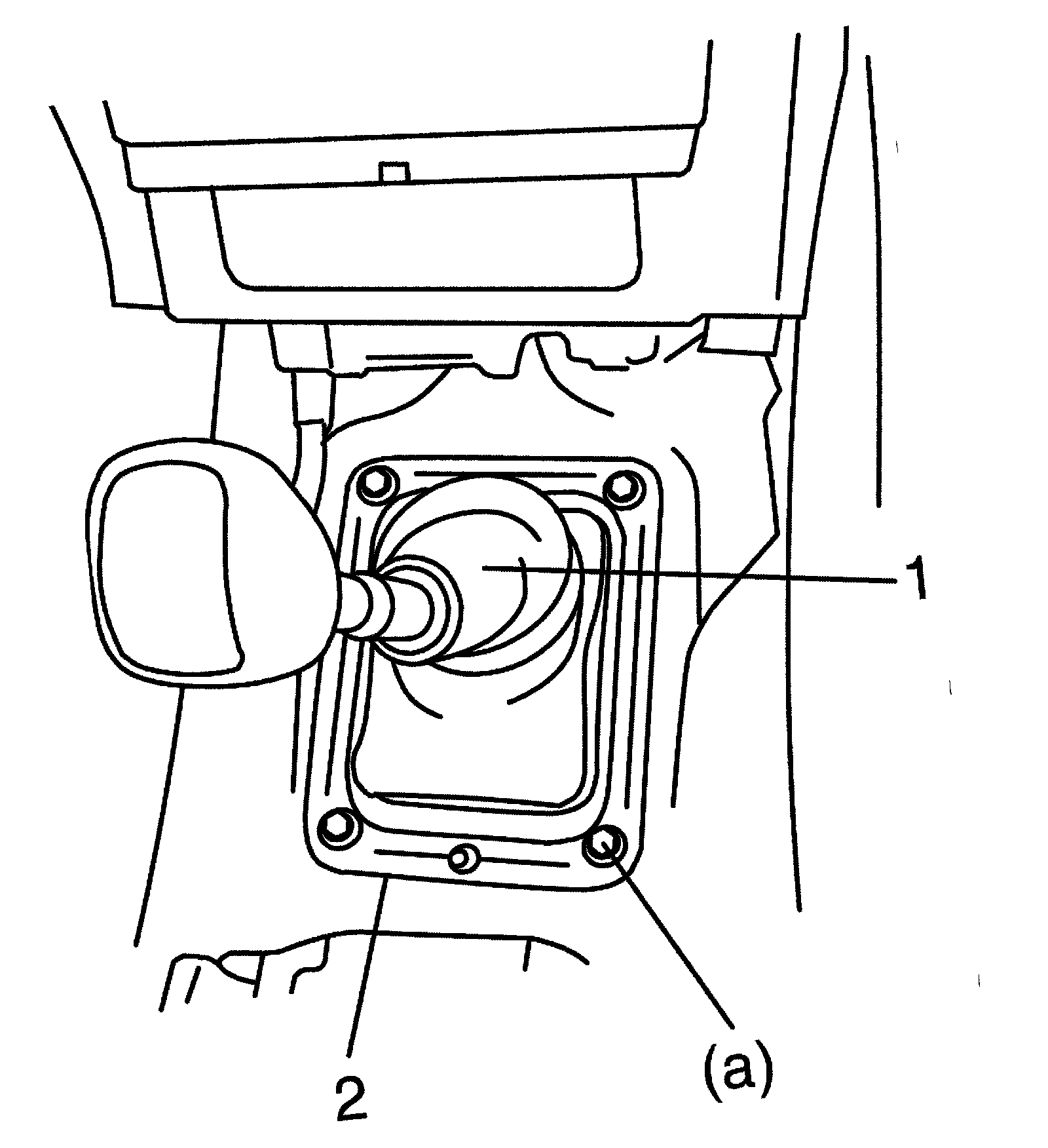

5) Install sheet, boot (1) with boot cover (2) to floor panel.
Tightening torque
Control lever boot cover bolt (a): 12 Nm (1.2 kg-m, 9.0 ft. lb.)
6) Install front console box.
