No Lock-Up Occurs
No Lock-Up OccursSystem Description
TCM turns TCC solenoid OFF under any of the following conditions.
^ Engine coolant temperature is lower than 60 degrees C (140 degrees F).
^ 4L/N switch is turned ON. (4L mode)
^ Brake light switch is turned ON. (Brake pedal is depressed)
^ TCM detects the following DTCs.
P0962, P0963, P0966, P0967, P0970, P0971, P0973, P0974, P0976, P0977, P0985, P0986, P1702, P1703, P2763, P2764, U0073 and/or U0100
Troubleshooting
WARNING:
^ When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
^ Road test should be carried out with 2 persons, a driver and tester, on a level road.

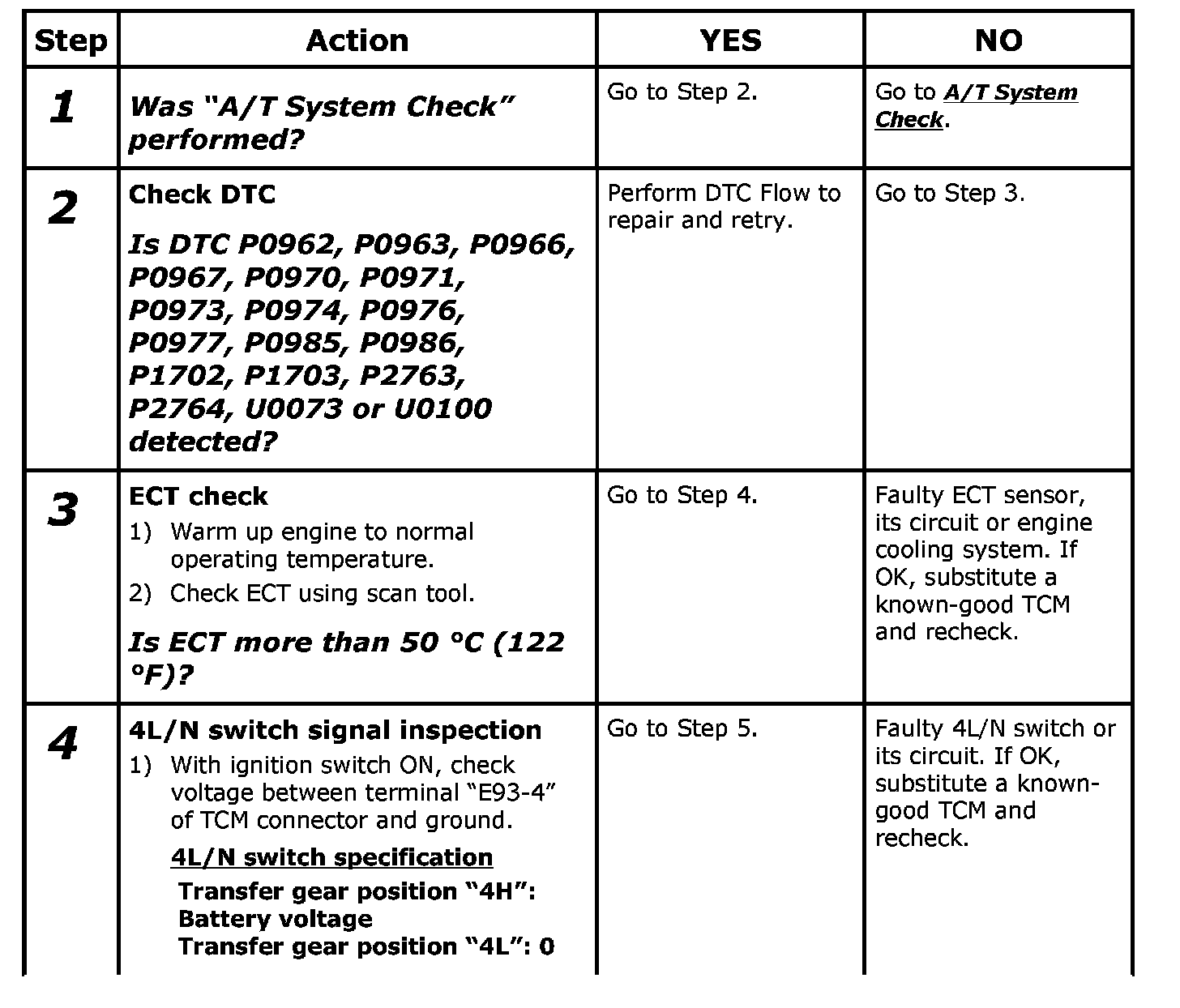

Step 1-Step 4:

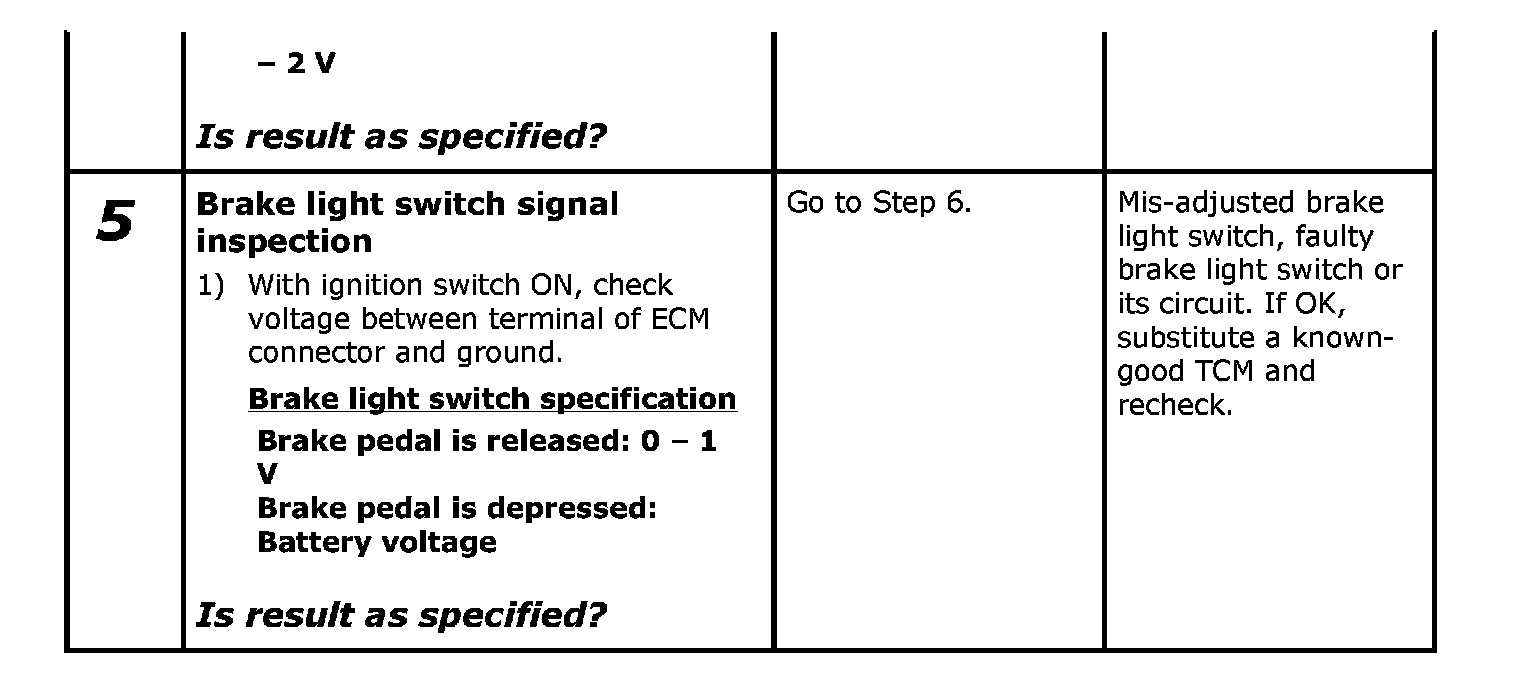

Step 5:
