Select Lever Knob Installation

Select Lever Knob Installation

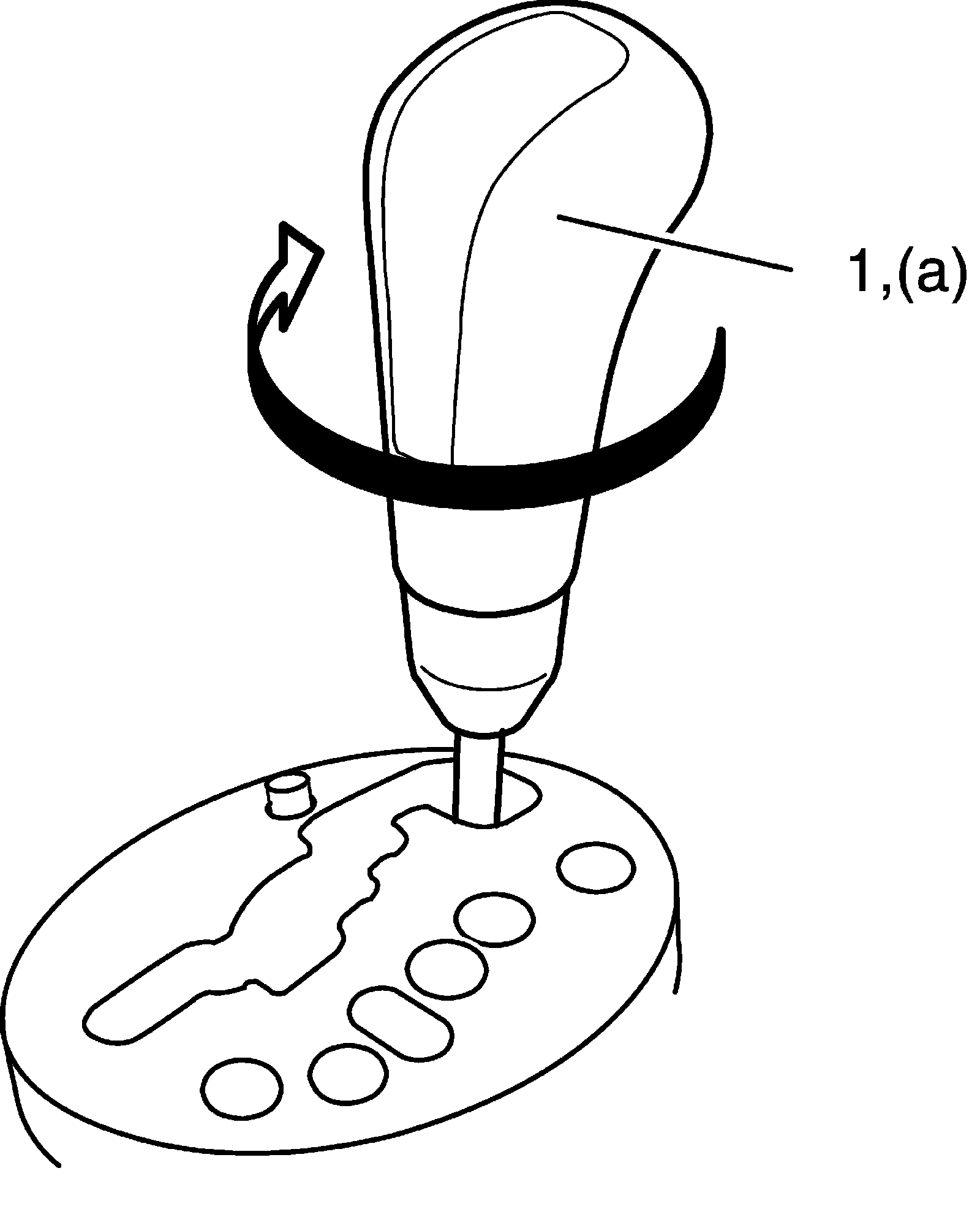

Screw select lever knob onto select lever by specified numbers of rotation below.
Rotation numbers for select lever knob
Installation (a): 13 - 14 rotations

CAUTION:
When installing select lever knob, do not turn more than specified numbers of rotation.
Otherwise select lever knob is damaged.
