Shift Solenoid: Service and Repair

Solenoid Valves (Shift Solenoid-A, Shift Solenoid-B, Shift Solenoid-E, TCC Solenoid, Pressure Control Solenoid-A, Pressure Control Solenoid-B, and Pressure Control Solenoid-C) Removal and Installation

Removal
1) Disconnect negative cable at battery.
2) Pull out fluid level gauge and lift up vehicle.
3) Remove exhaust No.1 pipe (1).

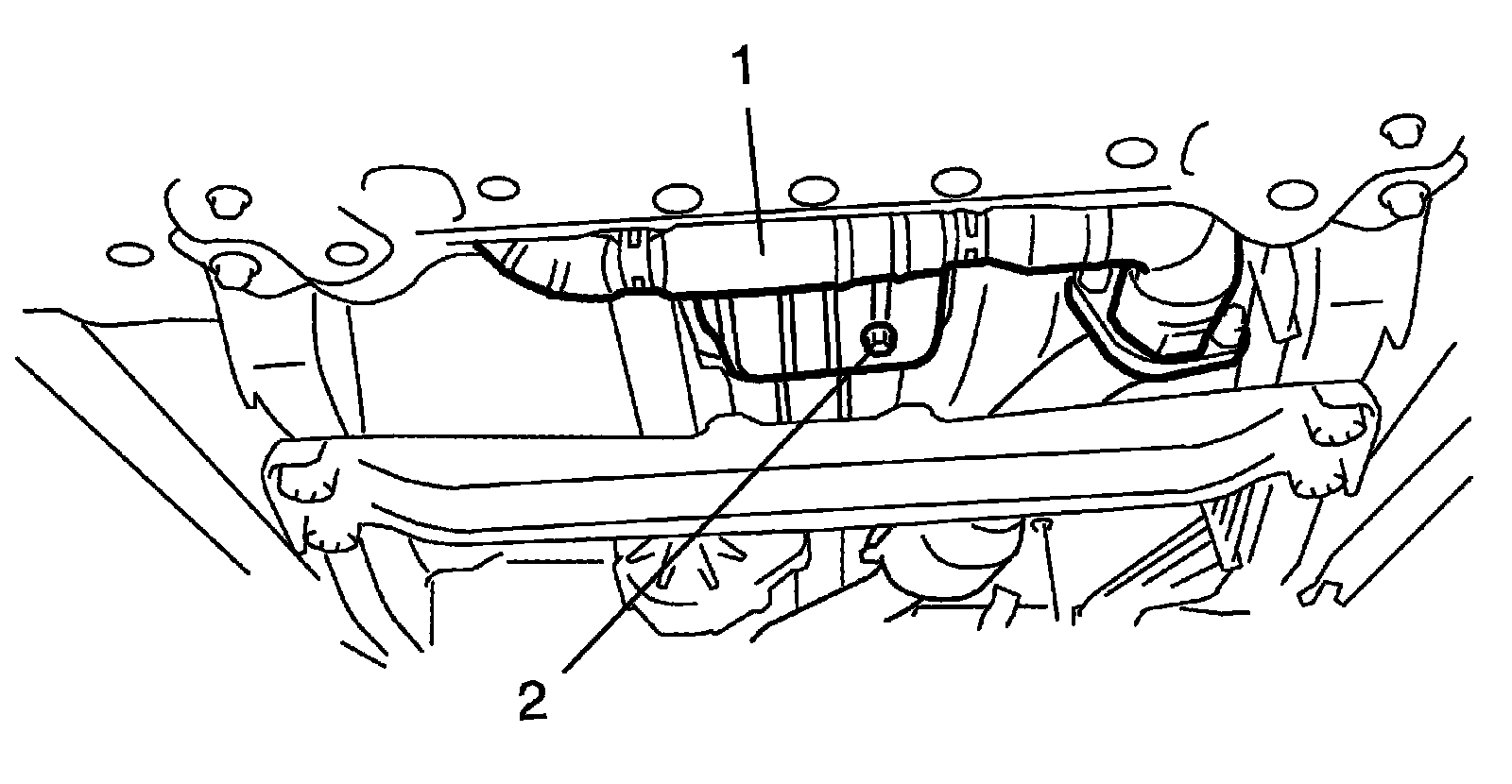

4) Remove drain plug (2) and drain A/T fluid.
5) Install drain plug (2).

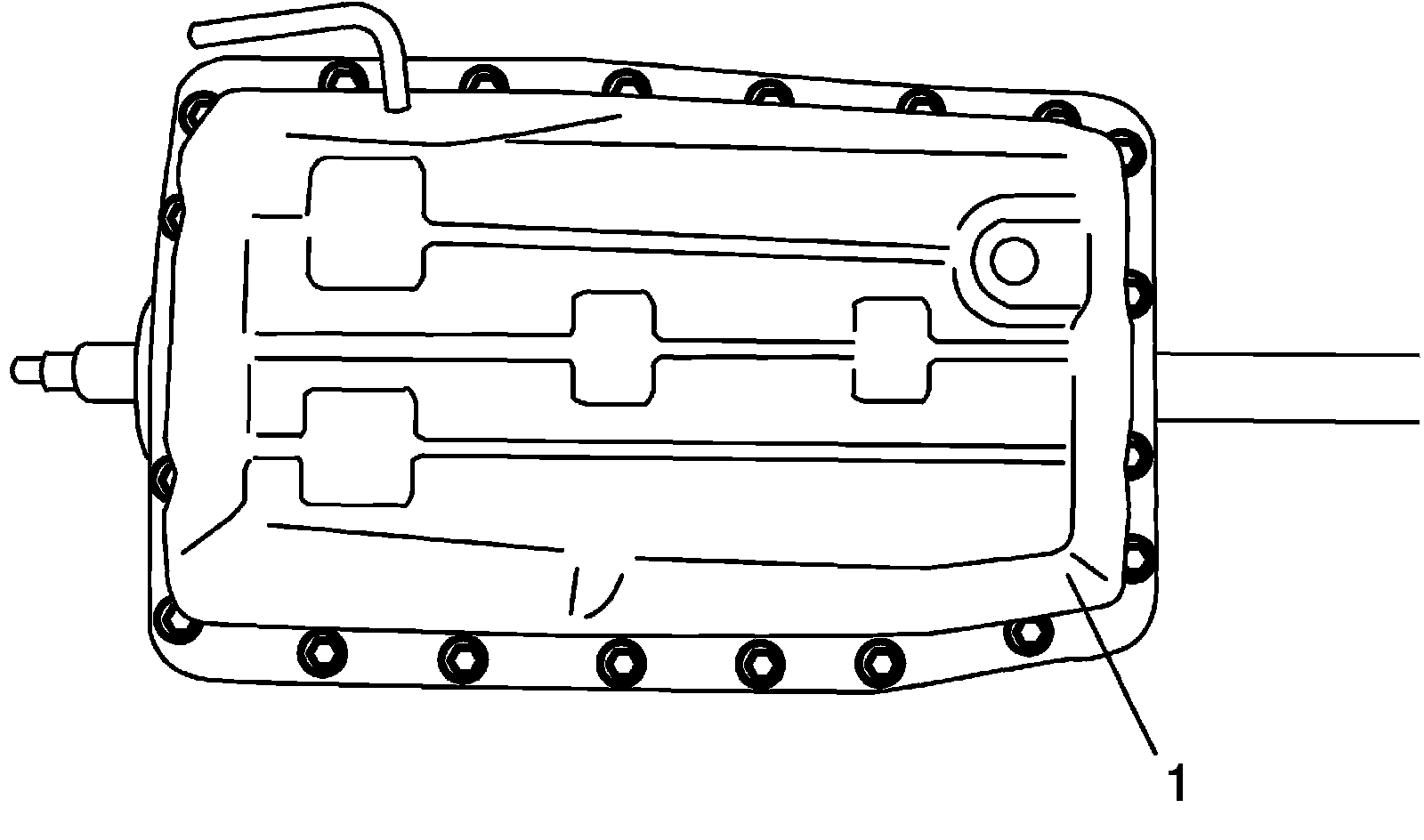

6) Remove A/T oil pan (1).

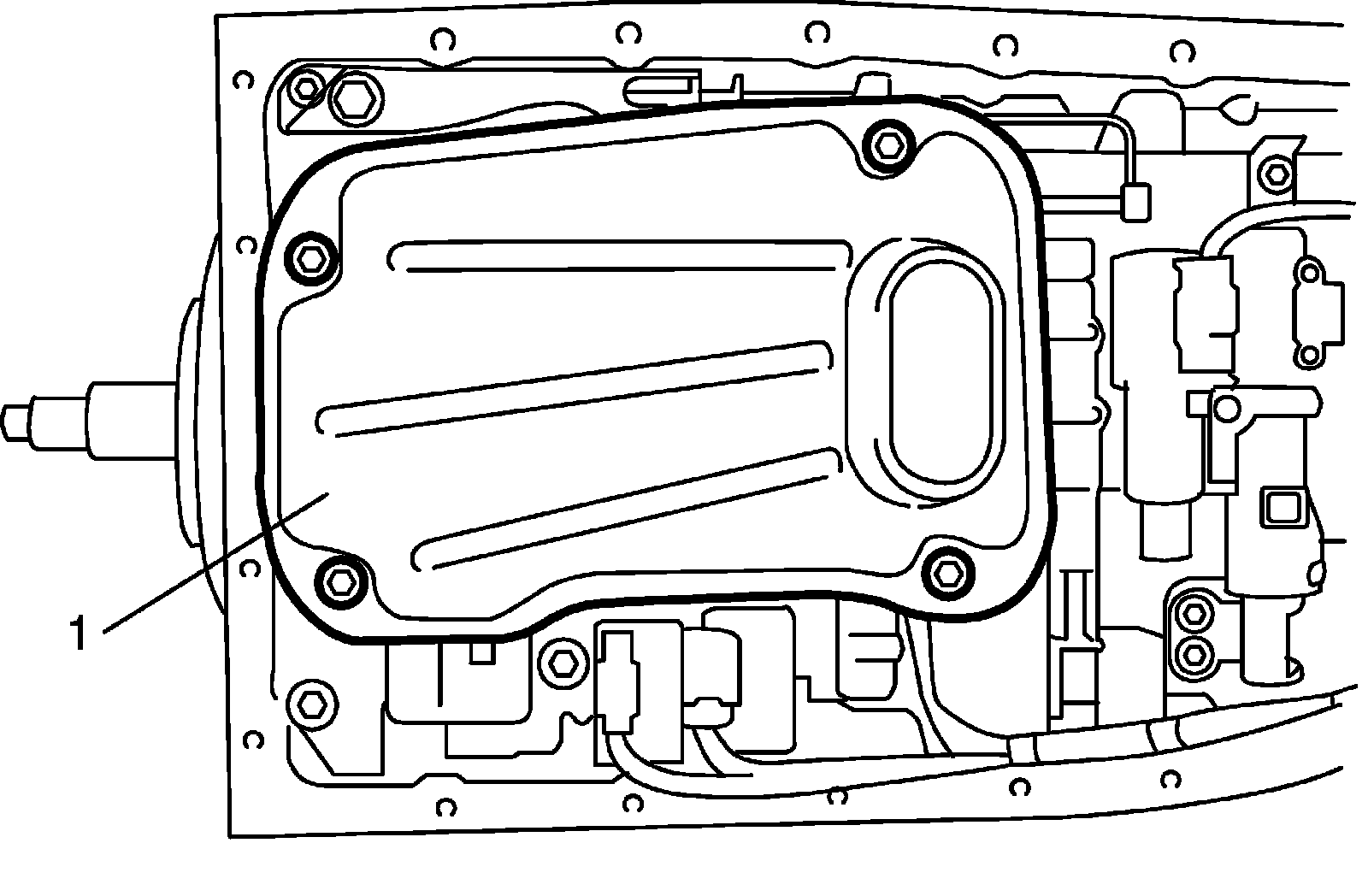

7) Remove A/T oil strainer (1).

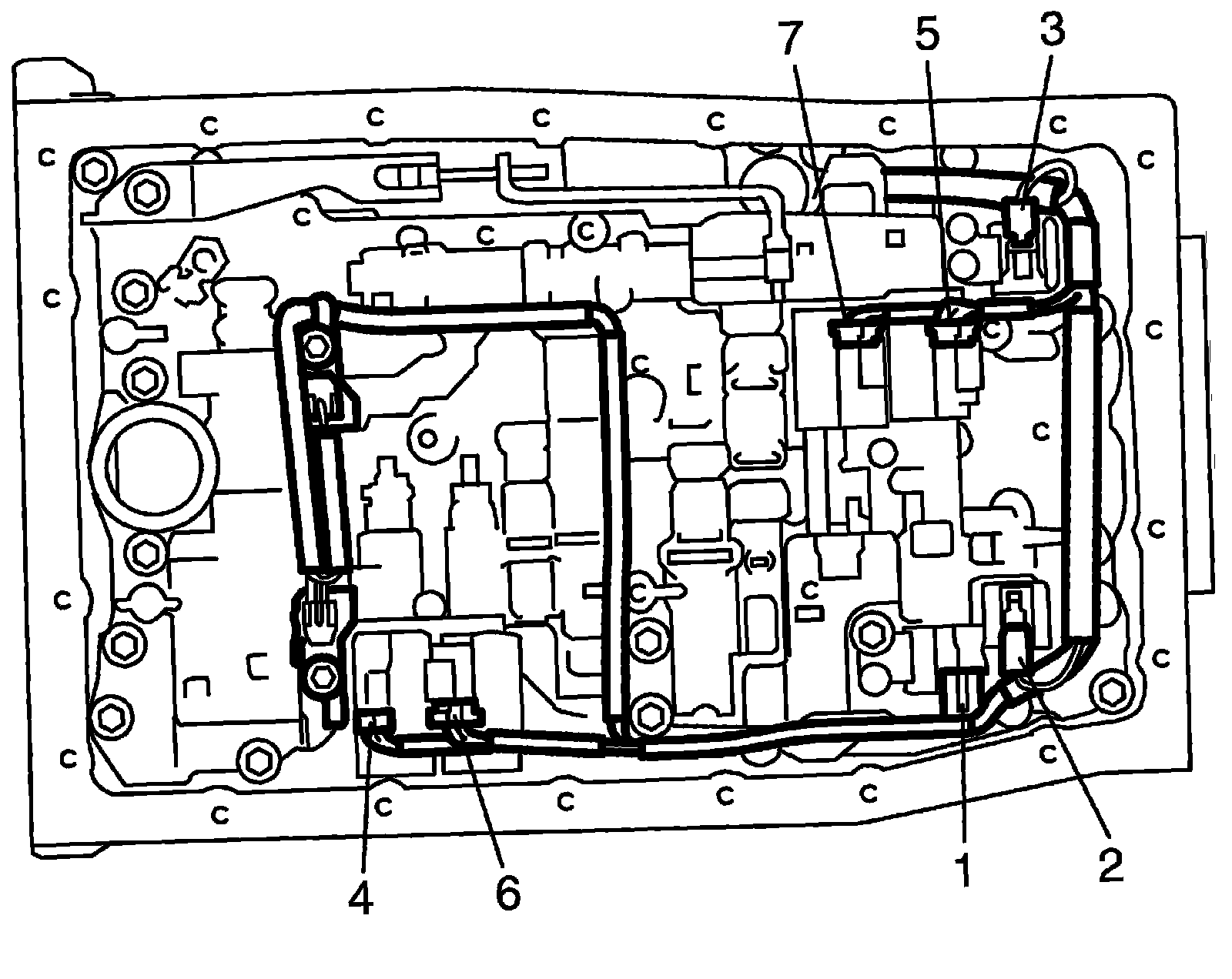

8) Disconnect shift solenoid-A connector (1), shift solenoid-B connector (2), shift solenoid-E connector (3), TCC solenoid connector (4), Pressure control solenoid-A connector (5), Pressure control solenoid-B connector (6) and Pressure control solenoid-C connector (7).
9) Remove solenoid valves.





Installation
Remove removal procedure to install solenoid valves, noting the following points.
^ For details of solenoid valves and their connectors installation, refer to Automatic Transmission Unit Assembly. Use new O-ring.
^ For details of A/T oil pan installation, refer to Automatic Transmission Unit Assembly.
^ Tighten exhaust No.1 pipe bolts & nuts and exhaust bracket bolts & nuts.
^ Fill A/T fluid and check fluid level according to procedure described in A/T Fluid Change.
^ Check for fluid leakage after warming up A/T.
