Select Cable Adjustment

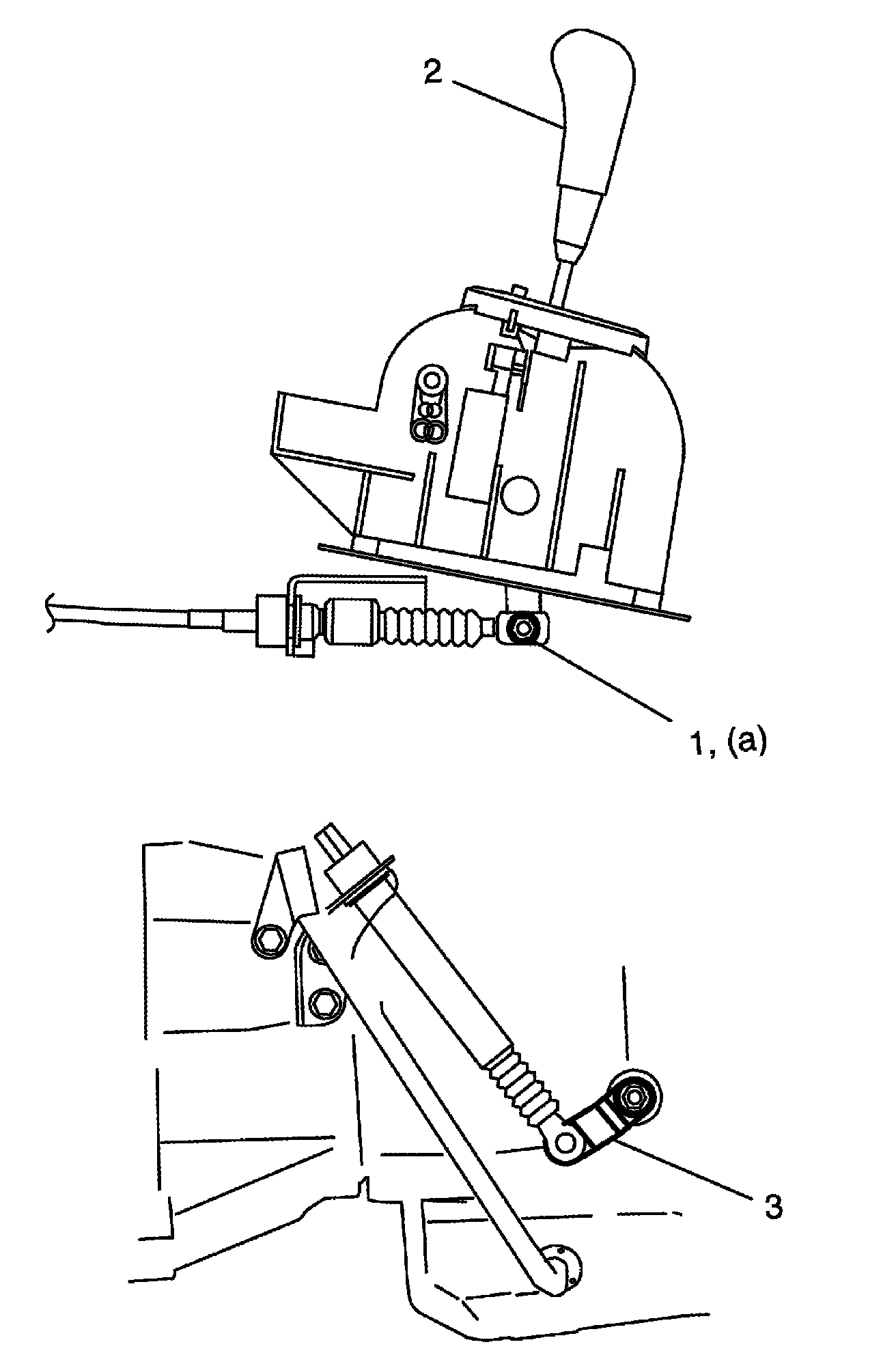

Select Cable Adjustment1) Remove manual selector.
2) Loosen manual select cable end nut (1).
3) Shift select lever (2) and manual select lever (3) to "N".
4) Tighten manual select cable end nut (1) to specified torque.
Tightening torque
Manual select cable end nut (a): 13 Nm (1.3 kg-m 9.5 ft. lb.)
5) After select cable was installed, check for the following.
^ Push vehicle with selector lever shifted to "P". Vehicle should not move.
^ Vehicle can not be driven in "N".
^ Vehicle can be driven in "D", "4" and "L".
^ Vehicle can be backed in "R".
