Exhaust System - Cover Set Availability

Section Title: Engine

TSB No. TS 32 04011

Division: Automotive

Category: Technical

SUBJECT: EXHAUST NO. 1 COVER SET, SPARE PART AVAILABILITY NOTIFICATION

MODEL(S): GRAND VITARA (JB627)

YEAR: 2006-2008

CONDITION:

The cover of the exhaust pipe no. 1 may become damaged, but the integrity of the exhaust pipe is not affected.

CAUSE:

Damage due to rust/corrosion may require that the exhaust cover be replaced.

CORRECTION:

DO NOT replace the Pipe, Exhaust No. 1 assembly! Please replace only the Cover Set, Exhaust No. 1. Please refer to the table below for information to order the required spare parts.

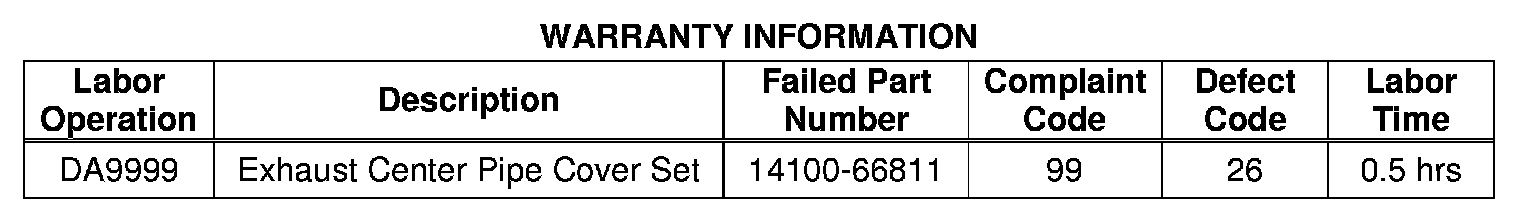

WARRANTY INFORMATION

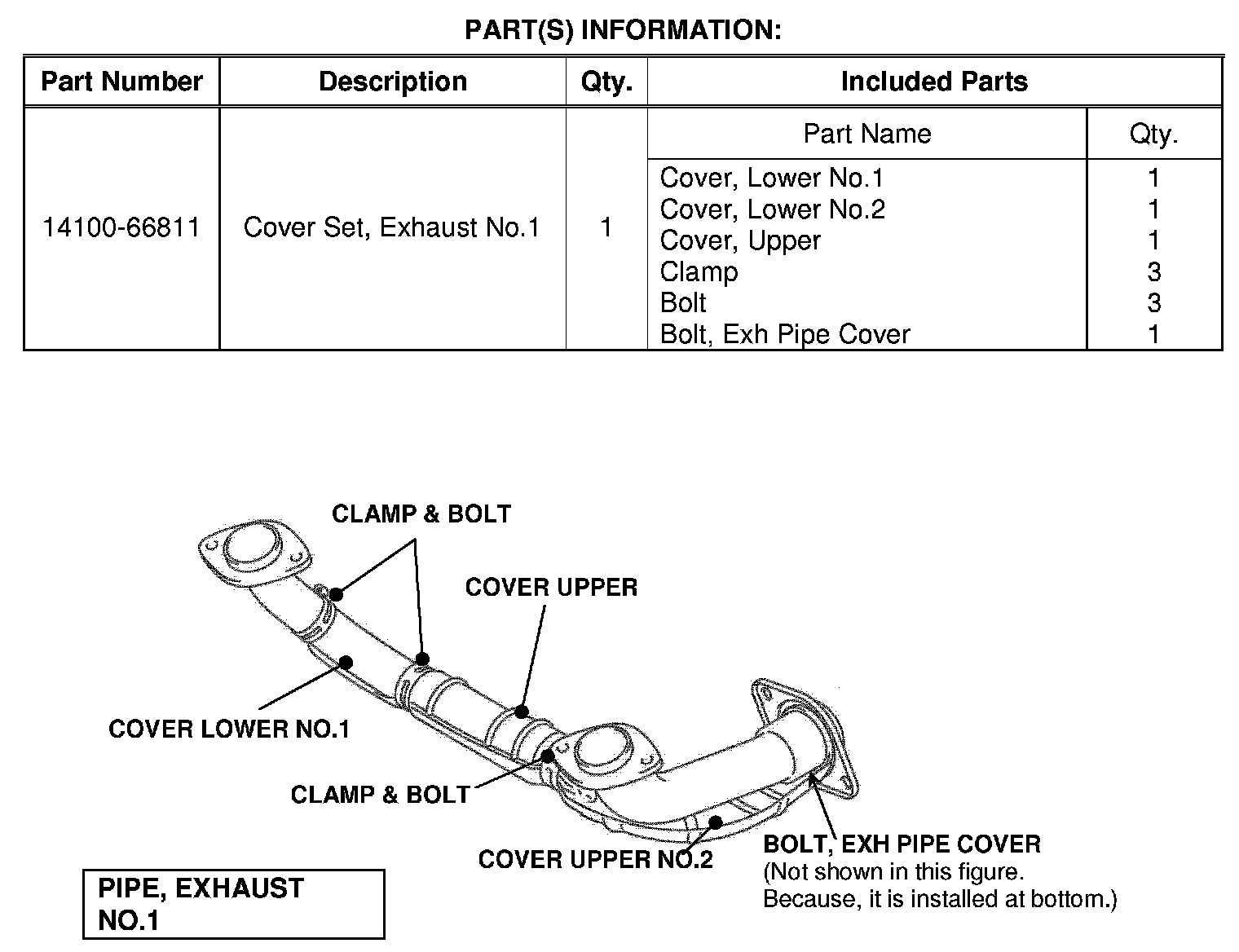

PARTS INFORMATION
