Drivetrain - Revised Driveshaft Removal/Installation

GRAND VITARA

TSB No. TS 09 04092
Section Title: Driveline-Axle-Diff

Category: Technical
Division: Automotive

SUBJECT:
SERVICE MANUAL UPDATE: CORRECTION TO PROPELLER SHAFT REMOVAL AND INSTALLATION

MODEL(S): GRAND VITARA (JB424, JB627, JB632)

YEAR: 2006-2011

CONDITION:

This bulletin is to inform you of the correction of "Propeller Shaft Removal and Installation" described in the following service manual for GRAND VITARA (JB424, JB627, JB632).

CORRECTION:

Please refer to the changes illustrated in the pages shown below that have been made to the service manual section(s) applying to the GRAND VITARA (JB424, JB627, JB632). The following table describes the Service Manual and the corresponding section(s) that have been added/amended. The Online Service Manual has been revised prior to the release of this bulletin. If you have a printed version of the 2006 and/or 2007 Grand Vitara, Service Manual, please print the attached pages and insert them to the appropriate section in your manual.

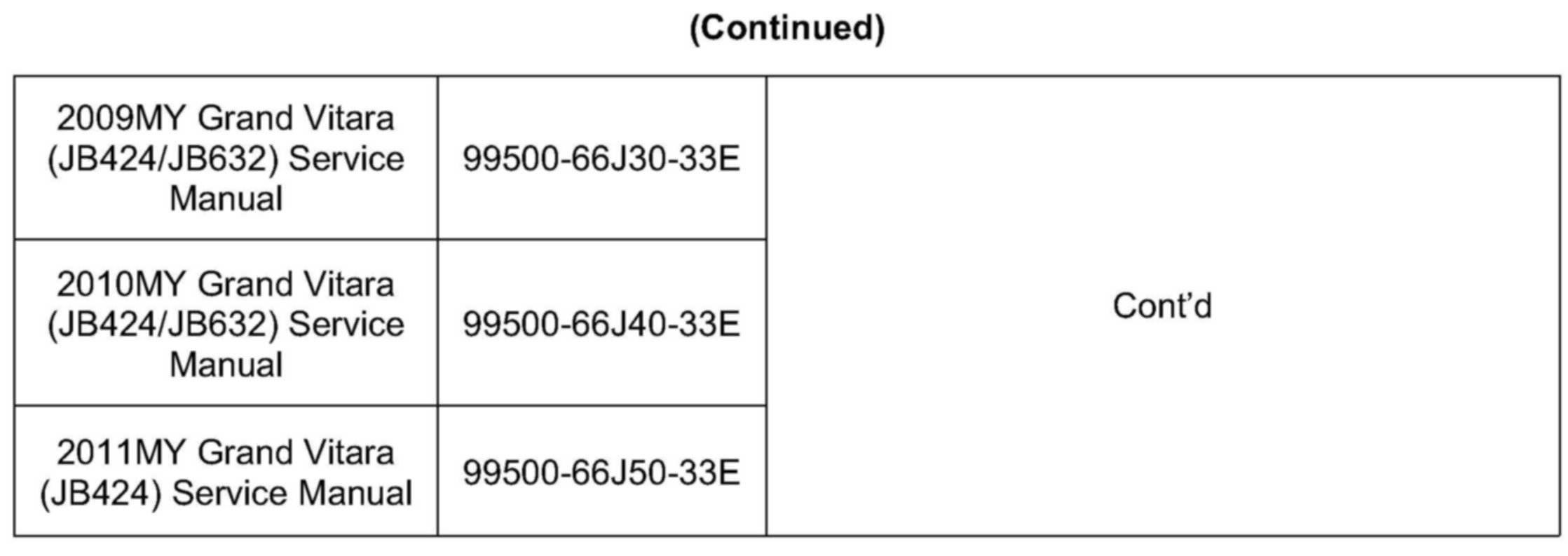

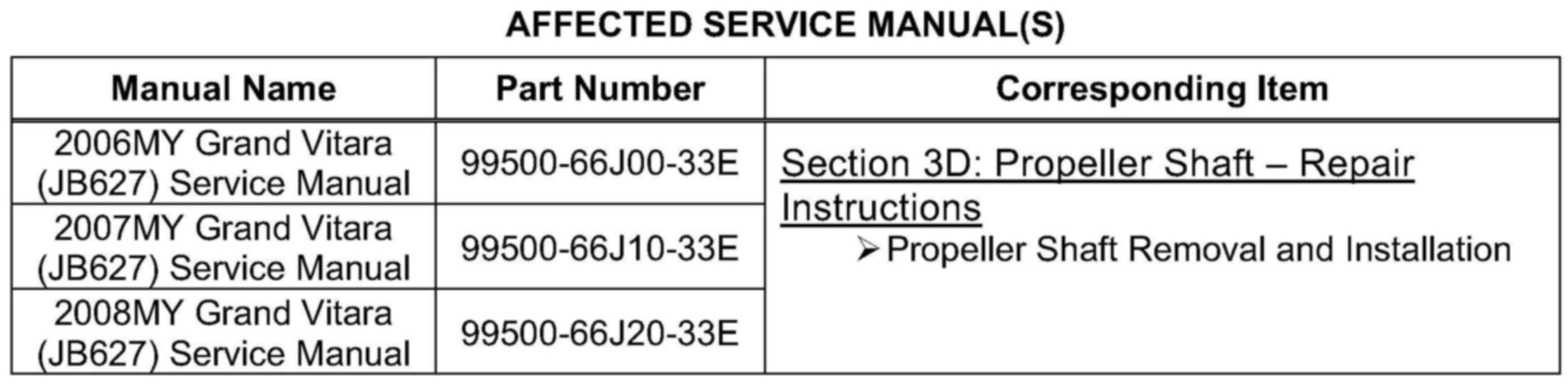

AFFECTED SERVICE MANUAL(S)

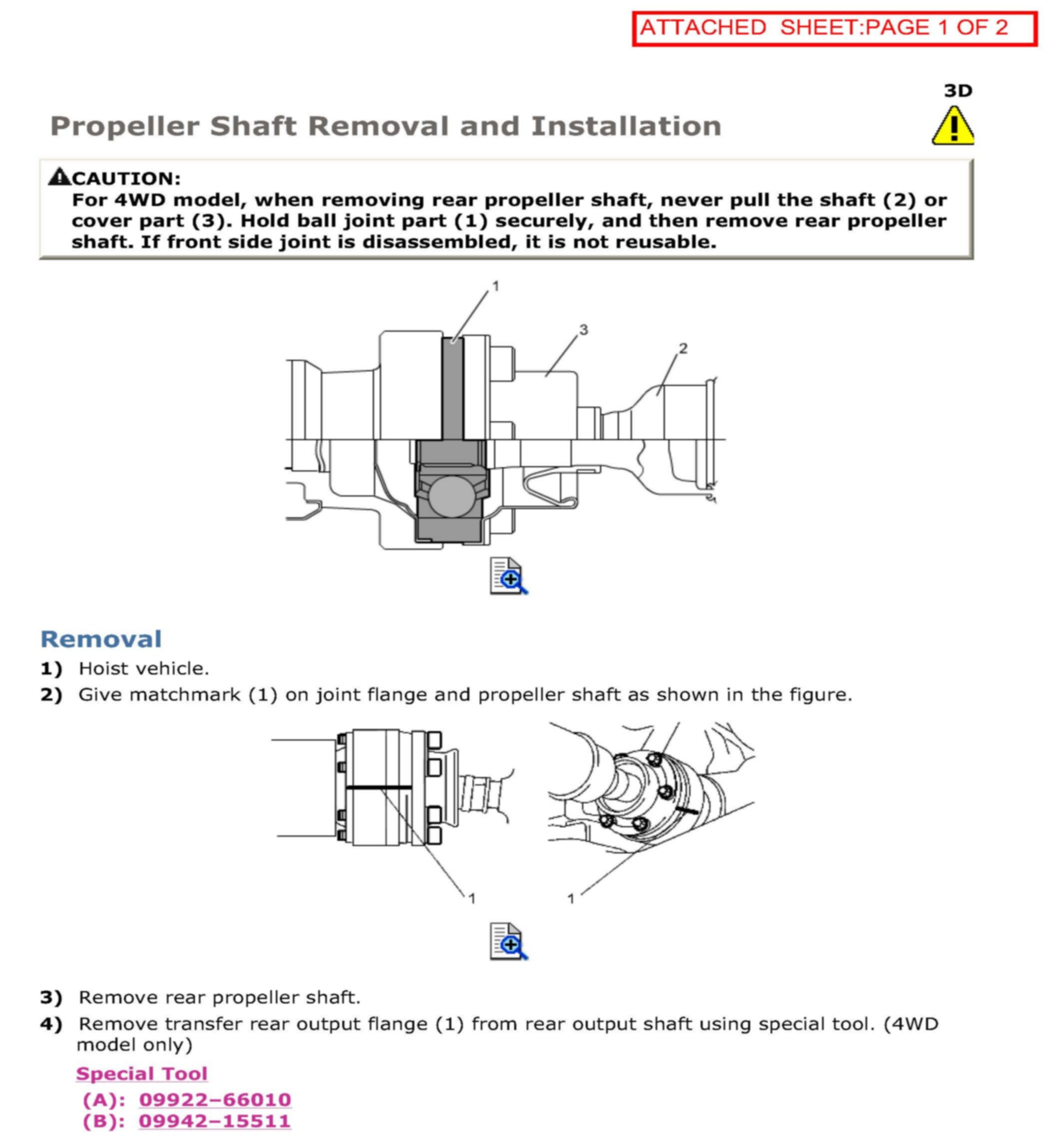

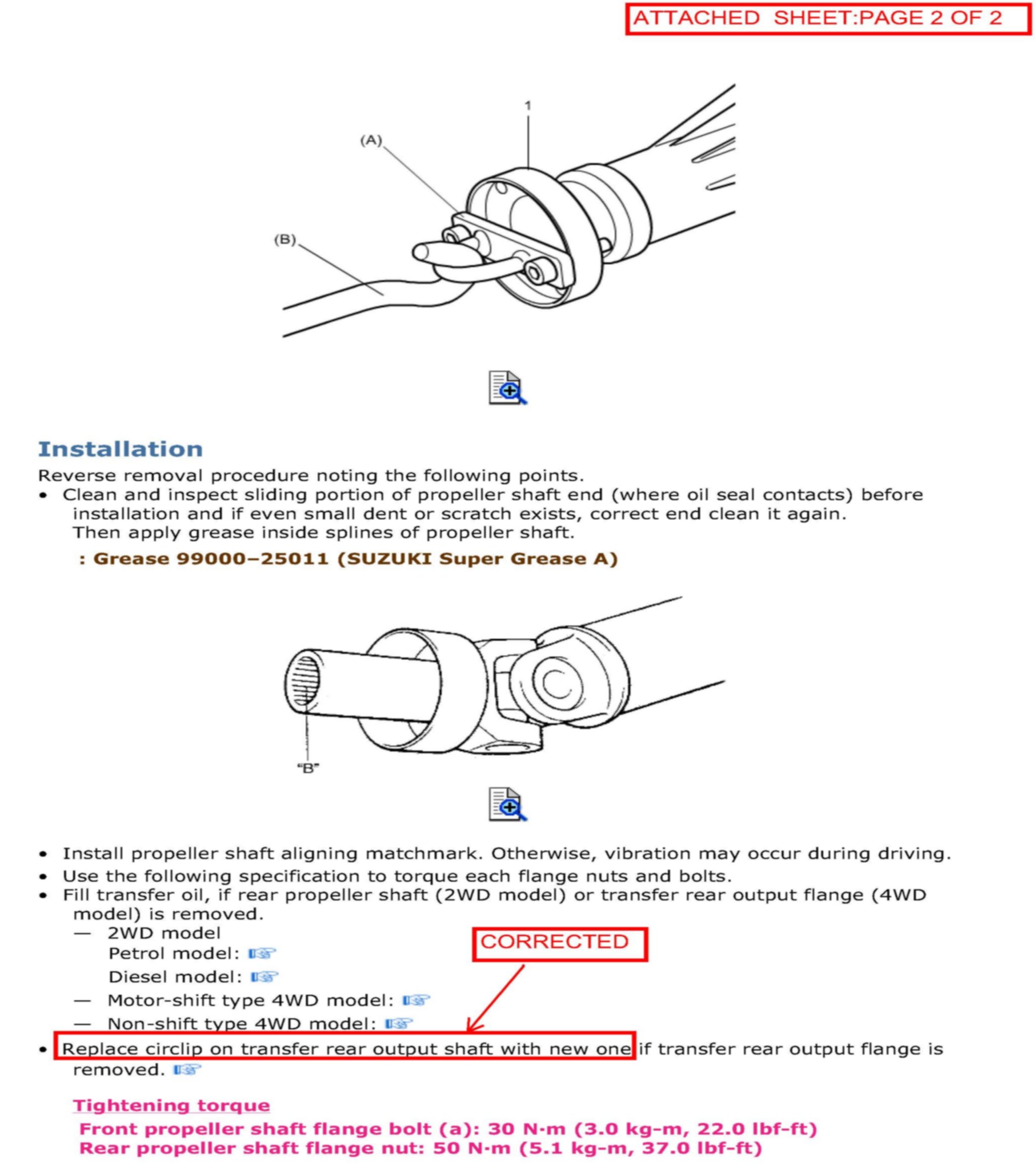

Attachment - Pages 1 and 2
